Thread size (metric) | 8 |
Mounting type conductor | With screw clamp |
Mounting type holder | Bore hole with M thread |
Material of holder | Zinc/steel galvanized |
Assembly height conductor holder, mm | 45 |
Suitable for diameter round conductor, mm | 0...0 |
Material of carrier | Steel galvanised |
Material base part | Steel galvanised |

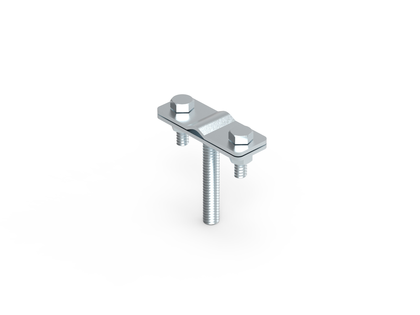

Product type | Insulating bar system |
Application area | conductor holder for insulating bar |
Material | galvanic zinc plated steel |
Threading | M8×45 |
