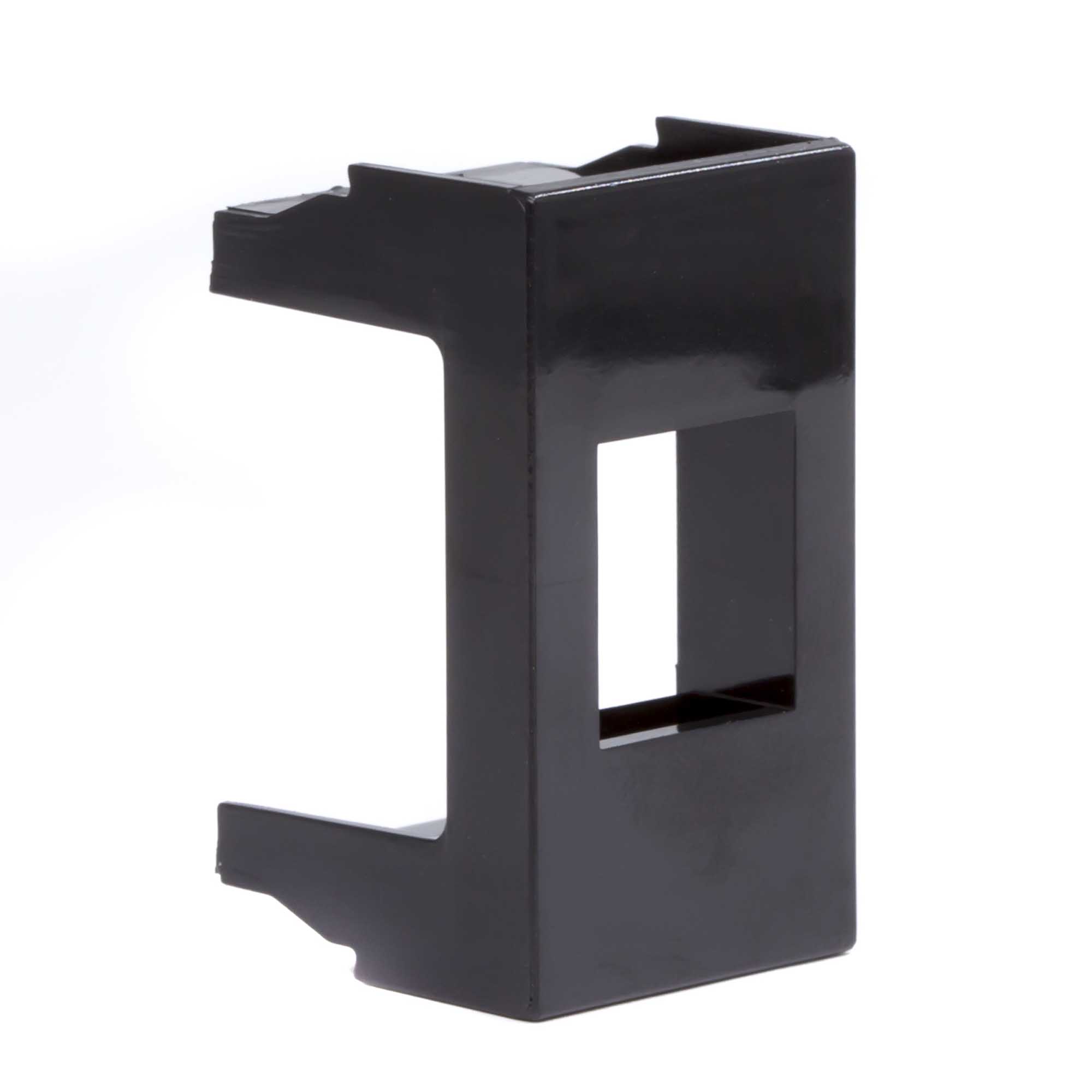

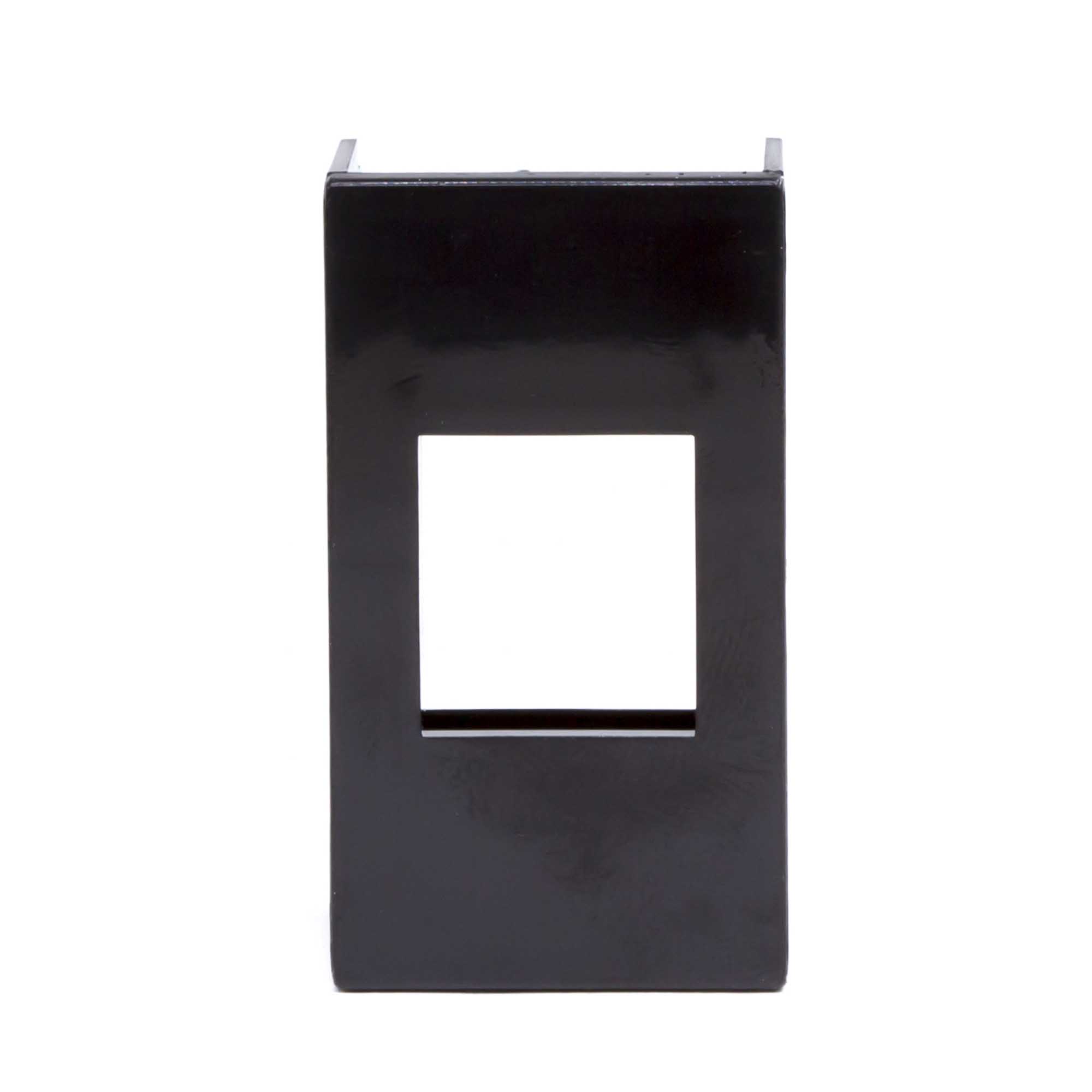

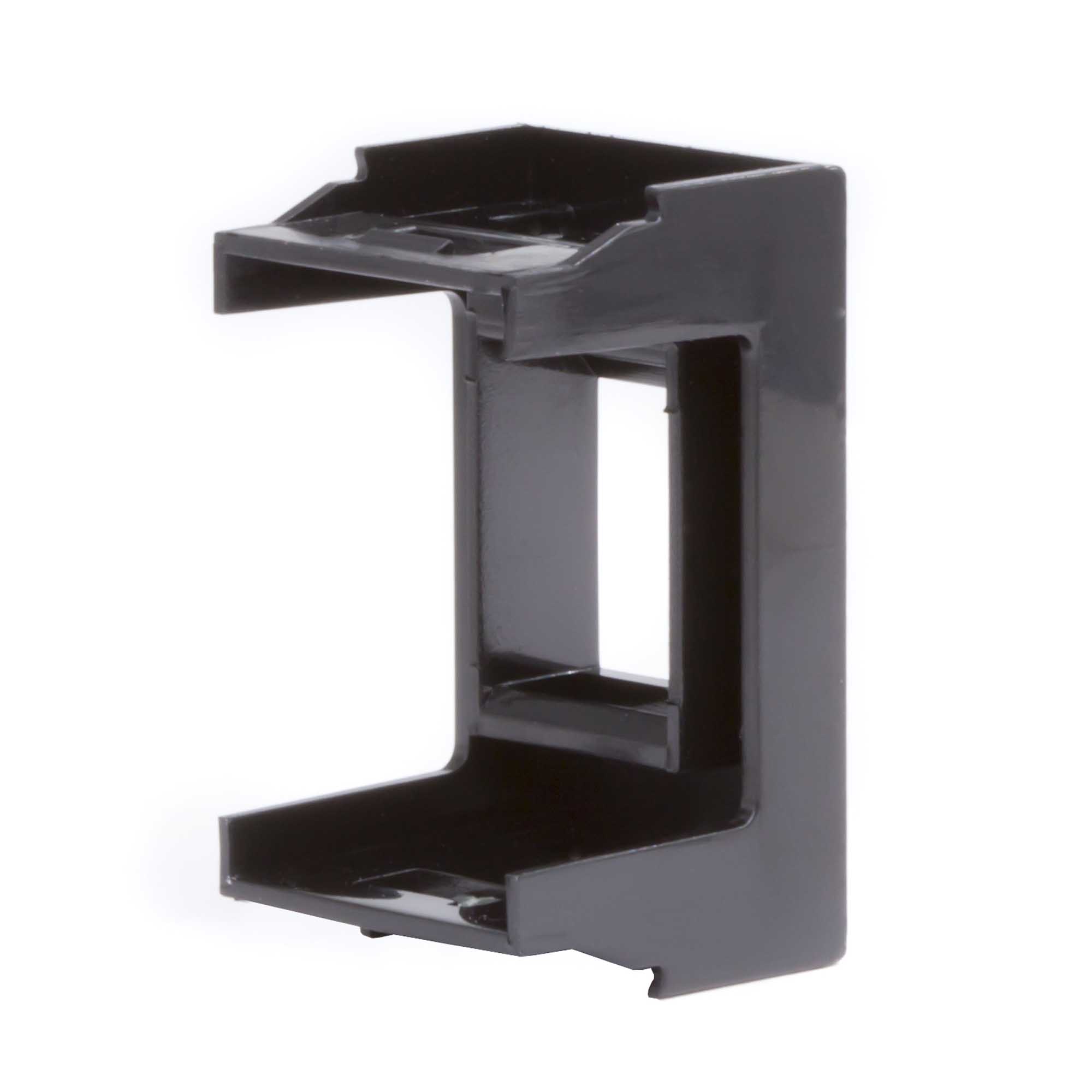

Adapter for jacks KEYSTONE, Viva, 1 mod., black

Code: 45207
Adapter for jacks KEYSTONE, Viva, 1 mod., black
  • To ask a question
Mounting method Surface mounted (plaster)
Assembly arrangement Central cover plate
Colour White
Halogen free Yes
With hinged lid No
Utilization Bore hole
Surface protection Other
Strain relief No
Material quality Other
Material Plastic
Type of fastening Other
Luster terminal No
With dust cover No
With imprint No
Support ring No
Transparent No
Type of surface Matt
Suitable for degree of protection (IP) IP20
Imprintable label Without indication field
Type of connector Other
Number of modules 1
Decoration Декор по эскизу
With buses/couplings Yes
Category Other
Suitable for number of connectors 1
Colour coding No
Color Black
Material of case ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С

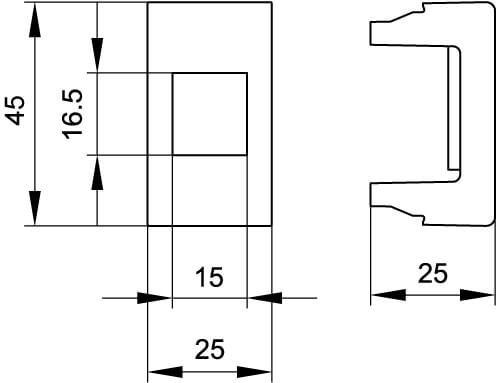

Width (nominal), mm 25
Ingress Protection rating, IP IP20
Temperature of operation, °C ­5°C ... +60°C
Temperature of operation, °C +60°C
Climate version UHL3
Height (nominal), mm 45
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
