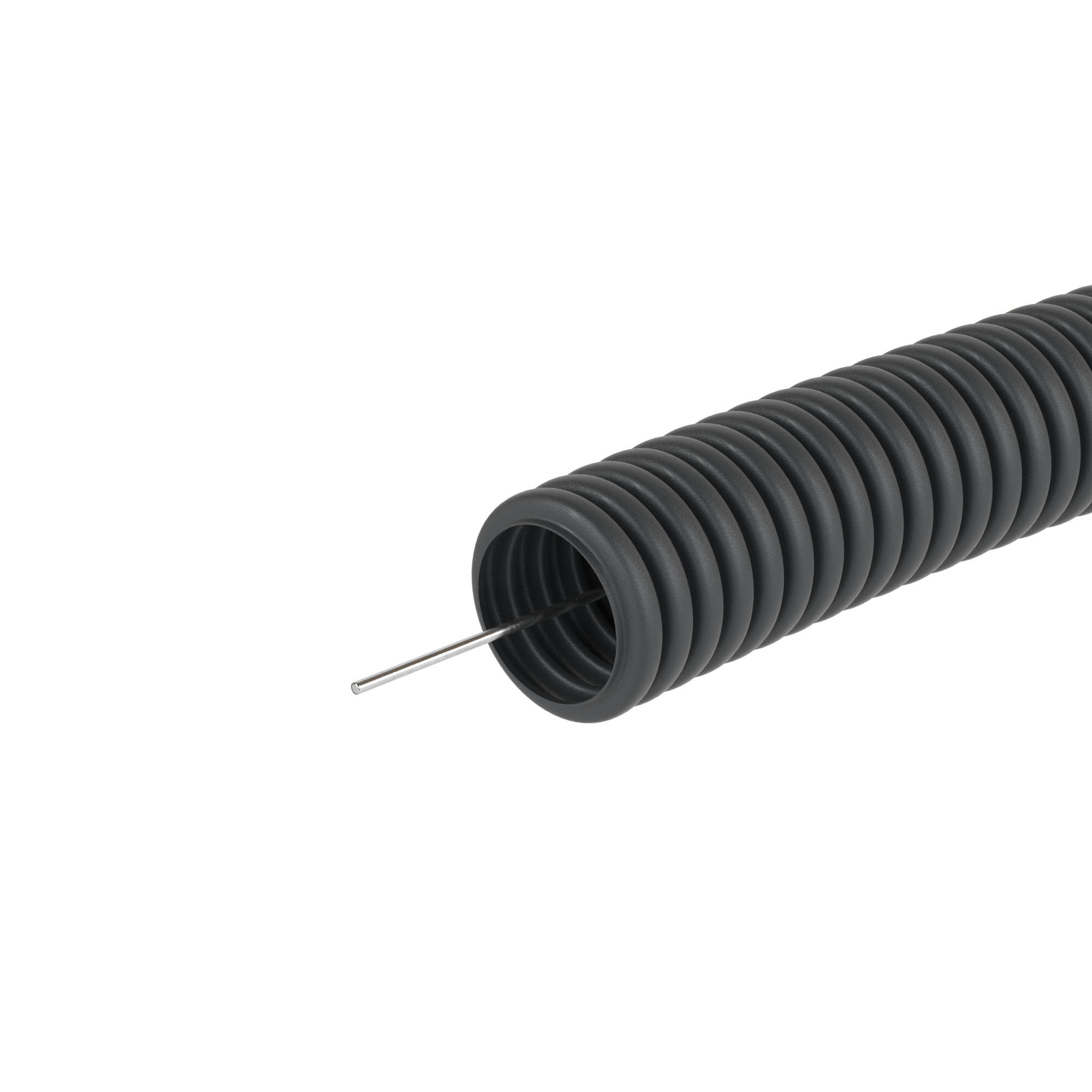

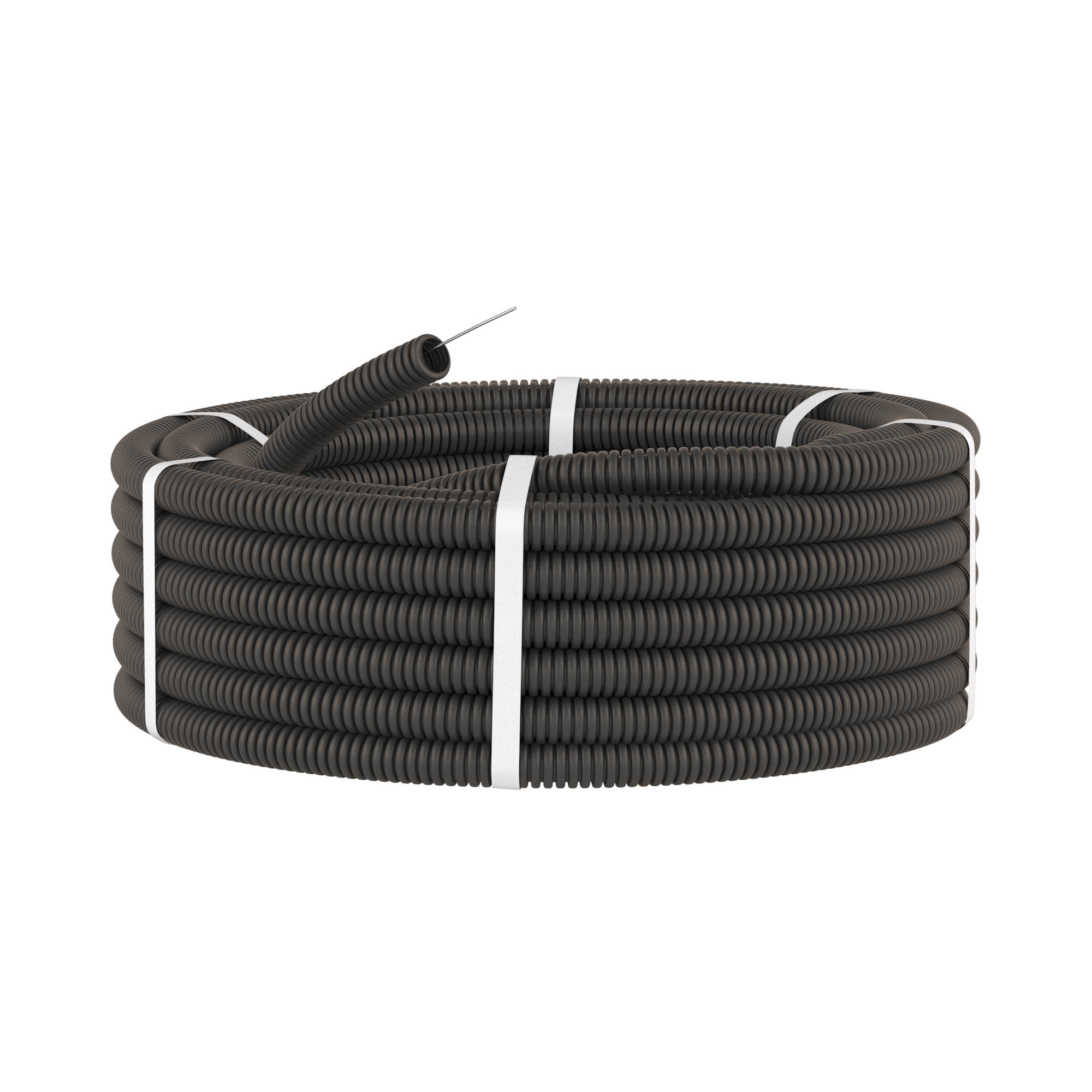

Tube PVC flexible corrugated, ? 25 mm, light version with pull, 50 m, black color
Code: 91925B
Tube PVC flexible corrugated, ? 25 mm, light version with pull, 50 m, black color
Code: 91925B
| Colour | Black |

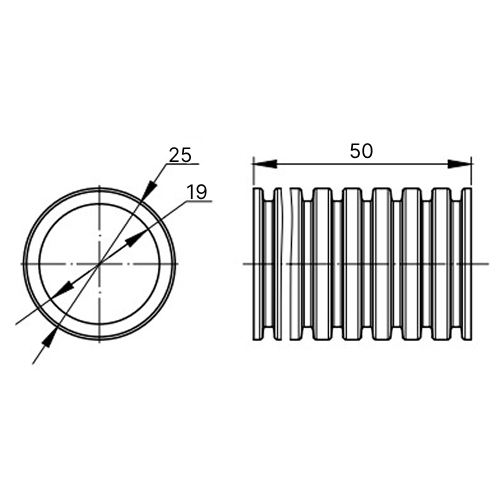

| Outer diameter, mm | 25 |
| UV resistant | No |
| Inner diameter, mm | 19 |
| Compressive strength, N | 350 |
| Operational temperature, °C | -25...60 |
| Bending radius, static, mm | 75 |
| Flame accelerating | No |
| Material | Polyvinyl chloride (PVC) |
| Tensile strength, N | 100 |
| Nominal diameter, mm | 25 |
| Nominal size in inch | 1 inch |
| Degree of protection (IP) | IP55 |
| Bending strength | Flexible |
| Sheathing material | Not sheathed |
| With draw wire | Yes |
| Length, mm | 50000 |
| Temperature of mounting, °C | -5°С ... +60°С |
| Ingress Protection rating, IP | IP55 |
| Temperature of operation, °C | from -25°С to +60°С |
| Shock resistance, J | >0,5 at -25°С |
| Cord for wires | Yes |
| Fire protection | It is not spread combustion (GOST R 53313-2009) |
| Radius of bending (min) , mm | 75 |
| Series | Light |
| ТУ 2248-012-47022248-2009 | Technical specifications 2247-008-47022248-2002 |
| 3 года | 3 years |
| 15 лет | 15 years |
| Product type | Tube PVC flexible corrugated |
