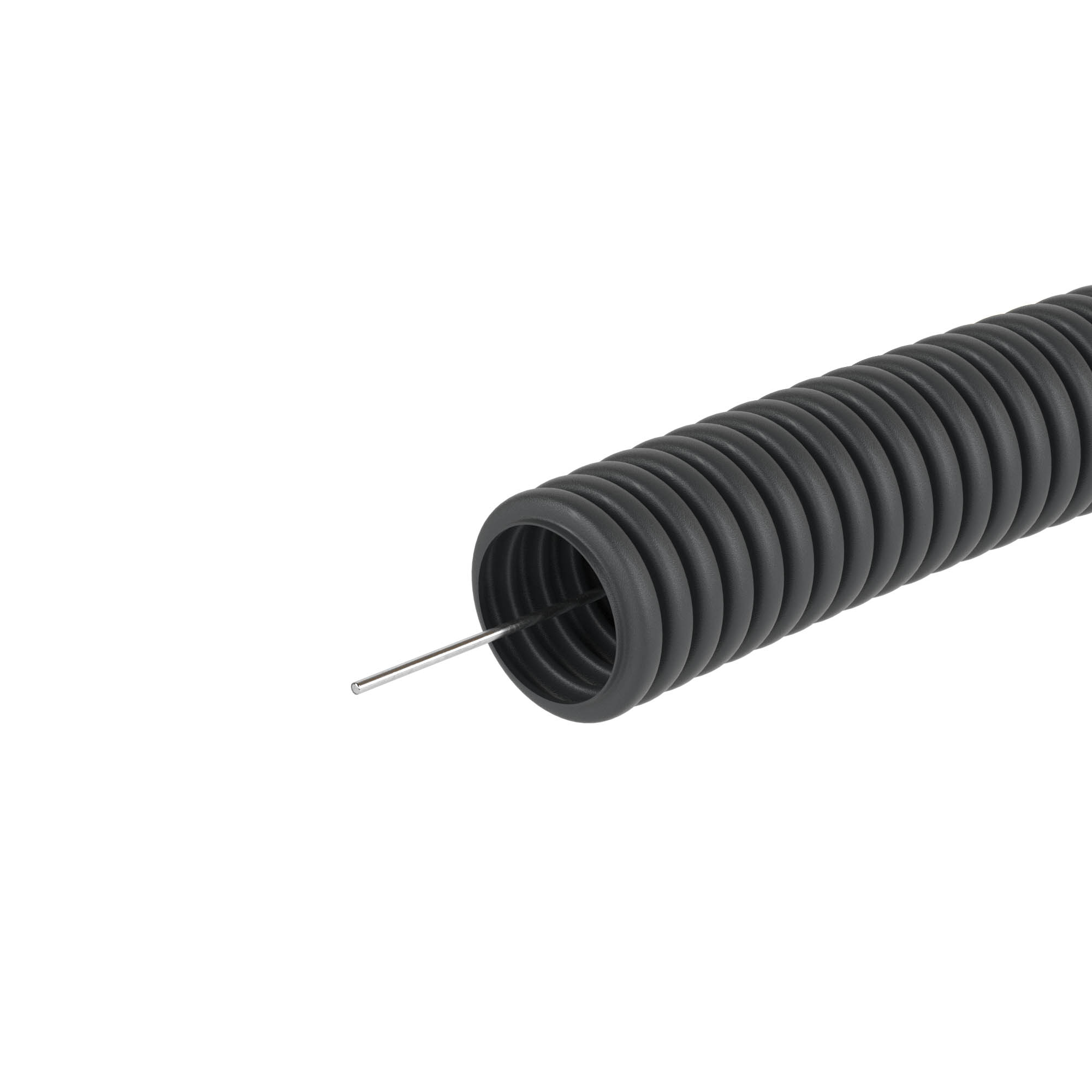

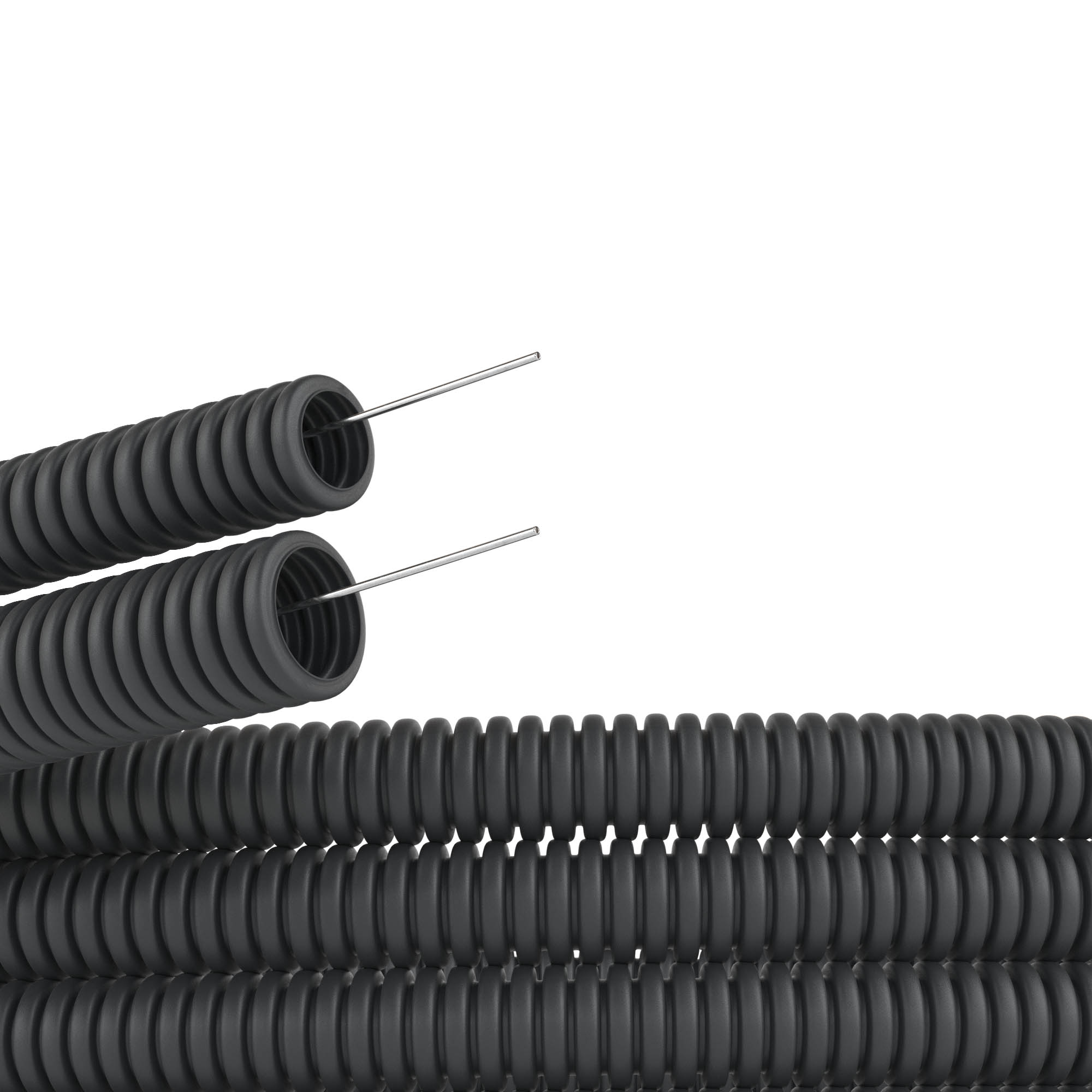

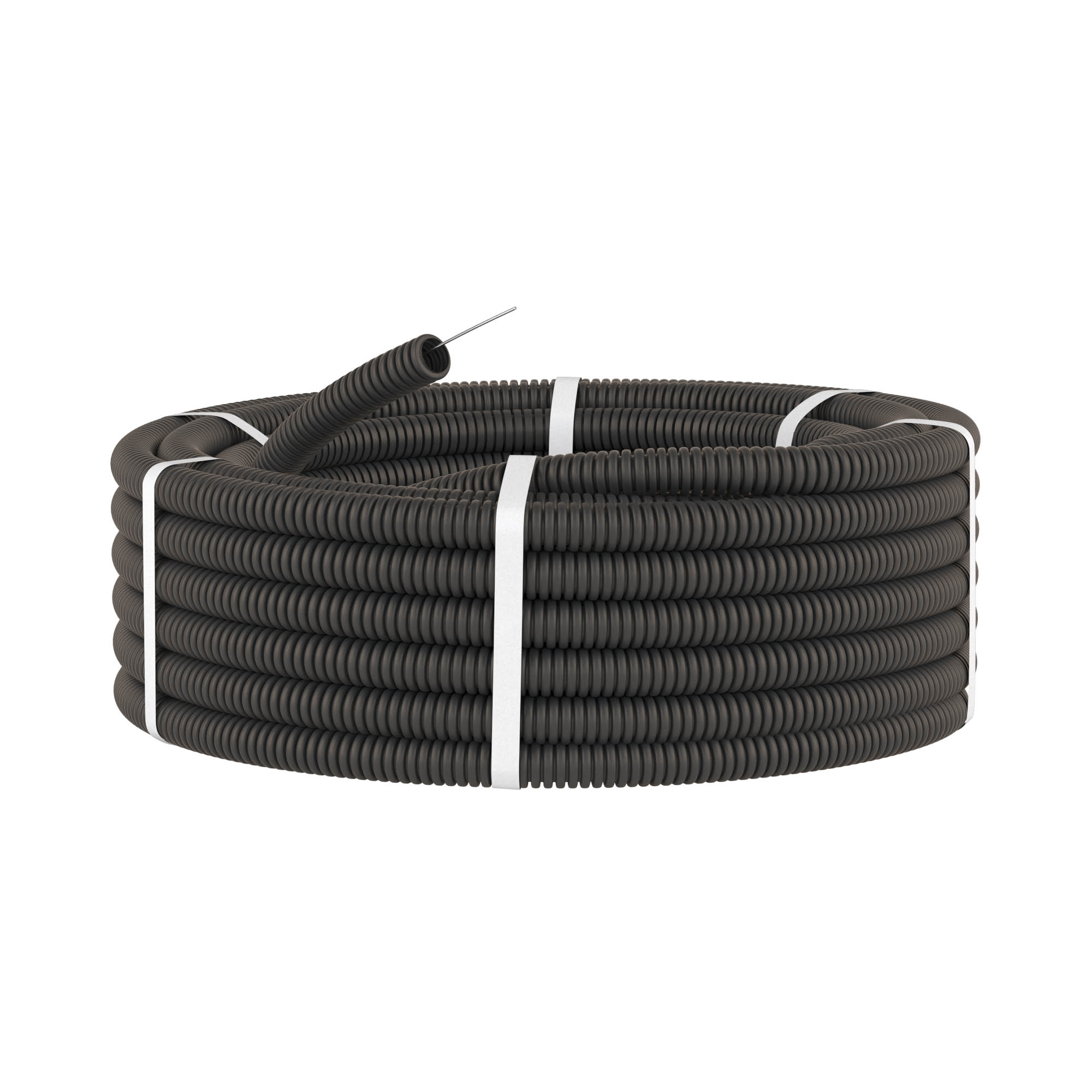

Tube PVC flexible corrugated, ? 16 mm, light version with pull, 100 m, black color

Code: 91916B
Tube PVC flexible corrugated, ? 16 mm, light version with pull, 100 m, black color
  • To ask a question
Colour Black
Outer diameter, mm 16
UV resistant Нет
Inner diameter, mm 11.5
Compressive strength, N 350
Operational temperature, °C - 25…60
Bending radius, static, mm 48
Flame accelerating Нет
Material Polyvinyl chloride (PVC)
Tensile strength, N 100
Nominal diameter, mm 16
Nominal size in inch 5/8 inch
Degree of protection (IP) IP55
Bending strength Flexible
Lengthwise slotted Нет
Sheathing material Not sheathed
Length, mm 100000
Temperature of mounting, °C -5°С ... +60°С
Ingress Protection rating, IP IP55
Temperature of operation, °C from -25°С to +60°С
Shock resistance, J >0,5 at -25°С
Cord for wires Yes
Fire protection It is not spread combustion (GOST R 53313-2009)
Radius of bending (min) , mm 48
Сверхтяжелая Light
ТУ 2248-012-47022248-2009 Technical specifications 2247-008-47022248-2002
3 года 3 years
15 лет 15 years
Product type Tube PVC flexible corrugated
