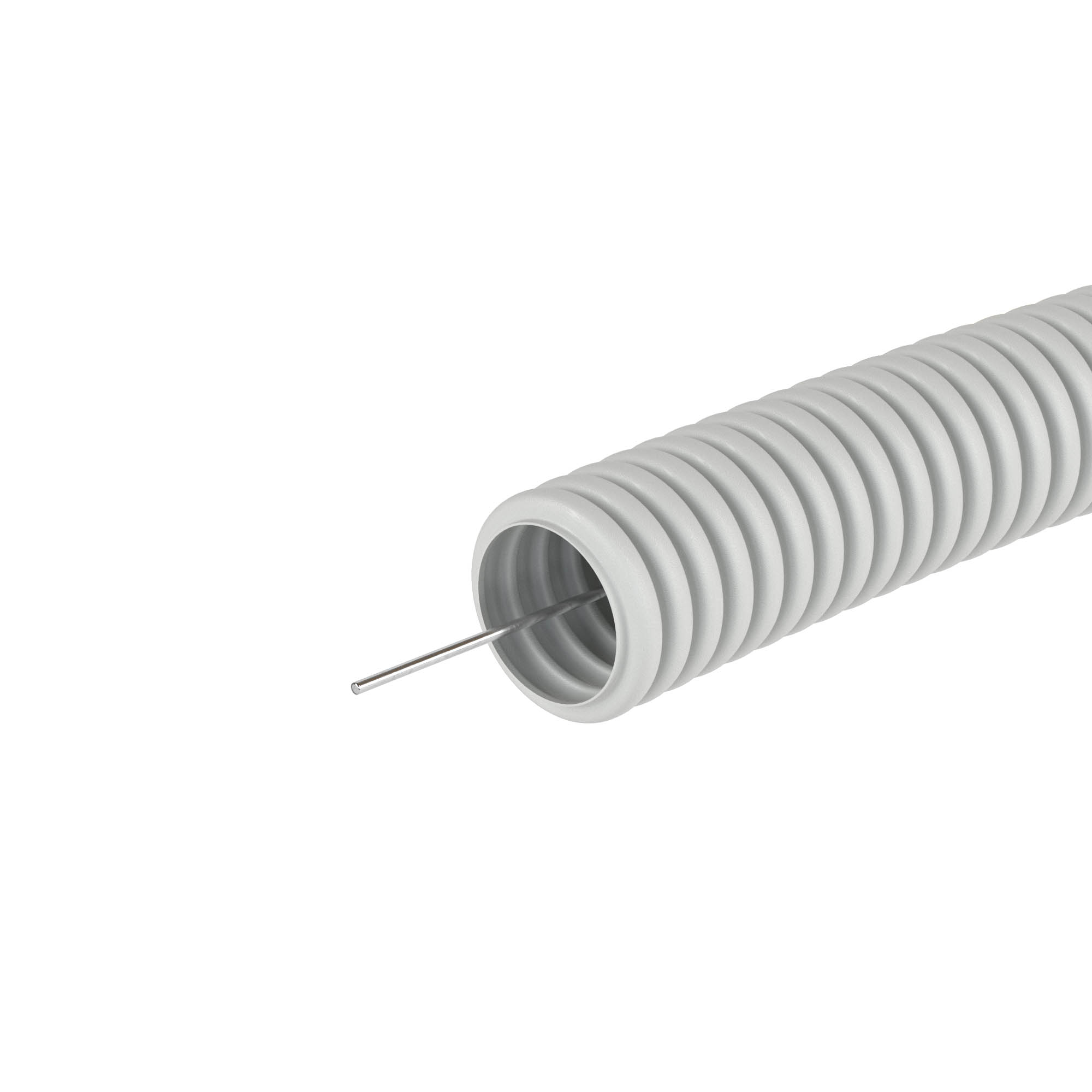

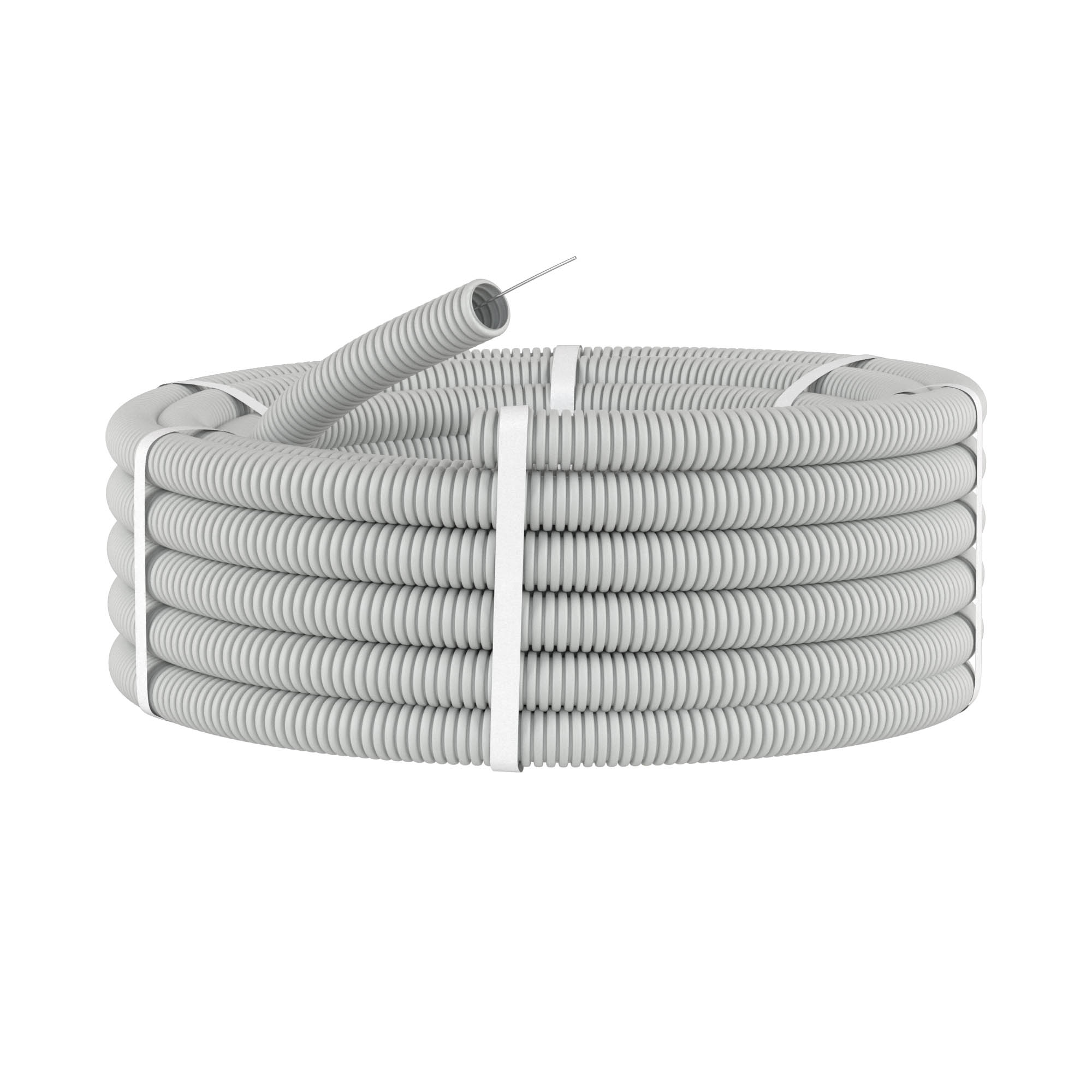

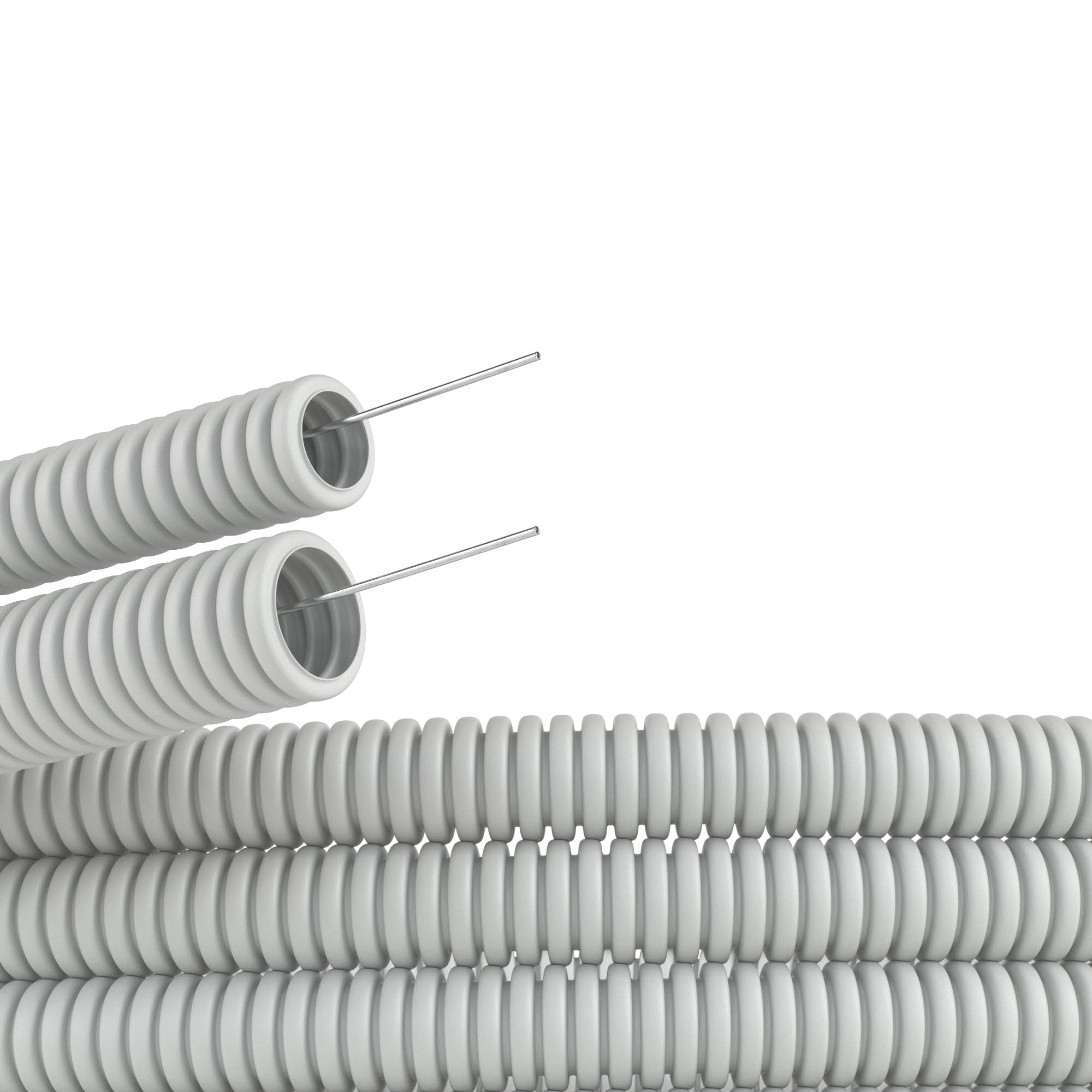

Tube PVC flexible corrugated, ? 16 mm, light version with pull, 25 m, grey color

Code: 9191625

Tube PVC flexible corrugated, ? 16 mm, light version with pull, 25 m, grey color

Code: 9191625
Colour Grey

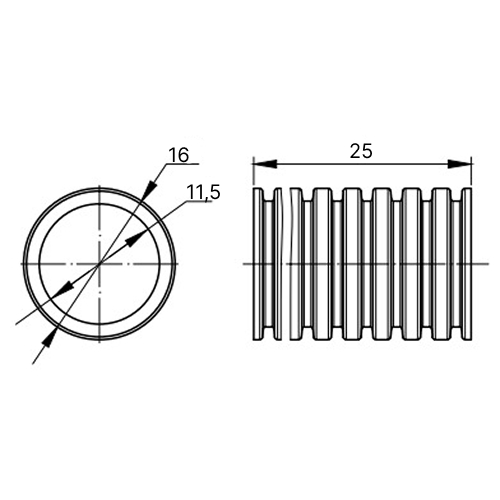

Outer diameter, mm 16
UV resistant No
Inner diameter, mm 11.5
Compressive strength, N 350
Operational temperature, °C -25...60
Bending radius, static, mm 48
Flame accelerating No
Material Polyvinyl chloride (PVC)
Tensile strength, N 100
Nominal diameter, mm 16
Nominal size in inch 5/8 inch
Degree of protection (IP) IP55
Bending strength Flexible
Sheathing material Not sheathed
With draw wire Yes
Length 25000 mm
8 диаметров мм 48 mm
-5°С ... +60°С -5°С ... +60°С
Ingress Protection rating, IP IP55
от -25°С до +60°С from -25°С to +60°С
Shock resistance, J >0,5 at -25°С
Cord for wires Yes
Fire protection It is not spread combustion (GOST R 53313-2009)
Series Light
ТУ 2248-012-47022248-2009 Technical specifications 2247-008-47022248-2002
3 года 3 years
15 лет 15 years
Product type Tube PVC flexible corrugated
