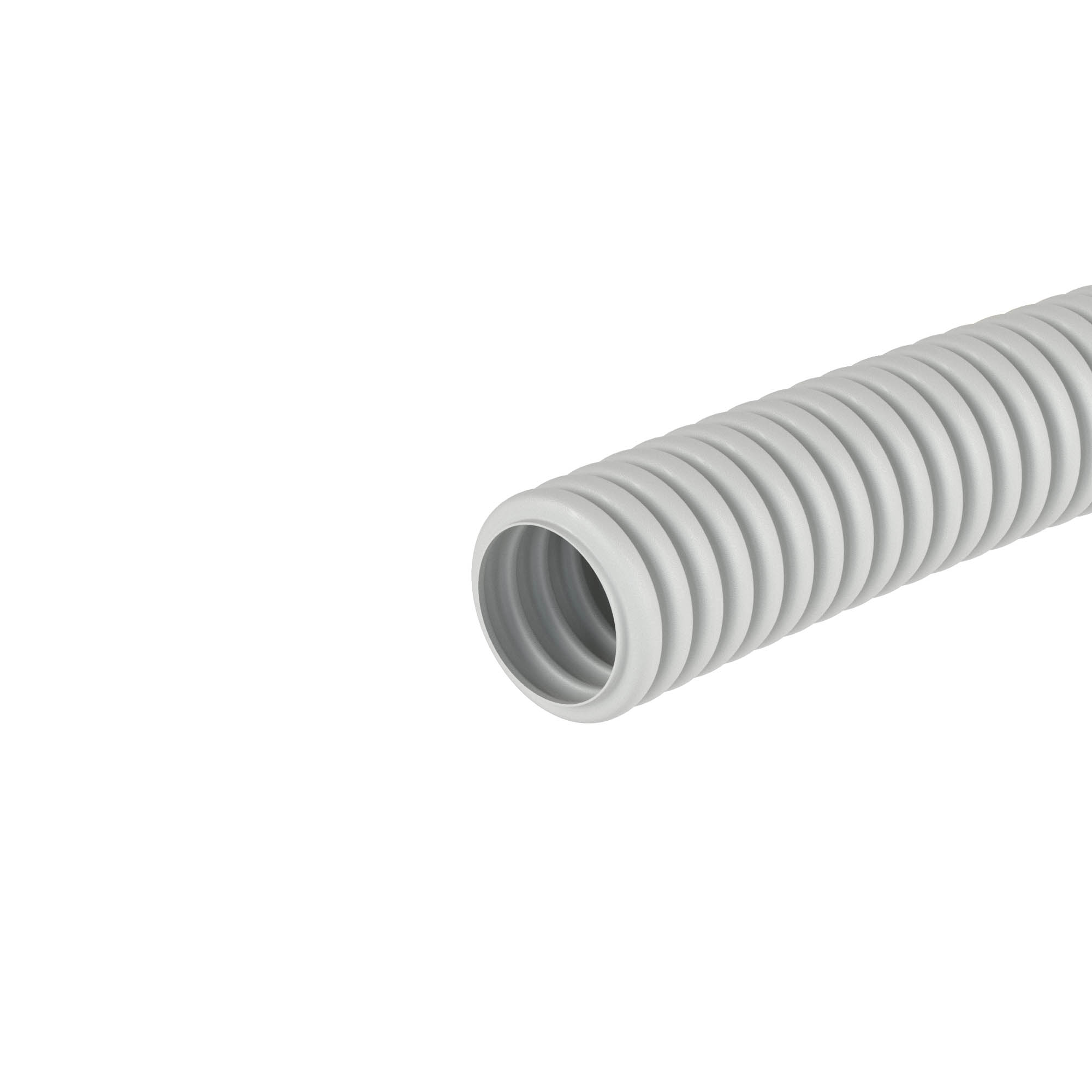

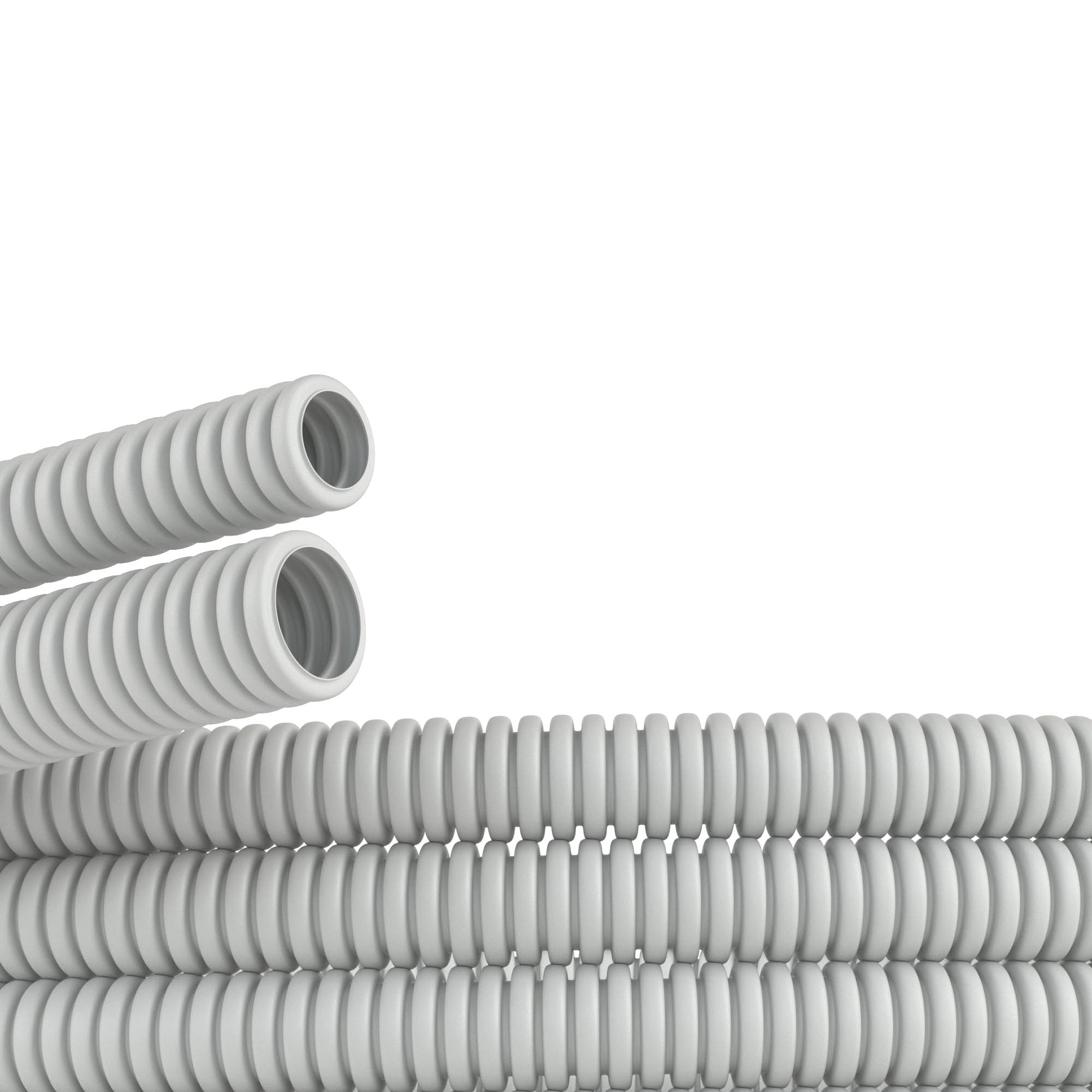

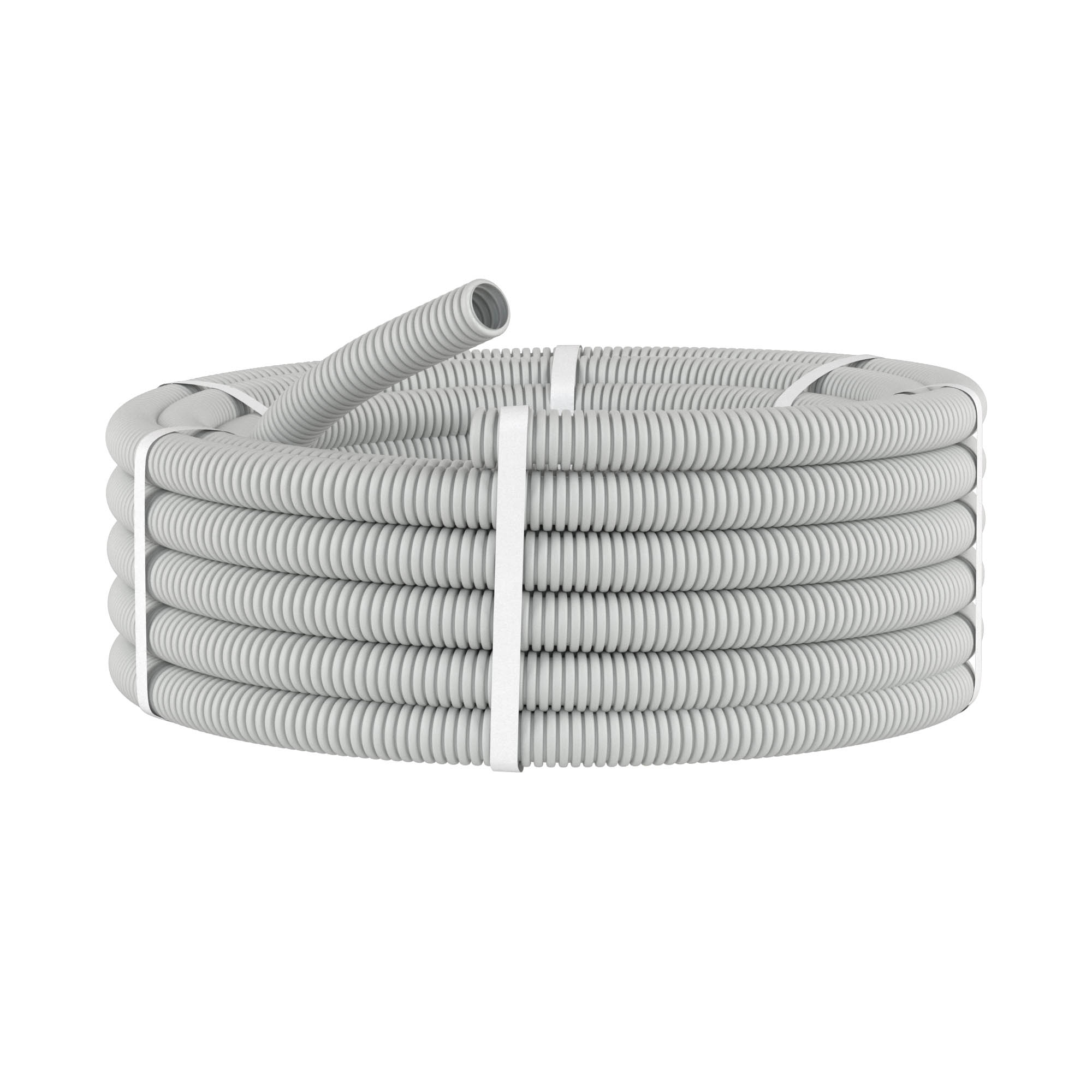

Tube PVC flexible corrugated, ? 20 mm, heavy version without pull, 100 m, grey color
Code:
90520
Tube PVC flexible corrugated, ? 20 mm, heavy version without pull, 100 m, grey color
Code:
90520
Colour | Grey |

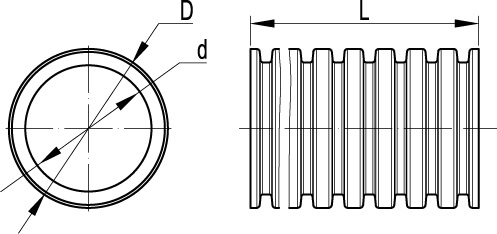

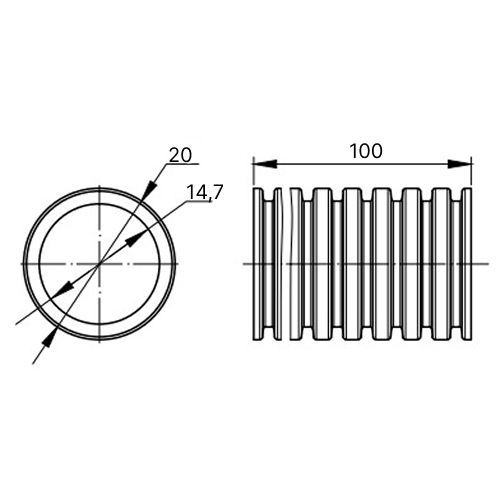

Outer diameter, mm | 20 |
UV resistant | No |
Inner diameter, mm | 14.7 |
Compressive strength, N | 750 |
Operational temperature, °C | -25...60 |
Bending radius, static, mm | 60 |
Flame accelerating | No |
Material | Polyvinyl chloride (PVC) |
Tensile strength, N | 100 |
Nominal diameter, mm | 20 |
Nominal size in inch | 3/4 inch |
Degree of protection (IP) | IP55 |
Bending strength | Flexible |
Sheathing material | Not sheathed |
With draw wire | No |
Length | 100 m |
8 диаметров мм | 60 mm |
-5°С ... +60°С | -5°С ... +60°С |
Ingress Protection rating, IP | IP55 |
от -25°С до +60°С | from -25°С to +60°С |
Shock resistance, J | >1 at -25°С |
Cord for wires | No |
Fire protection | It is not spread combustion (GOST R 53313-2009) |
Series | Heavy |
ТУ 2248-012-47022248-2009 | Technical specifications 2247-008-47022248-2002 |
3 года | 3 years |
15 лет | 15 years |
Product type | Tube PVC flexible corrugated |
