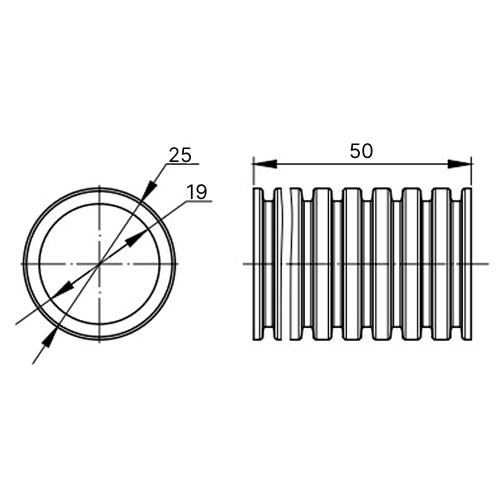

Tube HDPE flexible corrugated, ? 25 mm, light version with pull, 50 m, black color

Code: 71725
Tube HDPE flexible corrugated, ? 25 mm, light version with pull, 50 m, black color
  • To ask a question
Colour Black
UV resistant No
Inner diameter, mm 19.0
Compressive strength, N 125
Operating temperature, °C - 40...90
Bending radius, static, mm 75
Material Polyethylene
Tensile strength, N 200
Nominal diameter, mm 25
Nominal size in inch 1 inch
Degree of protection (IP) IP55
Bending strength Flexible
Lengthwise slotted No
Sheathing material Not sheathed
Outer diameter, mm 25
Length 50000 mm
8 диаметров мм 75 mm
-5°С ... +60°С -40°С ... +90°С
Ingress Protection rating, IP IP55
от -25°С до +60°С from -40°С to +90°С
Shock resistance, J >2 at -40°С
Cord for wires Yes
Сверхтяжелая Light
ТУ 2248-012-47022248-2009 Technical specifications 3491-011-47022248-2003
3 года 3 years
15 лет 15 years
Product type Tube HDPE flexible corrugated
