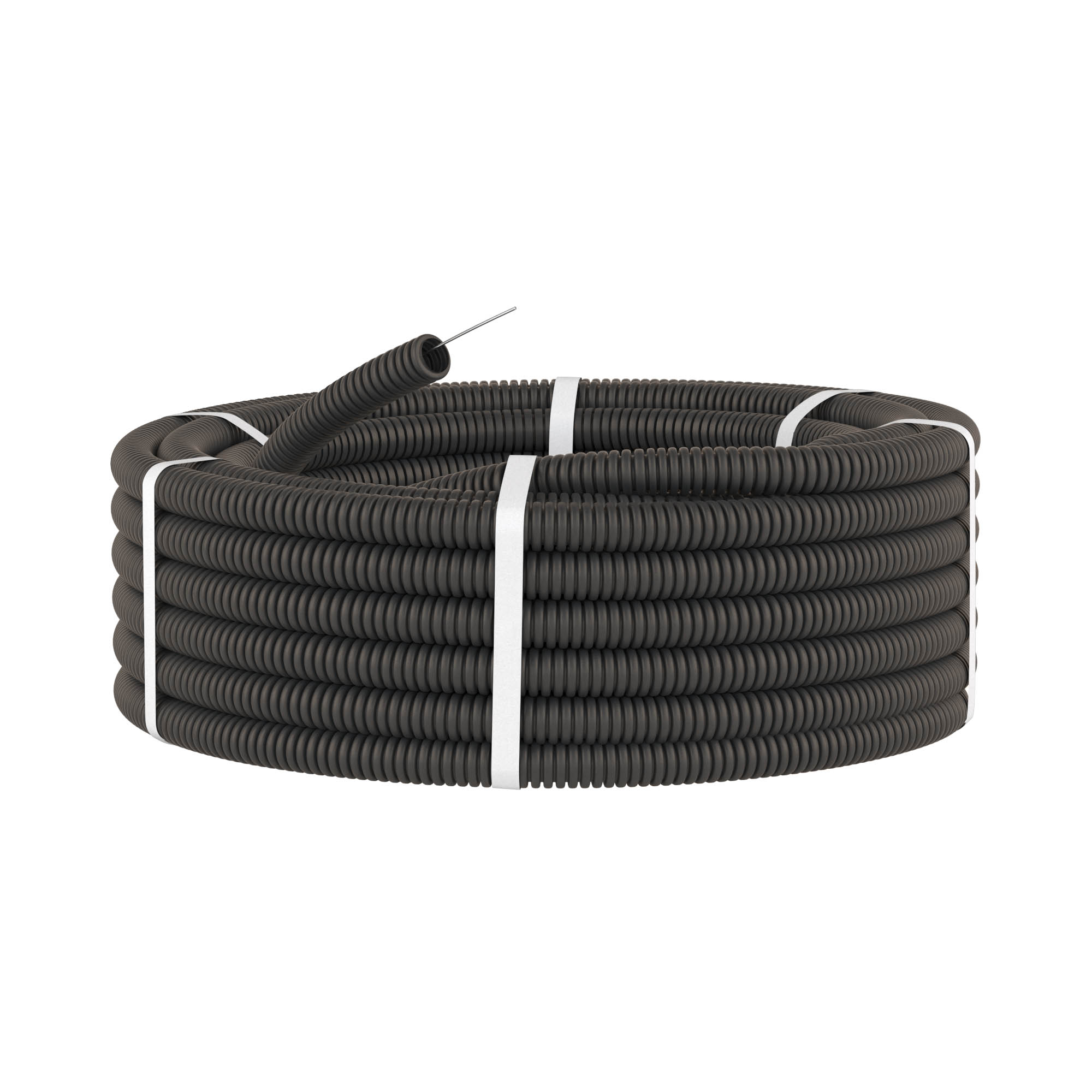

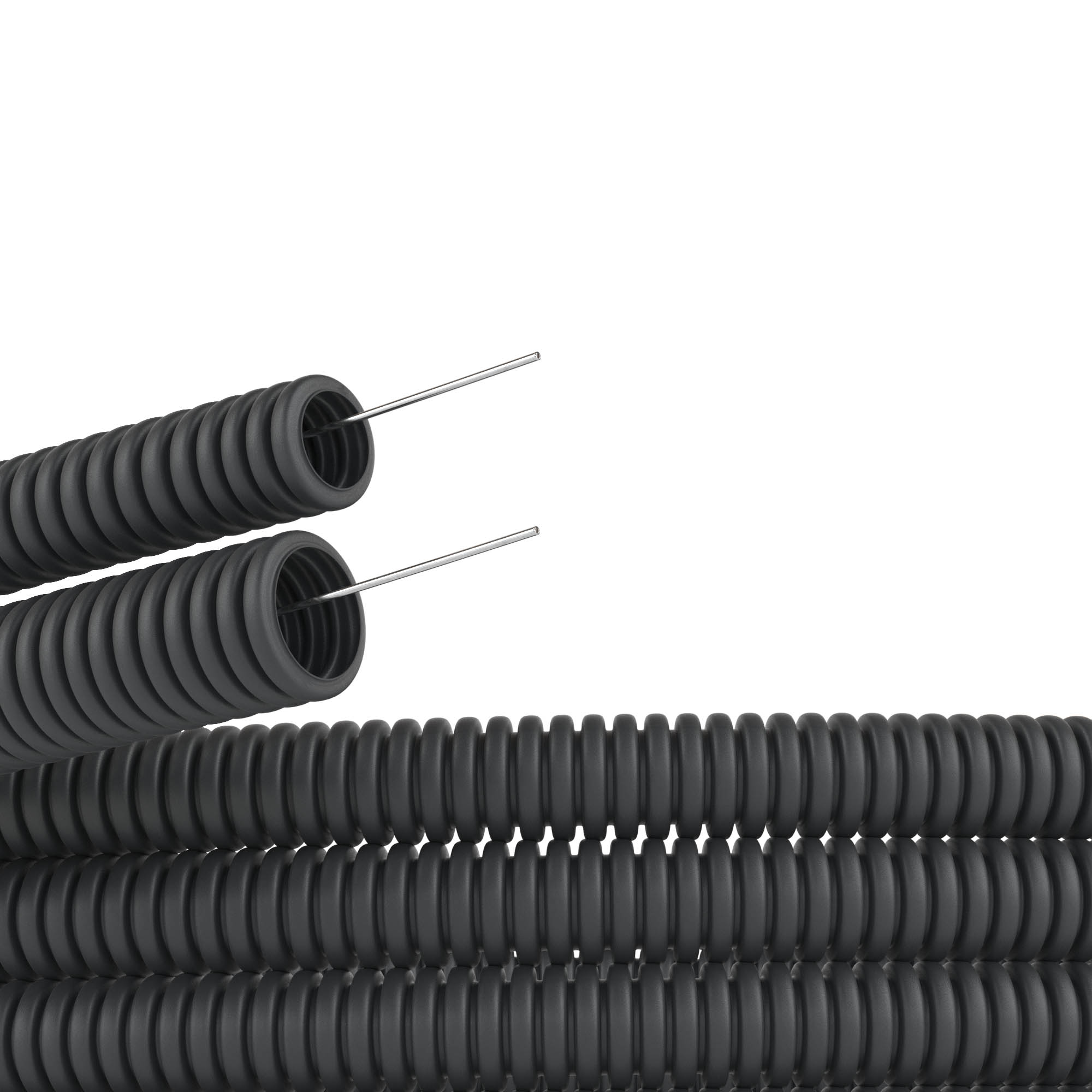

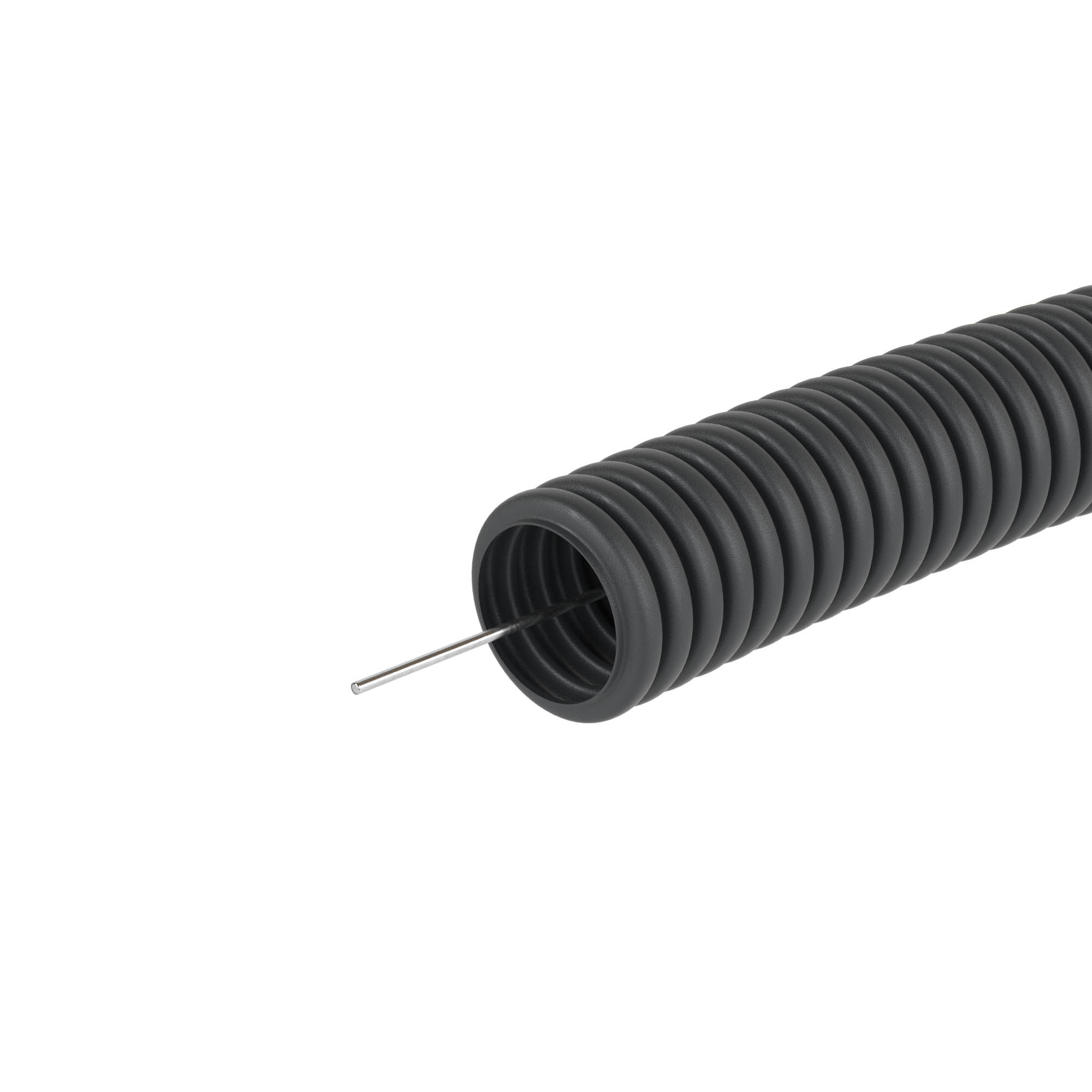

Tube HDPE flexible corrugated, ? 20 mm, light version with pull, 100 m, black color

Code: 71720

Tube HDPE flexible corrugated, ? 20 mm, light version with pull, 100 m, black color

Code: 71720
Colour Black
UV resistant Yes

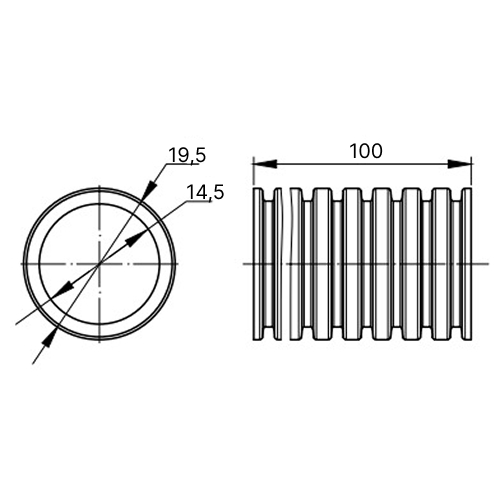

Inner diameter, mm 14.5
Compressive strength, N 125
Operational temperature, °C -40...90
Bending radius, static, mm 60
Material Polyethylene
Tensile strength, N 200
Nominal diameter, mm 20
Nominal size in inch 3/4 inch
Degree of protection (IP) IP55
Bending strength Flexible
Lengthwise slotted Yes
Sheathing material Not sheathed
Outer diameter, mm 19.5
Length 100000 mm
8 диаметров мм 60 mm
-5°С ... +60°С -40°С ... +90°С
Ingress Protection rating, IP IP55
от -25°С до +60°С from -40°С to +90°С
Shock resistance, J >2 at -40°С
Cord for wires Yes
Series Light
ТУ 2248-012-47022248-2009 Technical specifications 3491-011-47022248-2003
3 года 3 years
15 лет 15 years
Product type Tube HDPE flexible corrugated
