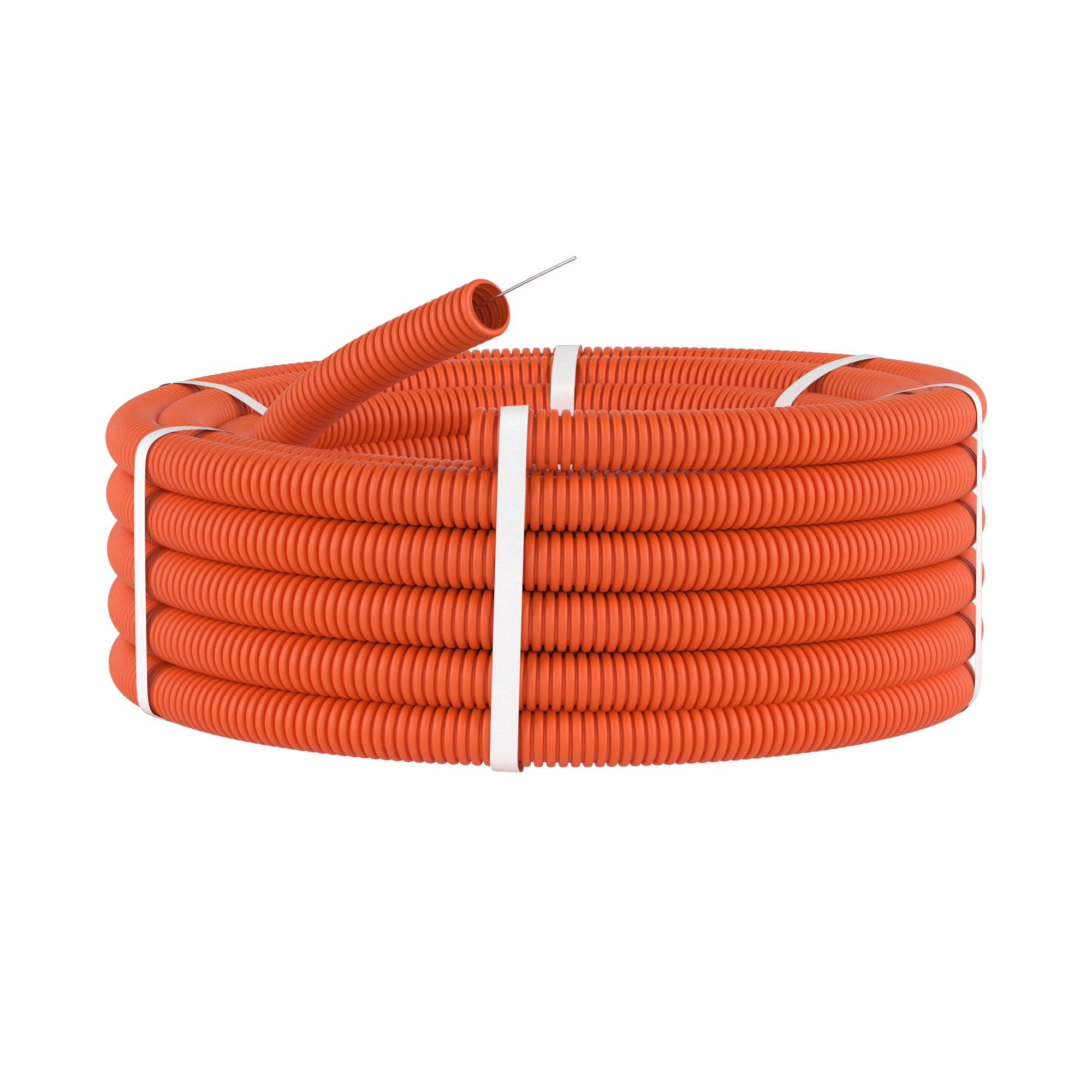

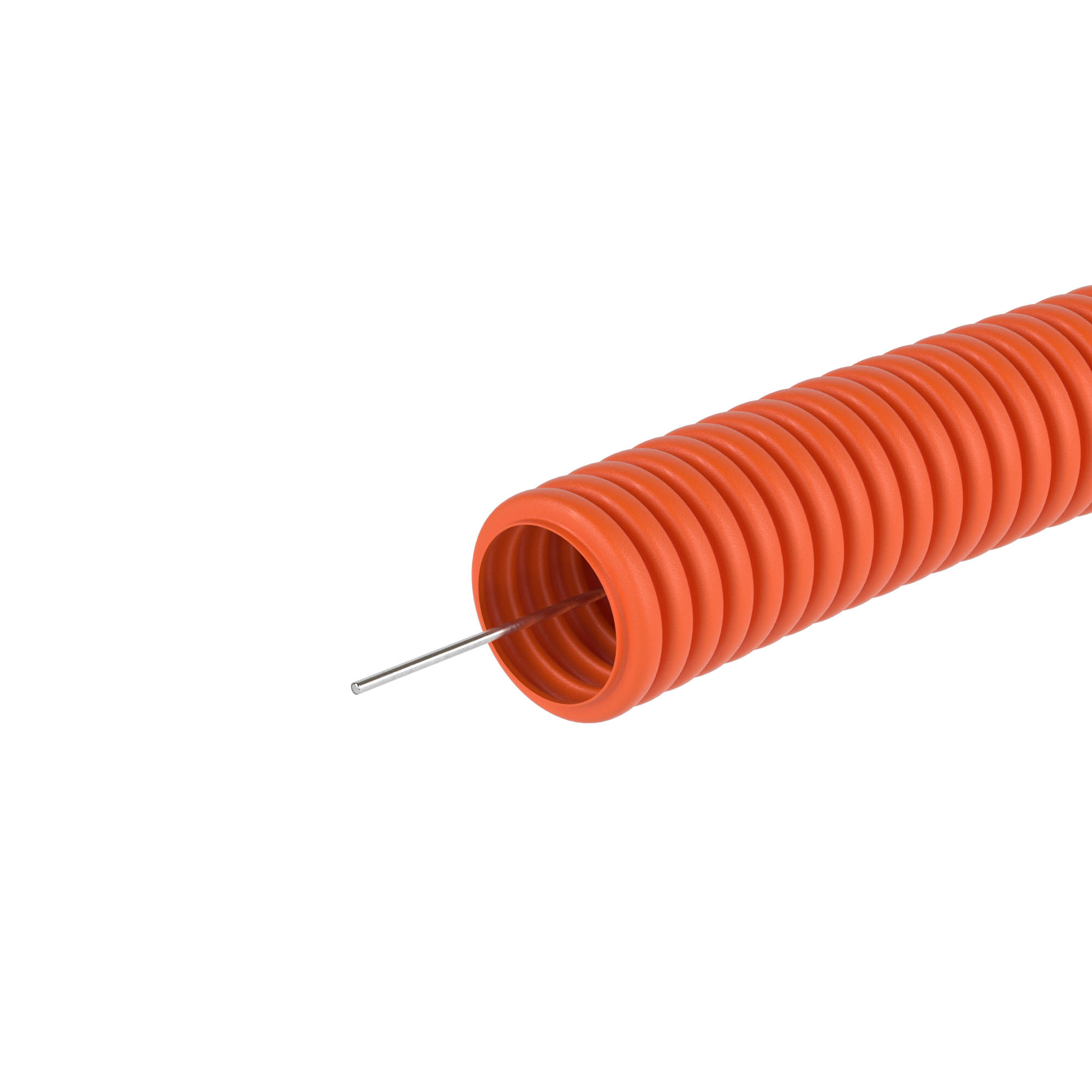

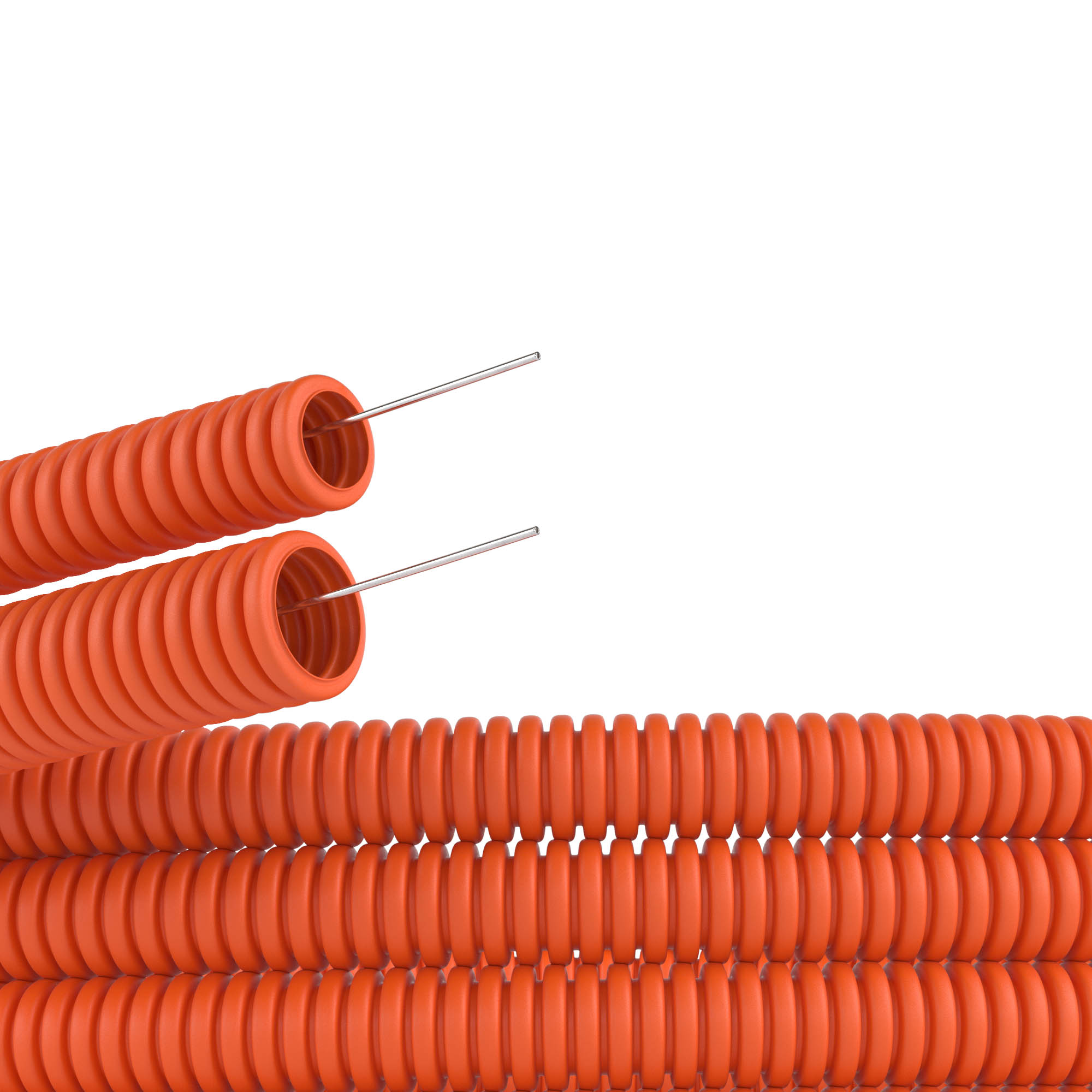

Tube HDPE flexible corrugated, ? 20 mm, heavy version with pull, 100 m, orange color
Code:
71520
Code:
71520
| Colour | Orange |
| UV resistant | No |
| Inner diameter, mm | 14.2 |
| Compressive strength, N | 320 |
| Operational temperature, °C | -40...90 |
| Bending radius, static, mm | 60 |
| Material | Polyethylene |
| Tensile strength, N | 200 |
| Nominal diameter, mm | 20 |
| Nominal size in inch | 3/4 inch |
| Degree of protection (IP) | IP55 |
| Bending strength | Flexible |
| Lengthwise slotted | No |
| Sheathing material | Not sheathed |
| Outer diameter, mm | 19.4 |
| Length | 100 m |
| 8 диаметров мм | 60 mm |
| -5°С ... +60°С | -40°С ... +90°С |
| Ingress Protection rating, IP | IP55 |
| от -25°С до +60°С | from -40°С to +90°С |
| Shock resistance, J | >6 at -40°С |
| Cord for wires | Yes |
| Series | Heavy |
| ТУ 2248-012-47022248-2009 | Technical specifications 3491-011-47022248-2003 |
| 3 года | 3 years |
| 15 лет | 15 years |
| Product type | Tube HDPE flexible corrugated |
| Color | gray |
