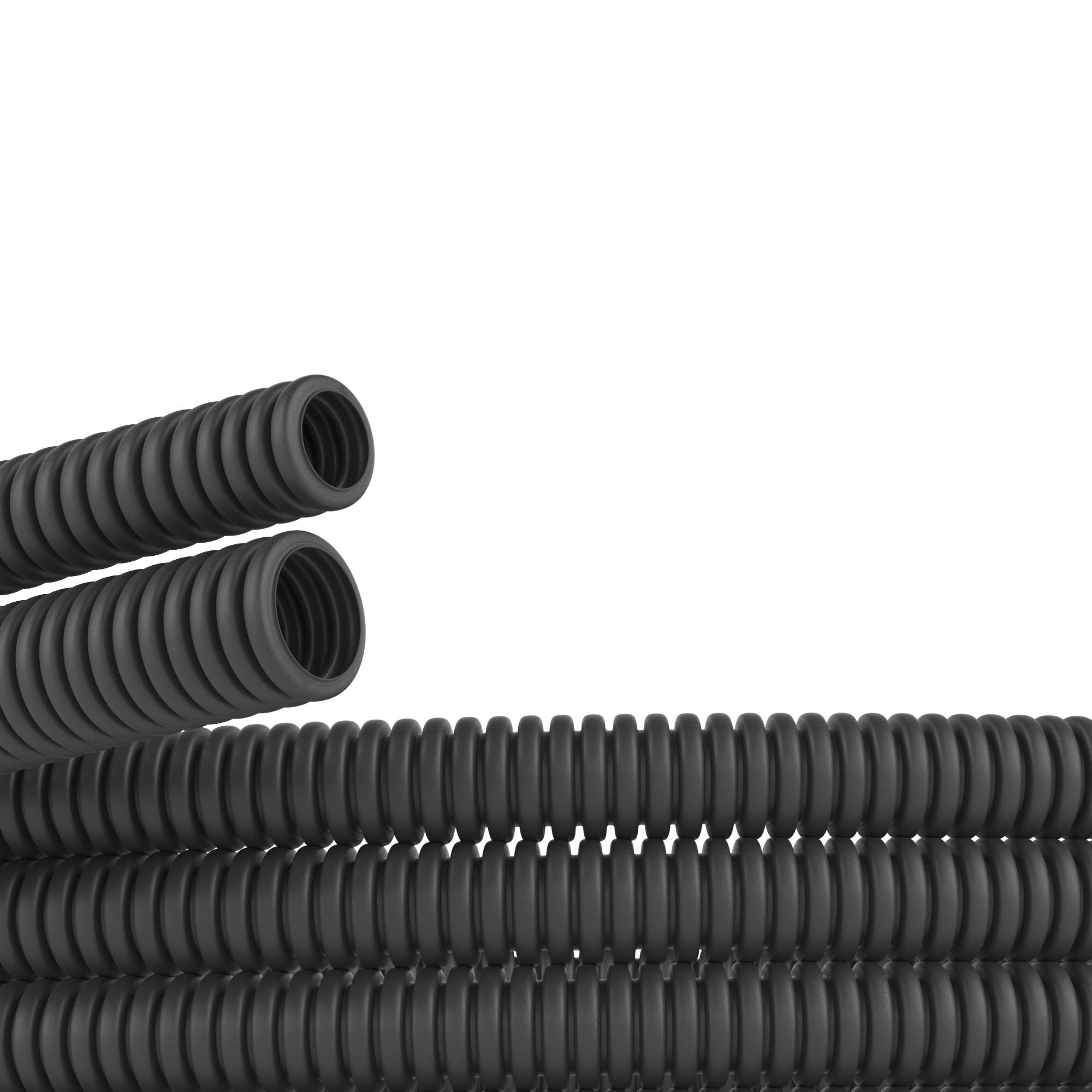

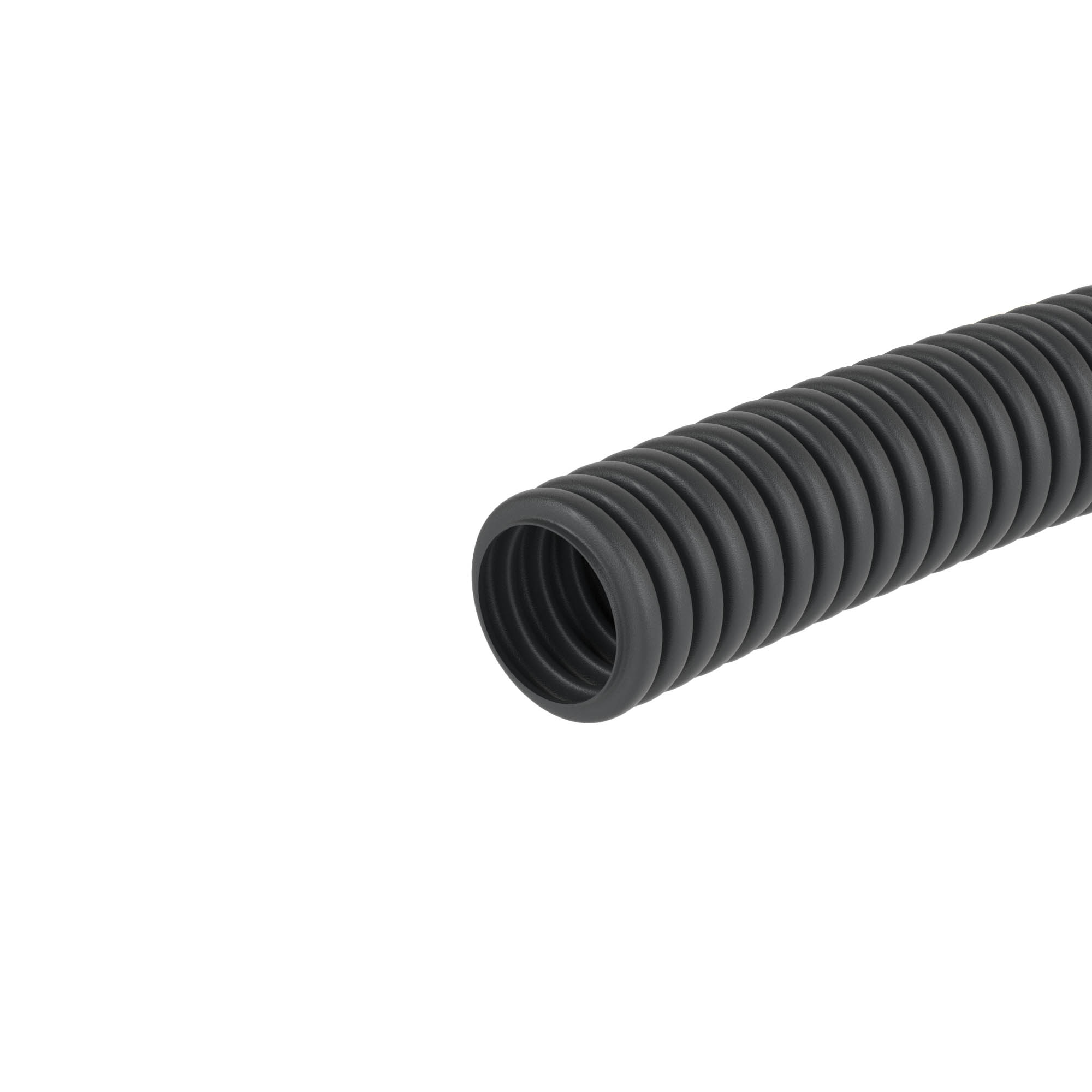

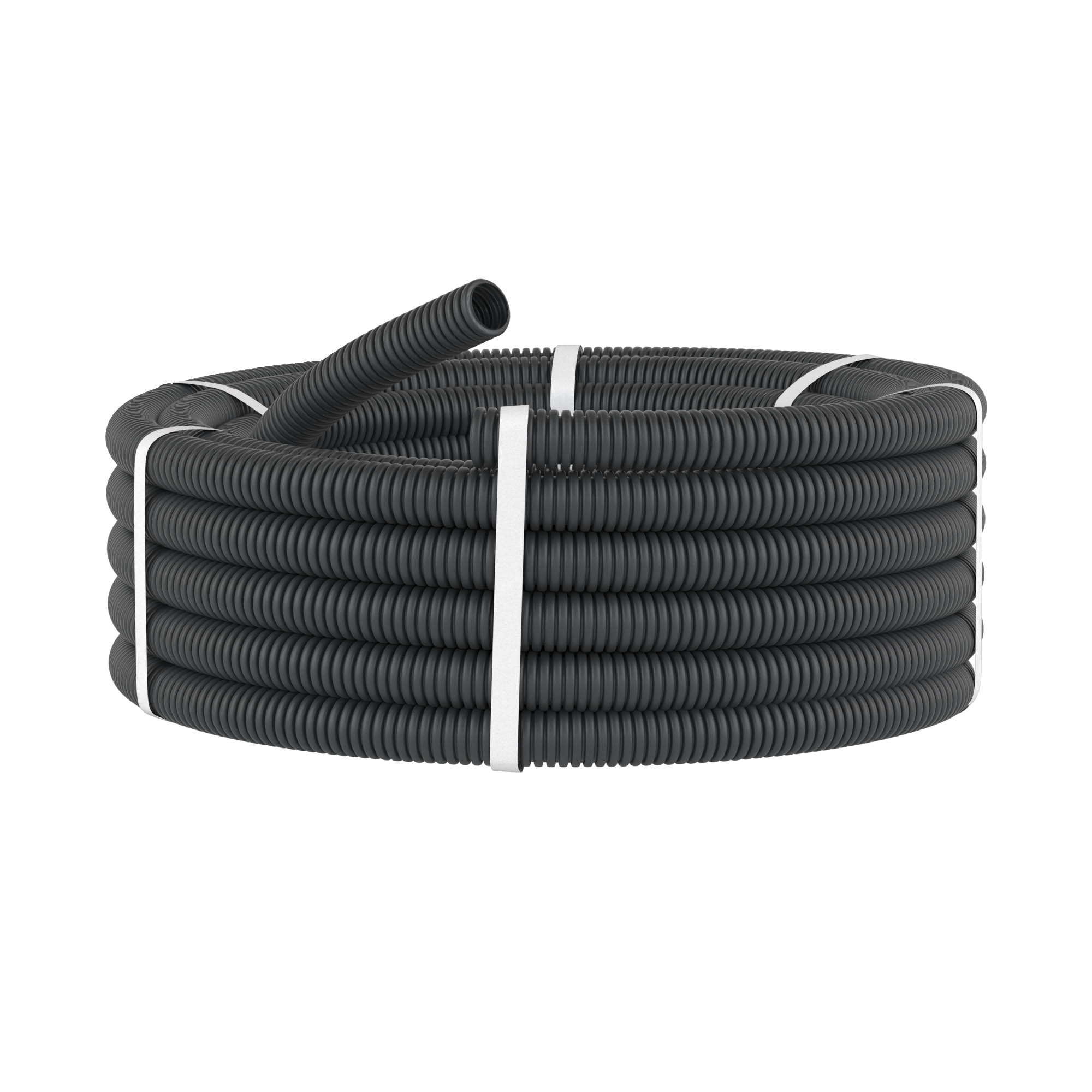

Tube HDPE flexible corrugated, ? 32 mm, light version without pull, 25 m, black color
Code: 70732
Tube HDPE flexible corrugated, ? 32 mm, light version without pull, 25 m, black color
Code: 70732
| Colour | Black |
| UV resistant | Yes |

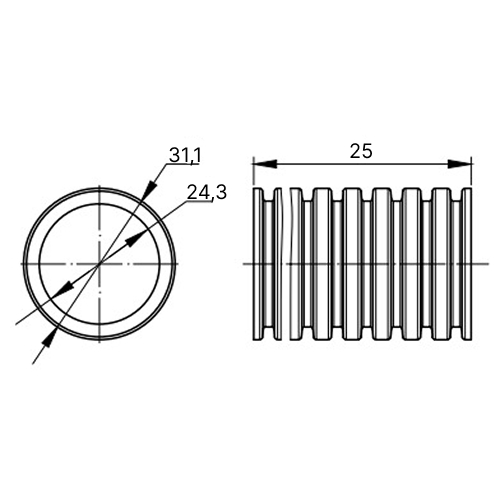

| Inner diameter, mm | 24.3 |
| Compressive strength, N | 125 |
| Operational temperature, °C | -40...90 |
| Bending radius, static, mm | 96 |
| Material | Polyethylene |
| Tensile strength, N | 200 |
| Nominal diameter, mm | 32 |
| Nominal size in inch | 1 1/4 inch |
| Degree of protection (IP) | IP55 |
| Bending strength | Flexible |
| Lengthwise slotted | Yes |
| Sheathing material | Not sheathed |
| Outer diameter, mm | 31.1 |
| Length | 25000 mm |
| 8 диаметров мм | 96 mm |
| -5°С ... +60°С | -40°С ... +90°С |
| Ingress Protection rating, IP | IP55 |
| от -25°С до +60°С | from -40°С to +90°С |
| Shock resistance, J | >2 at -40°С |
| Cord for wires | No |
| Series | Light |
| ТУ 2248-012-47022248-2009 | Technical specifications 3491-011-47022248-2003 |
| 3 года | 3 years |
| 15 лет | 15 years |
| Product type | Tube HDPE flexible corrugated |
