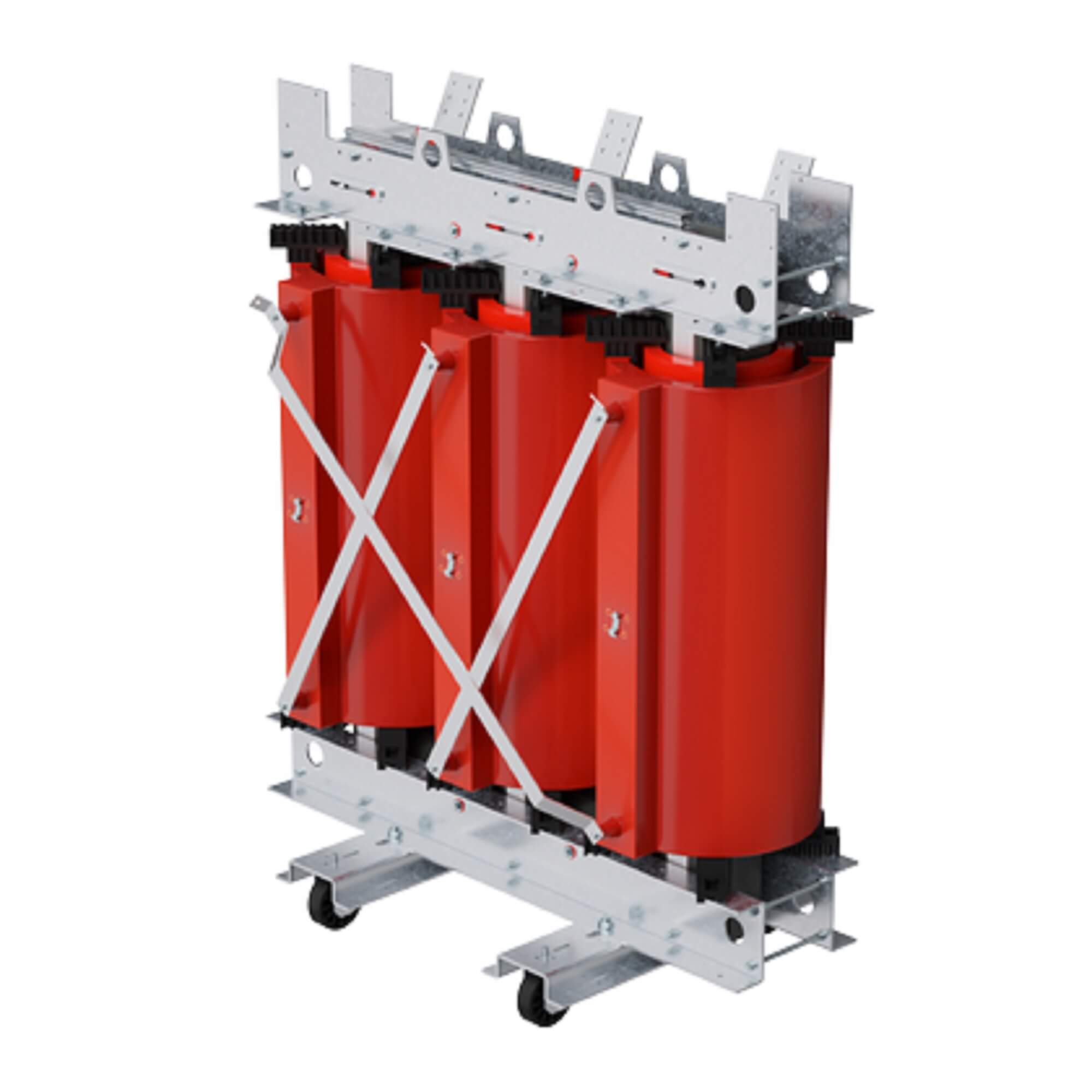

Cast resin transformer 400 kVA 6/0,4 кВ D/Yn–11 IP00

Code: TDA04BDYN1AA000
Cast resin transformer 400 kVA 6/0,4 кВ D/Yn–11 IP00
Cast resin transformer 400 kVA 6/0,4 кВ D/Yn–11 IP00
Number of phases 3
Modular version No
Secondary voltage 1, V 400
Secondary voltage 2, V 400
Secondary voltage 3, V 400
Degree of protection (IP) IP00
Primary voltage 1, V 6000
Primary voltage 2, V 6000
Primary voltage 3, V 6000
Suitable for mounting on PCB No
Ring core No
Rated power, VA 400000
Width, mm 1305
Height, mm 1394
Depth, mm 795
Conductor material Al
Complete device in housing No
Secondary voltage 4, V 400
Secondary voltage 5, V 400
Certificates
Name Document
The test report for compliance with TR ТС 004/2011 low-voltage complex devices "RAM power" for power distribution system for a rated current of 100 - 1600A
PDF
247.20 kB
Declaration of conformity for GOST R 52719-2007 for Cast resin transformers
PDF
99.88 kB
Declaration of conformity to GOST R for cast resin transformers
PDF
324.25 kB
