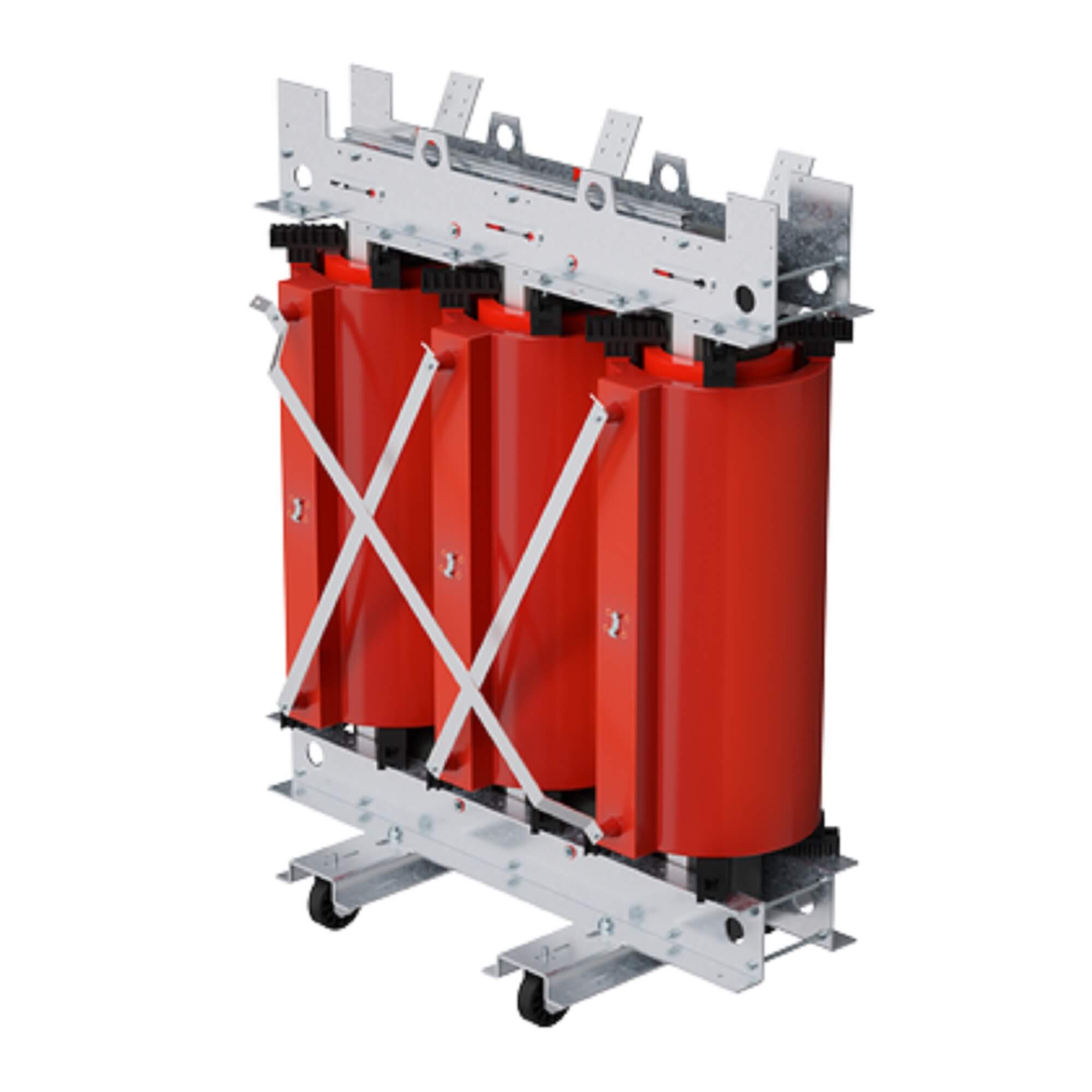

Cast resin transformer 400 kVA 10/0,4 кВ D/Yn–11 IP00

Code: TDA04ADYN1AA000
Number of phases 3
Modular version No
Secondary voltage 1, V 400
Secondary voltage 2, V 400
Secondary voltage 3, V 400
Degree of protection (IP) IP00
Primary voltage 1, V 10000
Primary voltage 2, V 10000
Primary voltage 3, V 10000
Suitable for mounting on PCB No
Ring core No
Rated power, VA 400000
Width, mm 1305
Height, mm 1394
Depth, mm 795
Conductor material Al
Complete device in housing No
Secondary voltage 4, V 400
Secondary voltage 5, V 400
