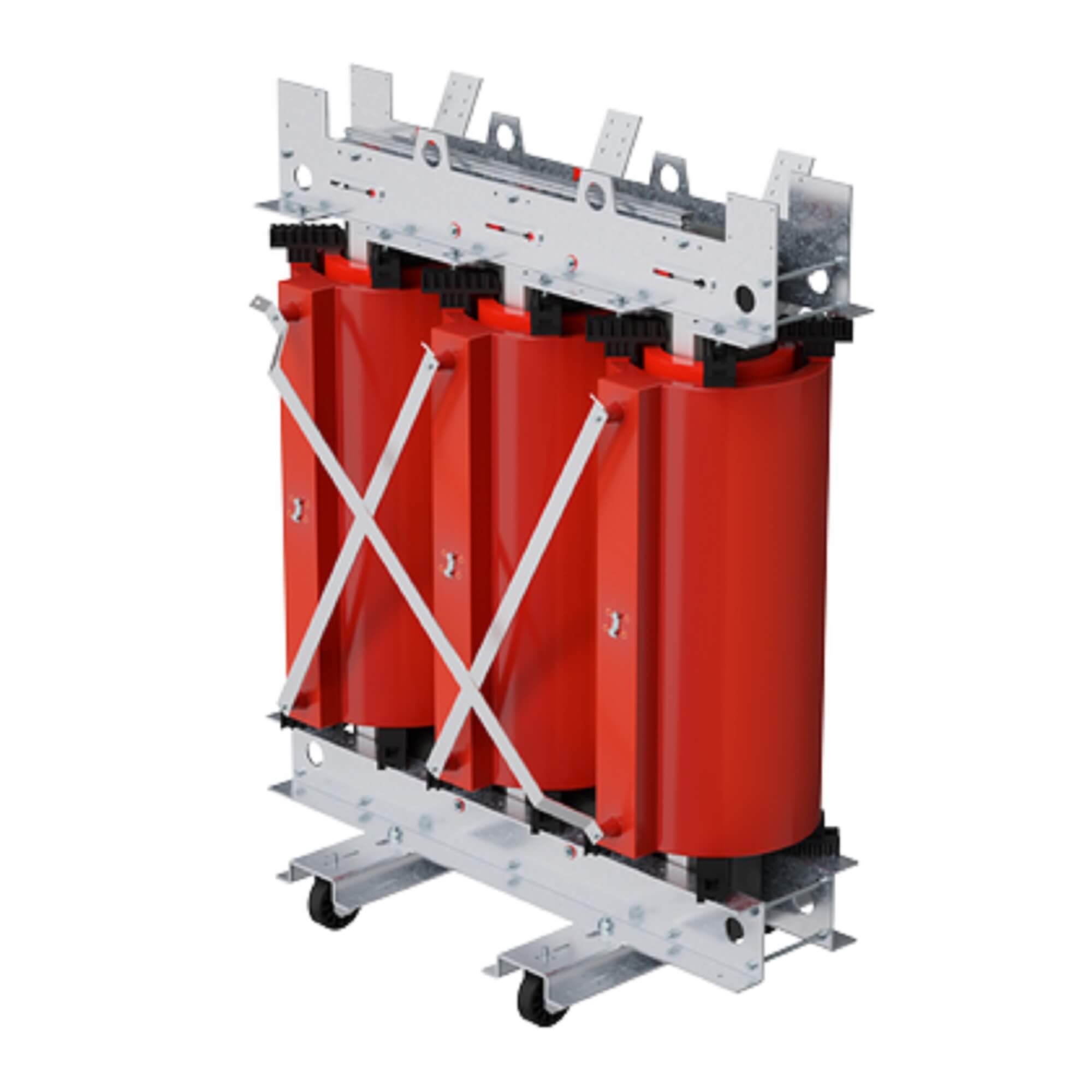

Cast resin transformer 250 kVA 10/0,4 кВ D/Yn–11 IP00

Code: TDA03ADYN1AA000
Cast resin transformer 250 kVA 10/0,4 кВ D/Yn–11 IP00
Cast resin transformer 250 kVA 10/0,4 кВ D/Yn–11 IP00

Cast resin transformer 250 kVA 10/0,4 кВ D/Yn–11 IP00

Code: TDA03ADYN1AA000
Degree of protection (IP) IP00
Rated power, VA 250
Width, mm 1100
Height, mm 1400
Depth, mm 750
Wiring system DY
Built as energy saving transformer No
Type of insulation material according to IEC 85 F
Primary voltage, kV 10
Secondary voltage, kV 0.4
Uk 0.06
Po 750 W
Pk 120ºC 3550 W
Sound preassure level 49 dB
Certificates
Name Document
The test report for compliance with TR ТС 004/2011 low-voltage complex devices "RAM power" for power distribution system for a rated current of 100 - 1600A
PDF
247.20 kB
Declaration of conformity for GOST R 52719-2007 for Cast resin transformers
PDF
99.88 kB
Declaration of conformity to GOST R for cast resin transformers
PDF
324.25 kB
