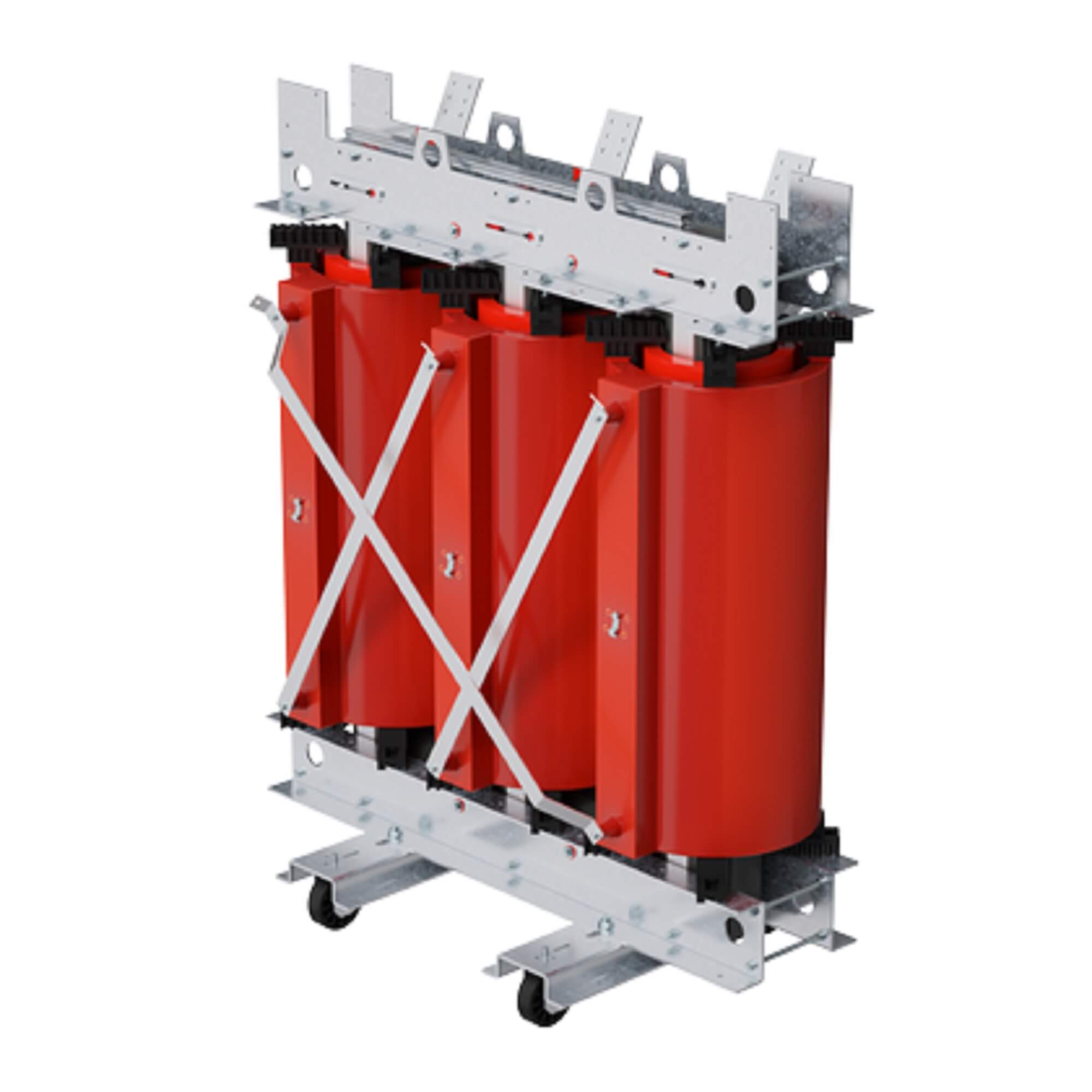

Cast resin transformer 160 kVA 10/0,4 кВ D/Yn–11 IP00

Code: TDA02ADYN1AA000
Cast resin transformer 160 kVA 10/0,4 кВ D/Yn–11 IP00
  • To ask a question
Degree of protection (IP) IP00
Rated power, VA 160
Width, mm 1100
Height, mm 1150
Depth, mm 750
Wiring system DY
Built as energy saving transformer No
Type of insulation material according to IEC 85 F
Primary voltage, kV 10
Secondary voltage, kV 0.4
Uk 0.06
Po 470 W
Pk 120ºC 2700 W
Sound preassure level 49 dB
