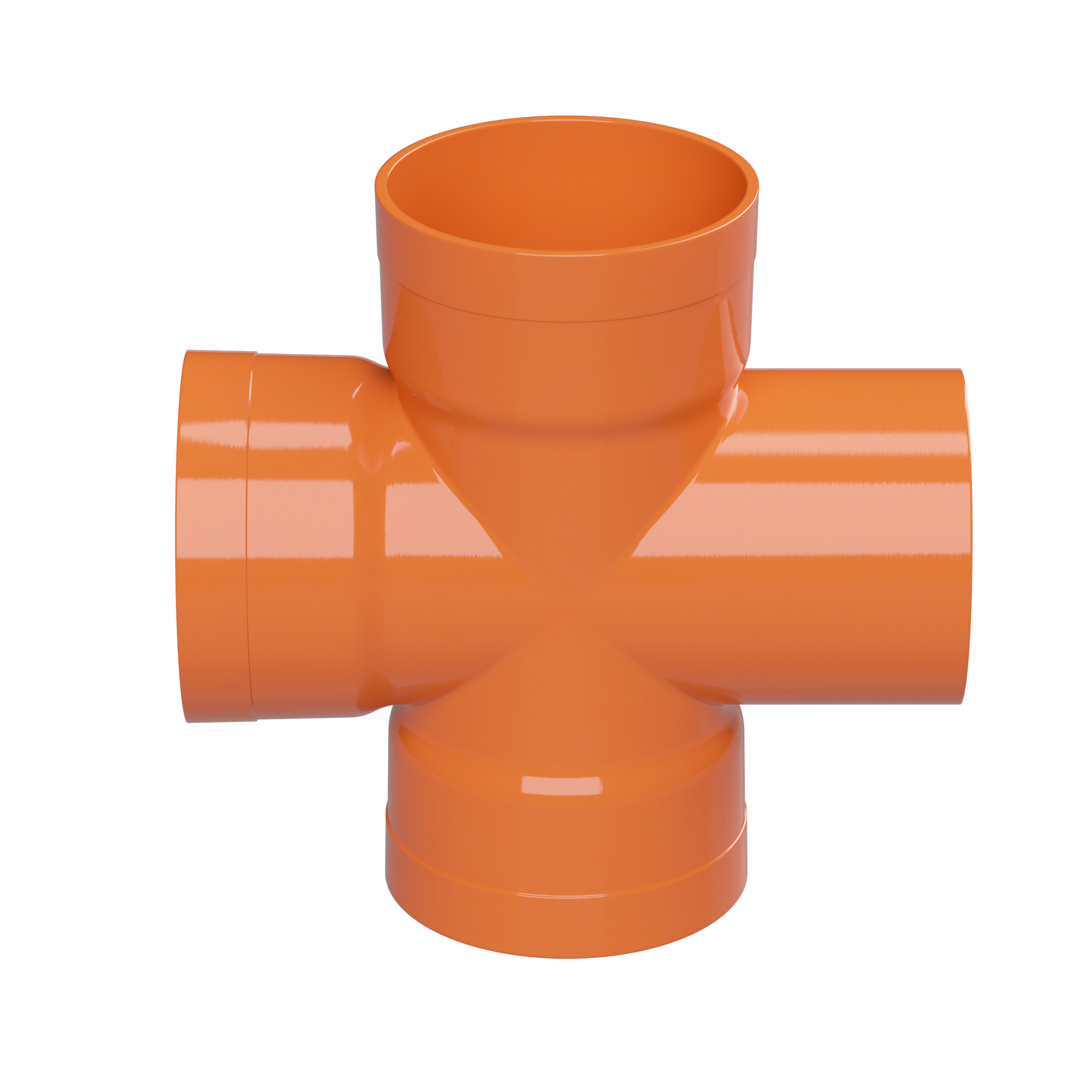

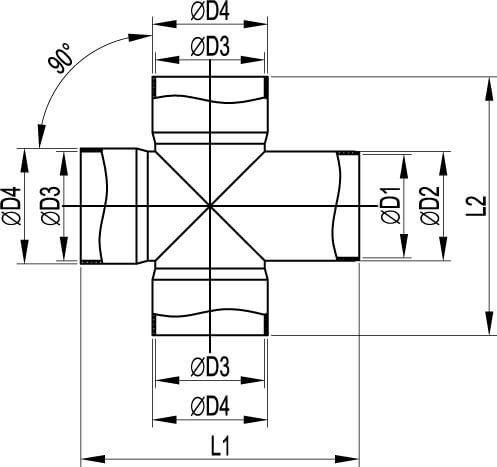

X-shaped connection for double-wall tubes, 90°, Ø 110 mm
Code: 022110
X-shaped connection for double-wall tubes, 90°, Ø 110 mm
Code: 022110
| Model | 90°-elbow |
| Type of connection | Other |
| Total length, mm | 242 |
| Construction type | Other |
| Revolving thread | No |
| Thread type | Other |
| Material sealing | No sealing |
| Lowest inner diameter hose, mm | 104 |
| Total height, mm | 258 |
| Approved in combination with protective conduit UR | No |
| Approved in combination with protective conduit VD TÜV/GGVS | No |
| Approved in combination with protective conduit CSA | No |
| Approved in combination with protective conduit Lloyd's Register | No |
| Material | Polypropylene (PP) |
| Max. outer diameter hose, mm | 118 |
| Thread material | Other |
| Nominal diameter, mm | 110 |
| Nominal size in inch | Other |
| Degree of protection (IP) | IP40 |
| Approved in combination with protective conduit DIN EN 61386-23 | No |
| Diameter (nominal) | 110 mm |
| Color | gray |
| Material | PVC |
| Ingress Protection rating, IP | IP44 / 55 (with optional seals) |
| Product type | X-shaped connection 90° |
| ТУ 2248-012-47022248-2009 | Technical specifications 2248-015-47022248-2006 |
| 3 года | 2 years |
| 15 лет | 50 years |
