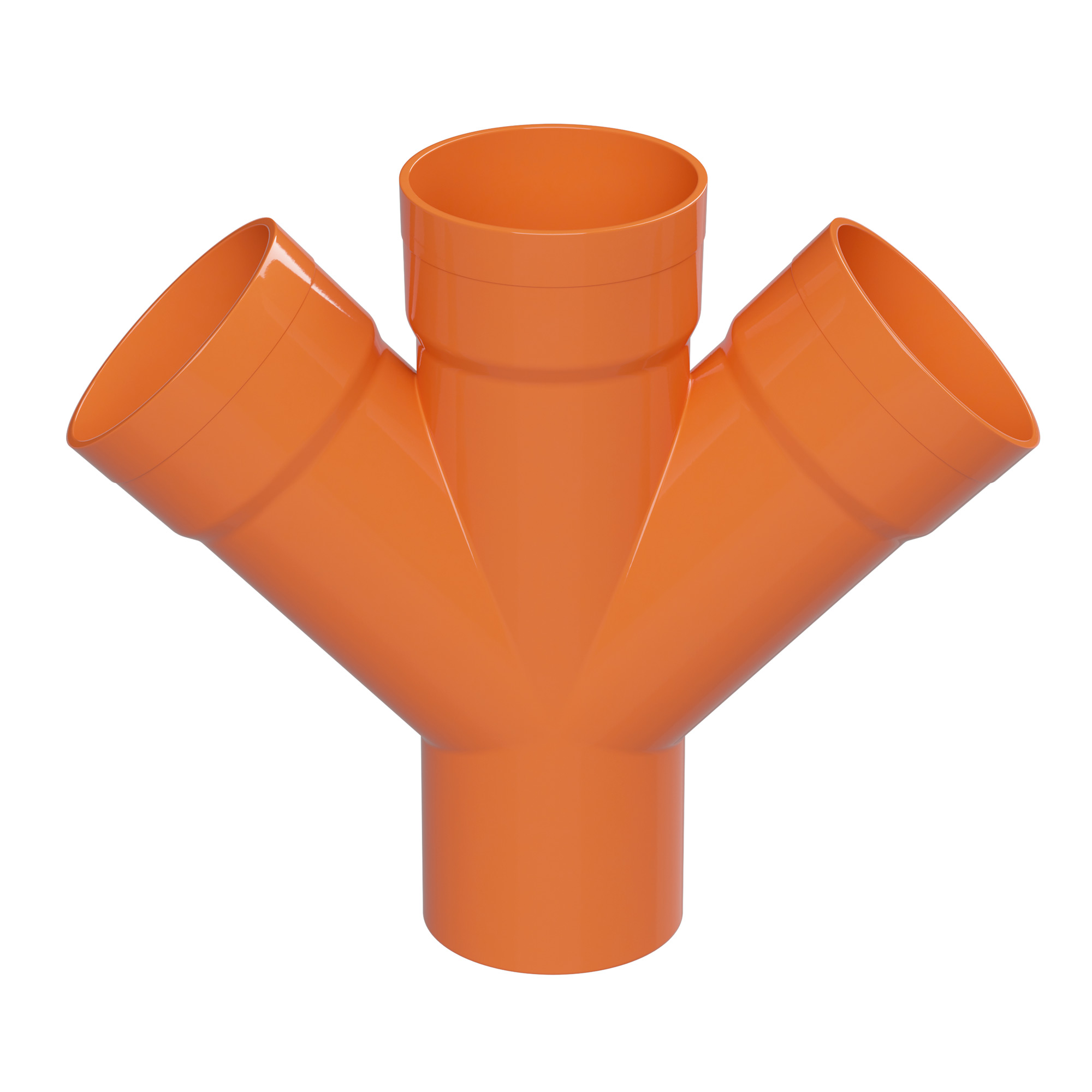

Connection for four double-wall tubes, 45°, Ø 125 mm

Code: 021125

Connection for four double-wall tubes, 45°, Ø 125 mm

Code: 021125
Model 45°-elbow
Type of connection Other
Total length, mm 378
Construction type Other
Revolving thread No
Thread type Other
Material sealing No sealing
Lowest inner diameter hose, mm 116
Total height, mm 332
Approved in combination with protective conduit UR No
Approved in combination with protective conduit VD TÜV/GGVS No
Approved in combination with protective conduit CSA No
Approved in combination with protective conduit Lloyd's Register No
Material Polypropylene (PP)
Max. outer diameter hose, mm 131
Thread material Other
Nominal diameter, mm 125
Nominal size in inch Other
Degree of protection (IP) IP40
Approved in combination with protective conduit DIN EN 61386-23 No
Diameter (nominal) 125 mm
Color gray
Material PVC
Ingress Protection rating, IP IP44 / 55 (with optional seals)
Product type Connection for four double-wall tubes 45°
ТУ 2248-012-47022248-2009 Technical specifications 2248-015-47022248-2006
3 года 2 years
15 лет 50 years
