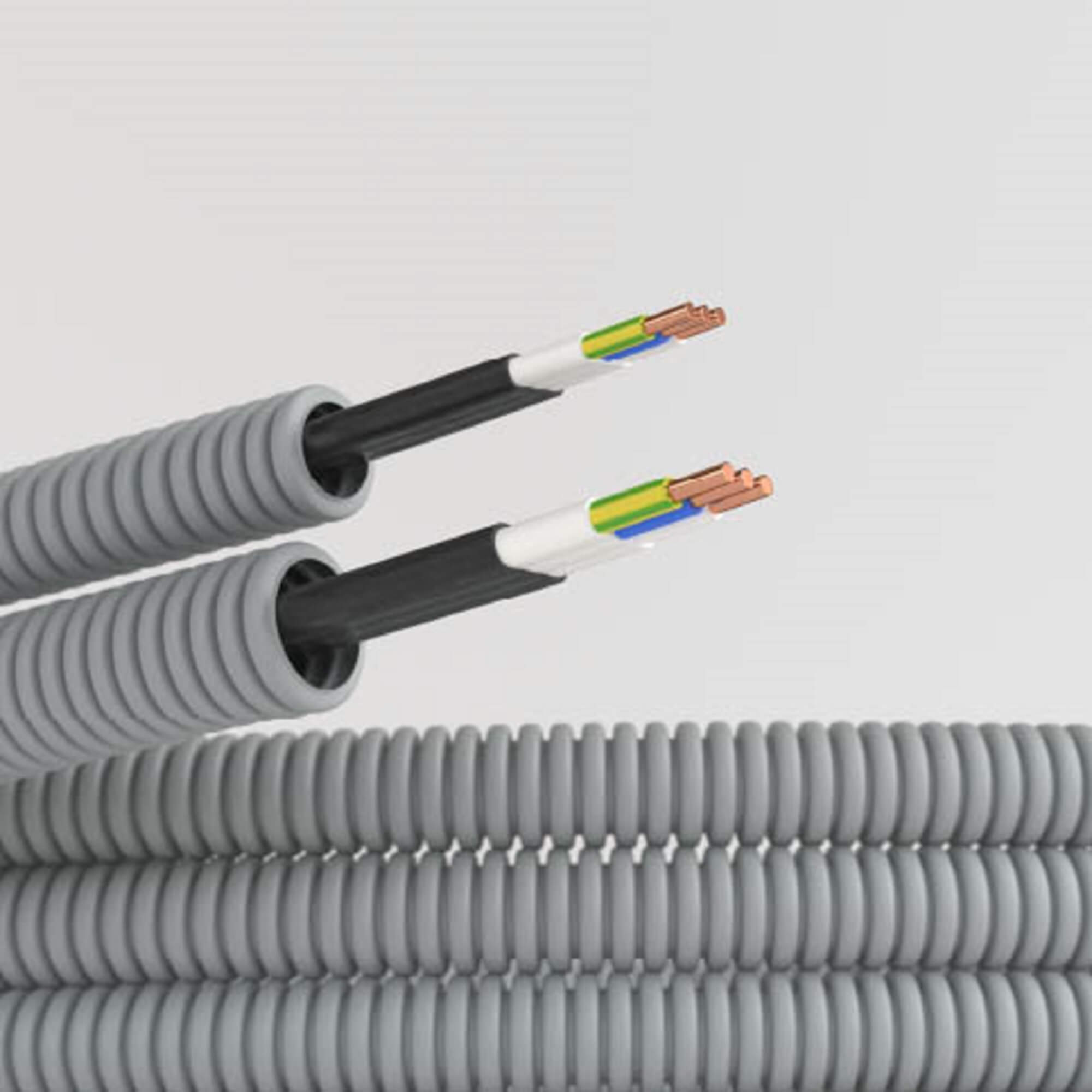

Pre-wired tube PVC flexible corrugated, Ø 20 mm, grey color, with flatcable Concord LS PVC 3x1,5 mm², 100 m

Code: 9L920100KF
Pre-wired tube PVC flexible corrugated, Ø 20 mm, grey color, with flatcable Concord LS PVC 3x1,5 mm², 100 m
Pre-wired tube PVC flexible corrugated, Ø 20 mm, grey color, with flatcable Concord LS PVC 3x1,5 mm², 100 m
Colour Grey
Outer diameter, mm 16
UV resistant No
Inner diameter, mm 11.5
Compressive strength, N 350
Operating temperature, °C -25…60
Bending radius, static, mm 48
Flame accelerating No
Material PVC
Tensile strength, N 100
Nominal diameter, mm 16
Nominal size in inch 5/8 inch
Degree of protection (IP) IP55
Bending strength Flexible
Lengthwise slotted No
Sheathing material Not sheathed
-5°С ... +60°С -5°С ... +60°С
Ingress Protection rating, IP IP55
от -25°С до +60°С from -25°С to +60°С
Shock resistance, J >0,5 at -25°С
Cord for wires No
Fire protection It is not spread combustion (GOST R 53313-2009)
ТУ 2248-012-47022248-2009 Technical specifications 2247-008-47022248-2002
3 года 3 years
15 лет 15 years
Length 100000 mm
8 диаметров мм 48 mm
Certificates
Name Document
Octopus_series_9 - Fire safety certificates for flexible corrugated fire-resistant PVC-tubes
PDF
529.73 kB
Octopus_series_10 - Certificate of conformity to GOST R for flexible corrugated fire-resistant polypropylene tubes
PDF
528.93 kB
Octopus_series_7 - Certificate of conformity to GOST R for flexible corrugated HDPE tubes
PDF
513.74 kB
Octopus_series_10 - Certificate of conformity to GOST R for flexible corrugated fire-resistant polypropylene tubes
PDF
7.28 MB
