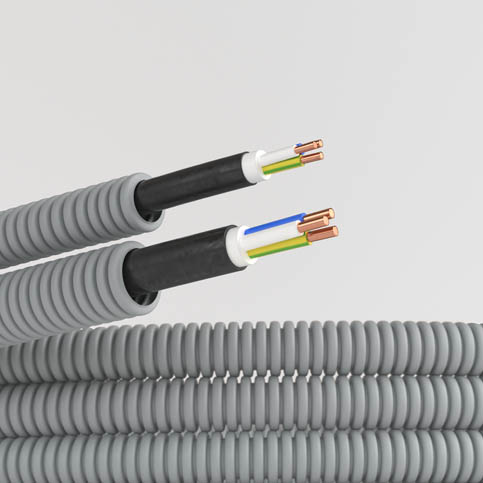

Pre-wired tube PVC flexible corrugated, Ø 20 mm, grey color, with cableConcord LS PVC 3x1,5 mm², 100 m
Code: 9L920100K
Pre-wired tube PVC flexible corrugated, Ø 20 mm, grey color, with cableConcord LS PVC 3x1,5 mm², 100 m
Code: 9L920100K
Removed from the product range
| Colour | Grey |
| Outer diameter, mm | 16 |
| UV resistant | No |
| Inner diameter, mm | 11.5 |
| Compressive strength, N | 350 |
| Operational temperature, °C | -25…60 |
| Bending radius, static, mm | 48 |
| Flame accelerating | No |
| Material | Polyvinyl chloride (PVC) |
| Tensile strength, N | 100 |
| Nominal diameter, mm | 16 |
| Nominal size in inch | 5/8 inch |
| Degree of protection (IP) | IP55 |
| Bending strength | Flexible |
| Lengthwise slotted | No |
| Sheathing material | Not sheathed |
