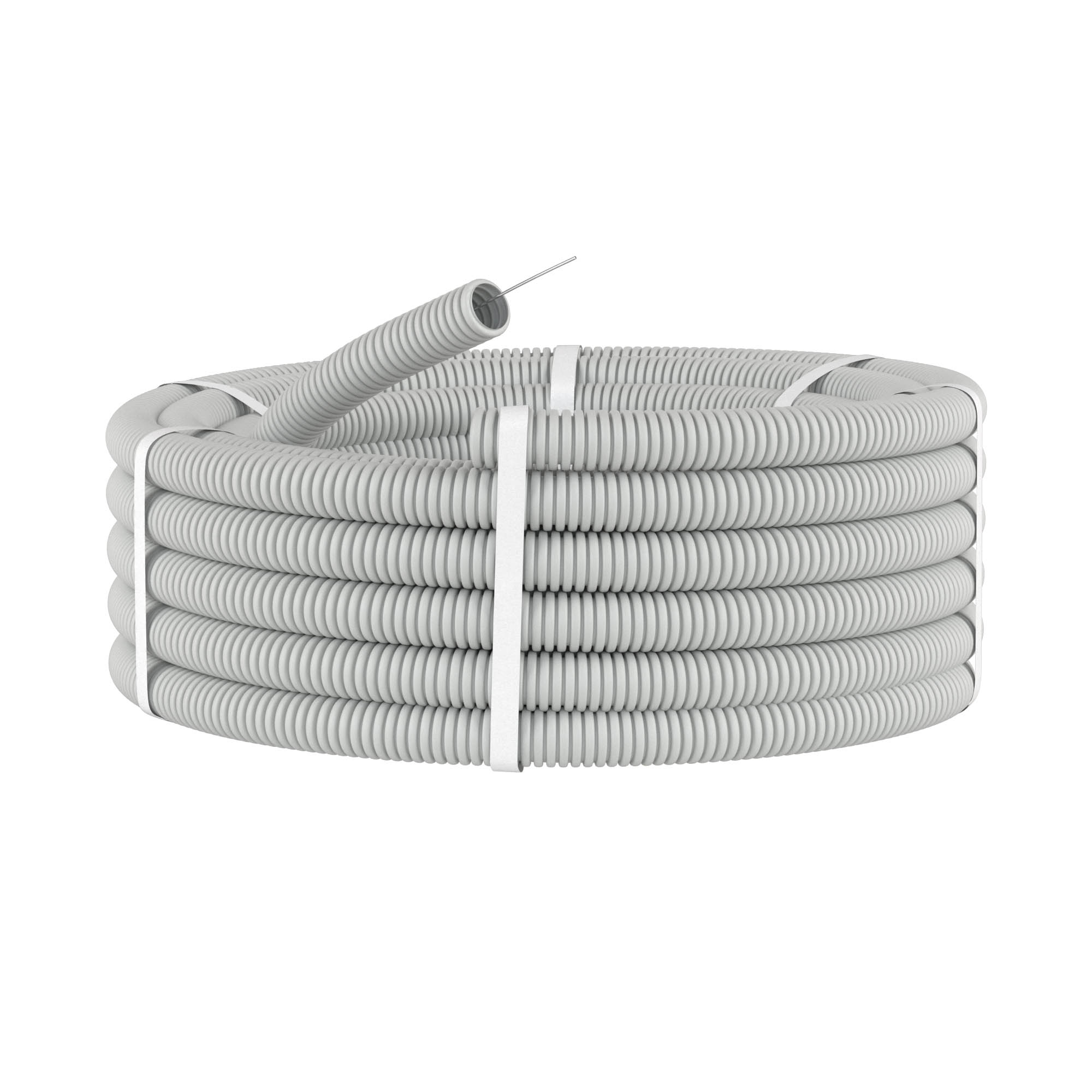

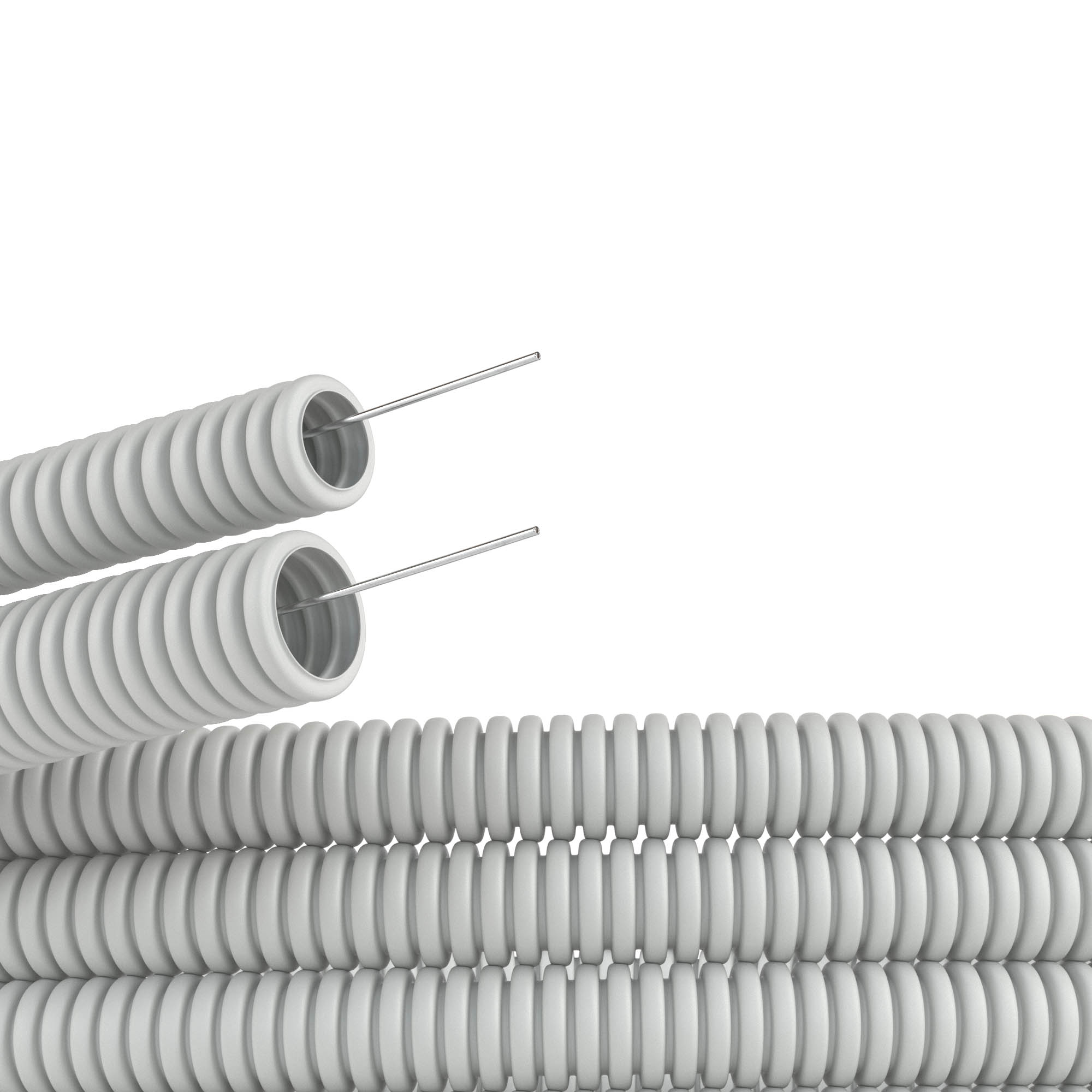

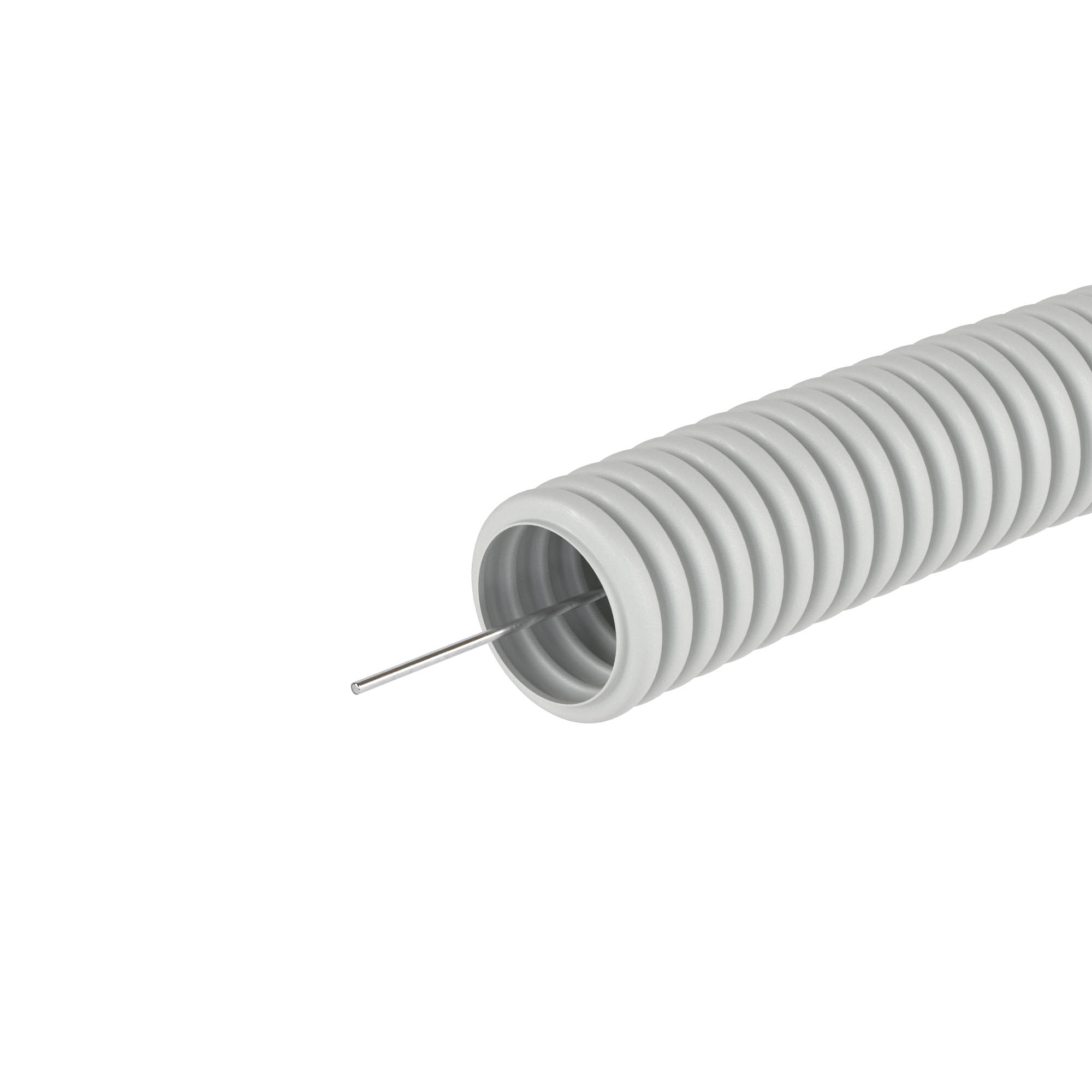

Tube PVC flexible corrugated, ? 32 mm, light version with pull, 25 m, grey color

Code: 91932
Tube PVC flexible corrugated, ? 32 mm, light version with pull, 25 m, grey color
  • To ask a question
Colour Grey

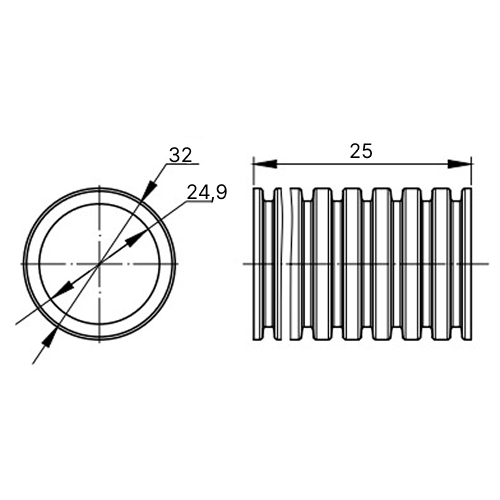

Outer diameter, mm 32
UV resistant Нет
Inner diameter, mm 24.9
Compressive strength, N 350
Operational temperature, °C - 25…60
Bending radius, static, mm 96
Flame accelerating Нет
Material Polyvinyl chloride (PVC)
Tensile strength, N 100
Nominal diameter, mm 32
Nominal size in inch 1 1/4 inch
Degree of protection (IP) IP55
Bending strength Flexible
Lengthwise slotted Нет
Sheathing material Not sheathed
Length 25000 mm
8 диаметров мм 96 mm
-5°С ... +60°С -5°С ... +60°С
Ingress Protection rating, IP IP55
от -25°С до +60°С from -25°С to +60°С
Shock resistance, J >0,5 at -25°С
Cord for wires Yes
Fire protection It is not spread combustion (GOST R 53313-2009)
Series Light
ТУ 2248-012-47022248-2009 Technical specifications 2247-008-47022248-2002
3 года 3 years
15 лет 15 years
Product type Tube PVC flexible corrugated
Accessories
