Colour Green
Outer diameter, mm 20
UV resistant No
Inner diameter, mm 14.9
Compressive strength, N 350
Operating temperature, °C -25…60
Bending radius, static, mm 60
Flame accelerating No
Material PVC
Tensile strength, N 100
Nominal diameter, mm 20
Nominal size in inch 3/4 inch
Degree of protection (IP) IP55
Bending strength Flexible
Lengthwise slotted No
-- Yes
Sheathing material Not sheathed
Length 100000 mm
-5°С ... +60°С -5°С ... +60°С
Degree of protection IP55
от -25°С до +60°С from -25°С to +60°С
Shock resistance, J >0,5 at -25°С
Cord for wires Yes
Fire protection It is not spread combustion (GOST R 53313-2009)
8 диаметров мм 60 mm
Сверхтяжелая Light
ТУ 2248-012-47022248-2009 Technical specifications 2247-008-47022248-2002
3 года 3 years
15 лет 15 years

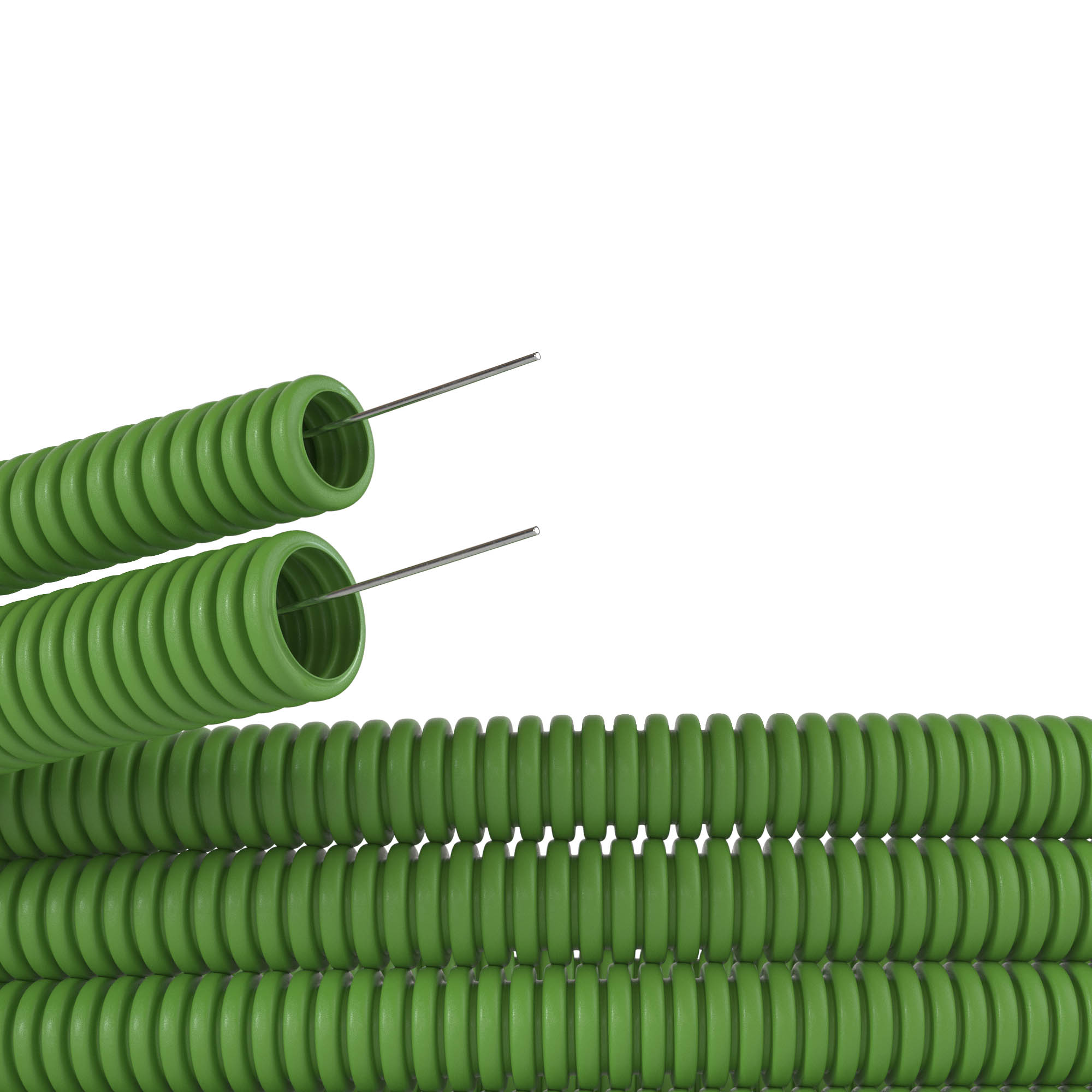

Product type Tube PVC flexible corrugated
