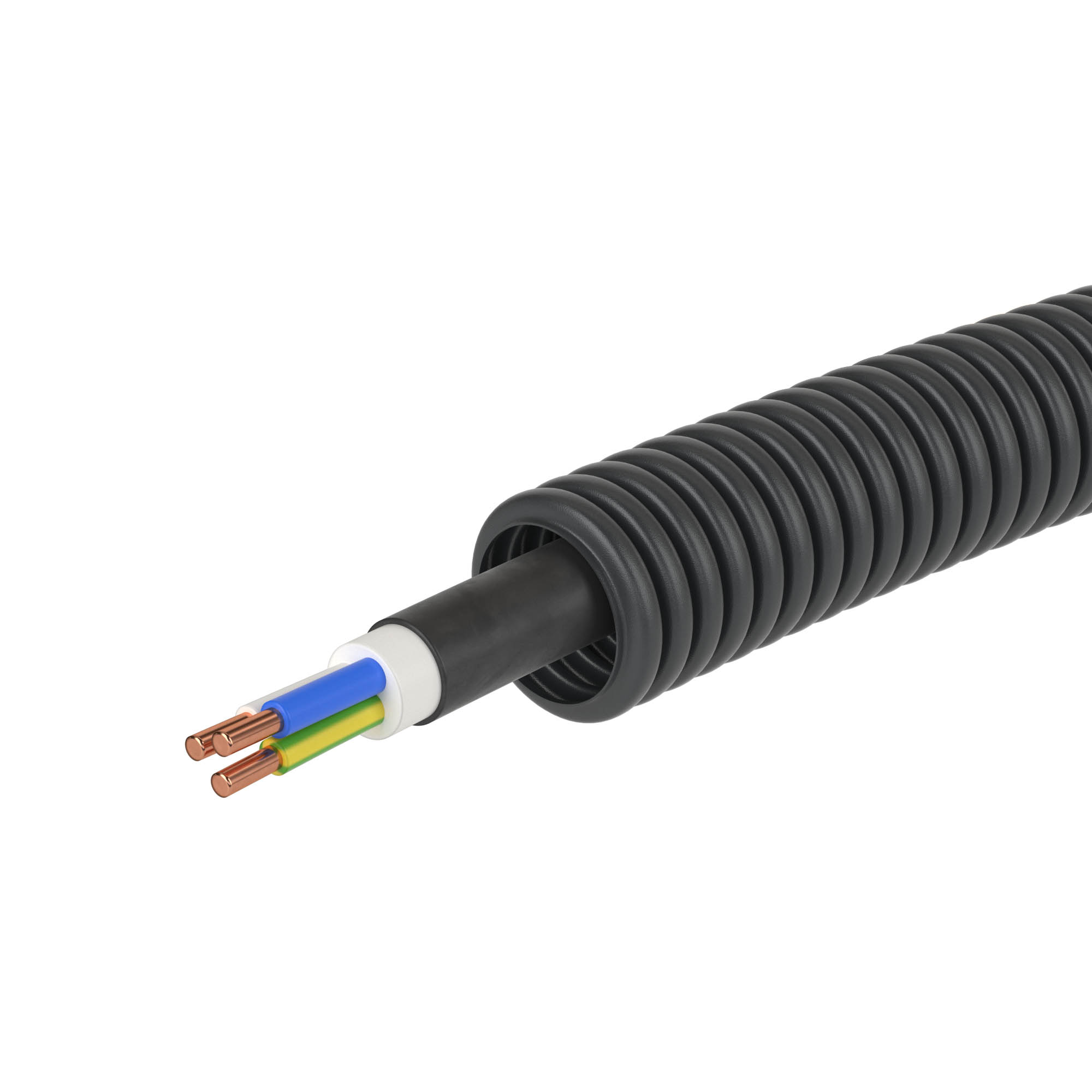

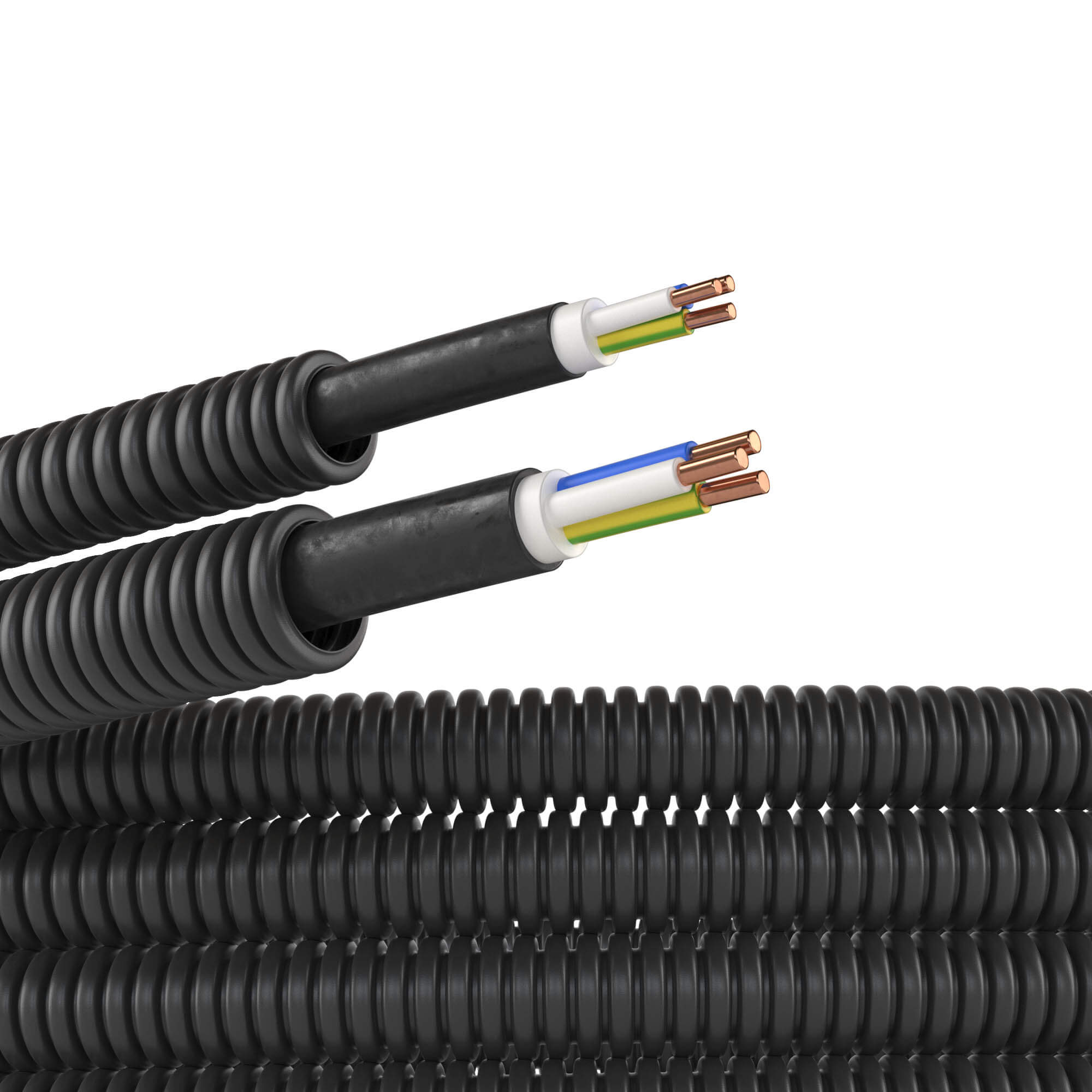

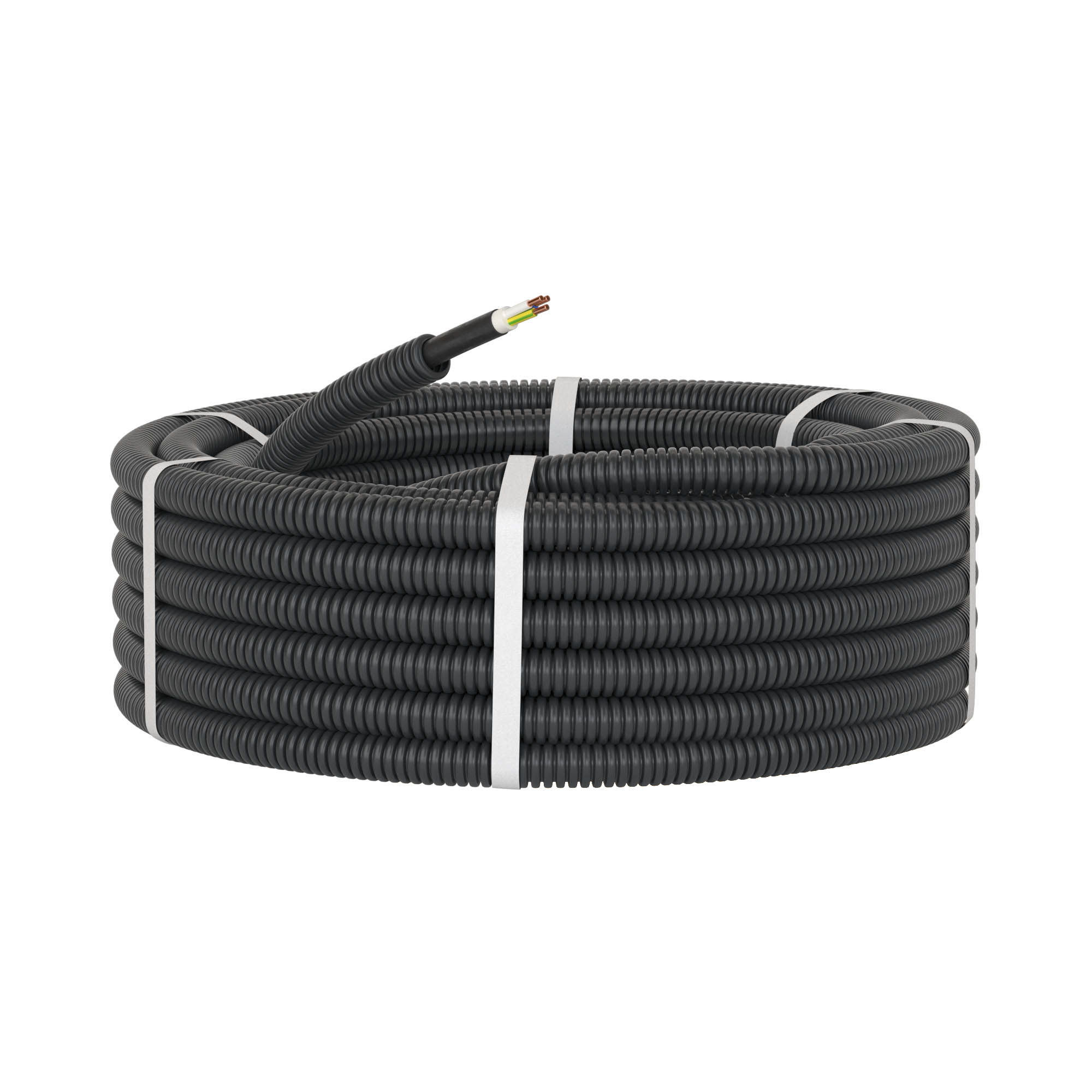

Pre-wired tube HDPE flexible corrugated, Ø 20 mm, black color, with cable Prysmian LS PVC 2C+E 2,5 mm², 100 m

Pre-wired tube HDPE flexible corrugated, Ø 20 mm, black color, with cable Prysmian LS PVC 2C+E 2,5 mm², 100 m

Code: 7S720100

To ask a question

ETIM

Colour	Black
Outer diameter, mm	20
UV resistant	No
Inner diameter, mm	14,5
Compressive strength, N	125
Operating temperature, °C	-40…90
Bending radius, static, mm	60
Flame accelerating	Yes

Material	Polyethylene
Tensile strength, N	200
Nominal diameter, mm	20
Nominal size in inch	3/4 inch
Degree of protection (IP)	IP55
Bending strength	Flexible
Lengthwise slotted	No
Sheathing material	Not sheathed

Accessories

Junction box for solid walls, IP40, 92х92х45 mm

Code: 59361

Junction box for solid walls, IP40, 118х96х50 mm

Code: 59362

Junction box for solid walls, IP40, 118х96х70 mm

Code: 59363

Junction box for solid walls, IP40, 154х98х70 mm

Code: 59364

Junction box for solid walls, IP40, 160х130х70 mm

Code: 59365

Adjusting box for concrete, Ø 70x57 mm

Code: 59380

Adjusting box for concrete, Ø 70x100 mm

Code: 59381

Adjusting box for concrete, Ø 70x136 mm

Code: 59382

Plastic tube holder with clip and dowel, Ø 20 mm (retail packaging)

Code: 51320R

Muff for goffered tubes, IP40, Ø 20 mm

Code: 50820

Universal adjusting box for concrete, 90x71x74 mm

Code: 59392U

Universal adjusting box for concrete, 90x71x110 mm

Code: 59393U

Support for concrete pouring, 72х72х10 mm

Code: 59388

Universal ceiling box for concrete, 90x71x114 mm

Code: 59391U

Plug for goffered tubes, IP40, Ø 20 mm

Code: 50920

Plastic tube holder with clip, Ø 20 mm (retail packaging)

Code: 51020R

Plastic tube two-component holder, Ø 20 mm (retail packaging)

Code: 51120R

Body of the box for concrete, Ø 71x49 mm

Code: 59381B

Ceiling box for pouring the concrete, Ø 72x65 mm

Code: 59391

Sleeve terminal for in concrete, 20 and 32 mm

Code: 59390

Certificates

Name	Document
Octopus_series_9 - Fire safety certificates for flexible corrugated fire-resistant PVC-tubes	PDF 529.73 kB
Octopus_series_10 - Certificate of conformity to GOST R for flexible corrugated fire-resistant polypropylene tubes	PDF 528.93 kB
Octopus_series_7 - Certificate of conformity to GOST R for flexible corrugated HDPE tubes	PDF 513.74 kB
Octopus_series_10 - Certificate of conformity to GOST R for flexible corrugated fire-resistant polypropylene tubes	PDF 7.28 MB
Certificate of conformity GOST R MEK 61386.1-2014 for Flexible corrugated HDPE tubes	PDF 572.15 kB
