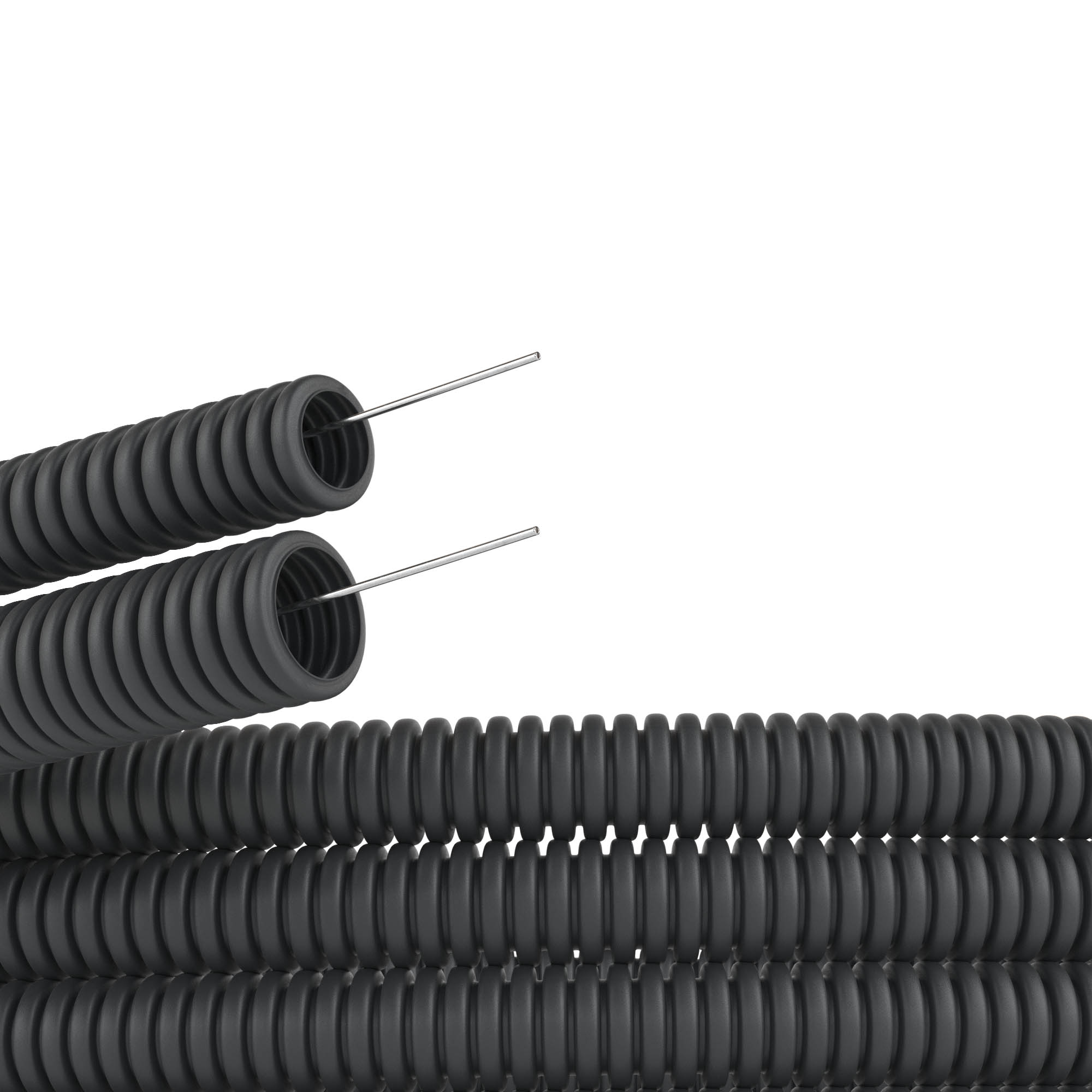

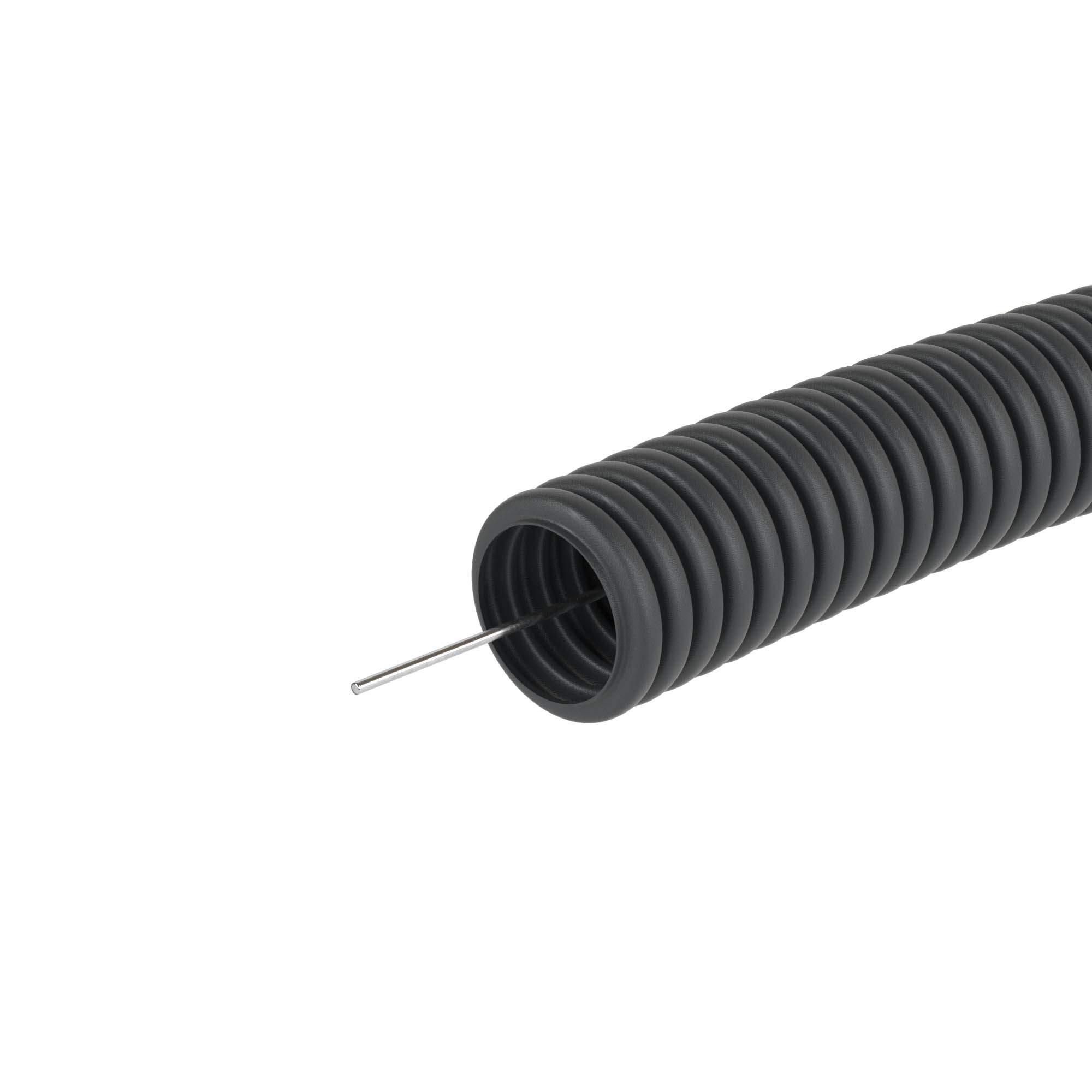

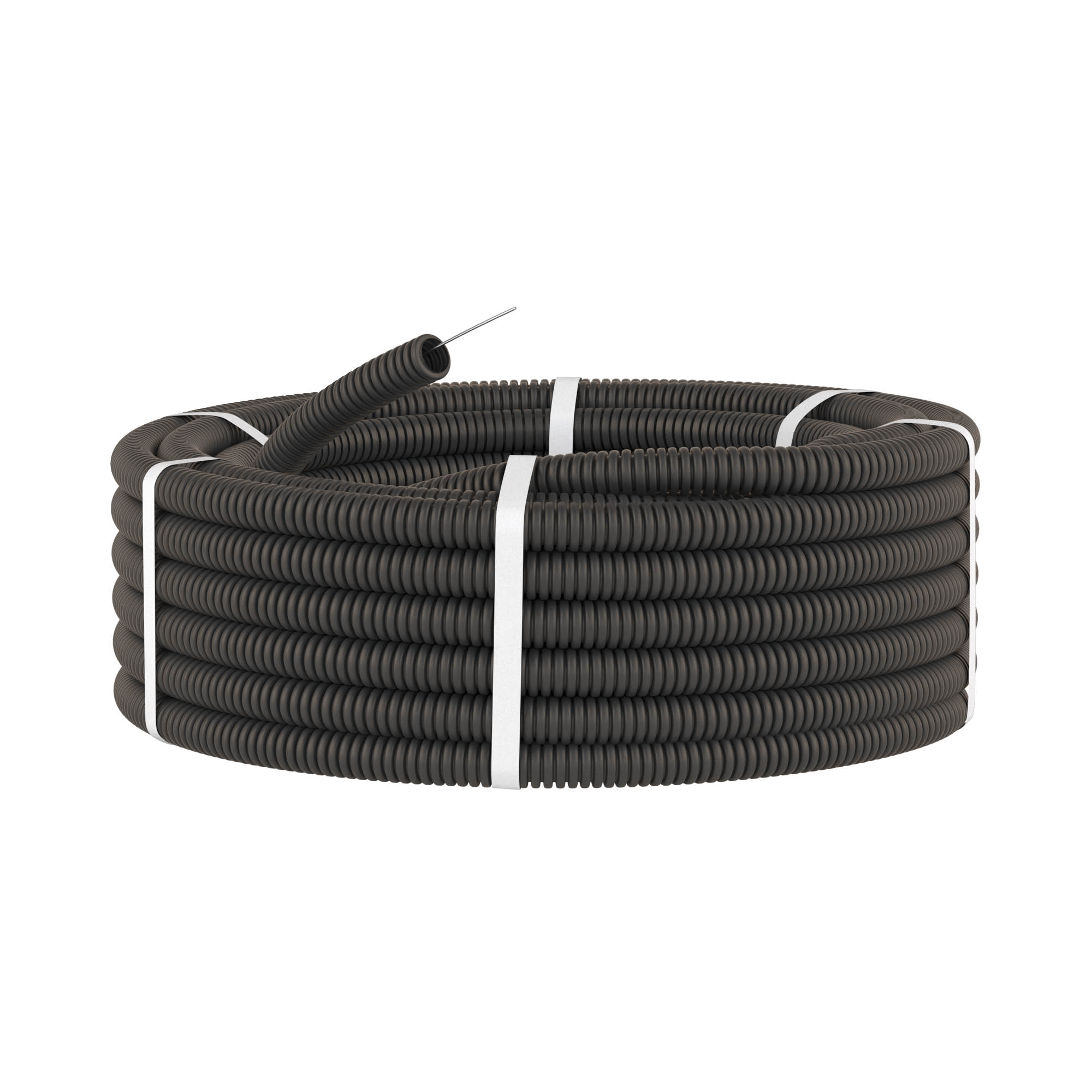

Tube HDPE flexible corrugated, ? 16 mm, light version with pull, 25 m, black color

Code: 7171625
  • To ask a question
Colour Black
Outer diameter, mm 15,7
UV resistant No
Inner diameter, mm 11,3
Compressive strength, N 125
Operating temperature, °C - 40...90
Bending radius, static, mm 48
Material Polyethylene
Tensile strength, N 200
Degree of protection (IP) IP55
Bending strength Flexible
Nominal diameter, mm 16
Lengthwise slotted No
Sheathing material Not sheathed
Length, mm 25000
Temperature of mounting, °C -40°С ... +90°С
Ingress Protection rating, IP IP55
Temperature of operation, °C from -40°С to +90°С
Shock resistance, J >2 at -40°С
Cord for wires Yes
Radius of bending (min) , mm 48
Сверхтяжелая Light
ТУ 2248-012-47022248-2009 Technical specifications 3491-011-47022248-2003
3 года 3 years
15 лет 15 years
Product type Tube HDPE flexible corrugated
