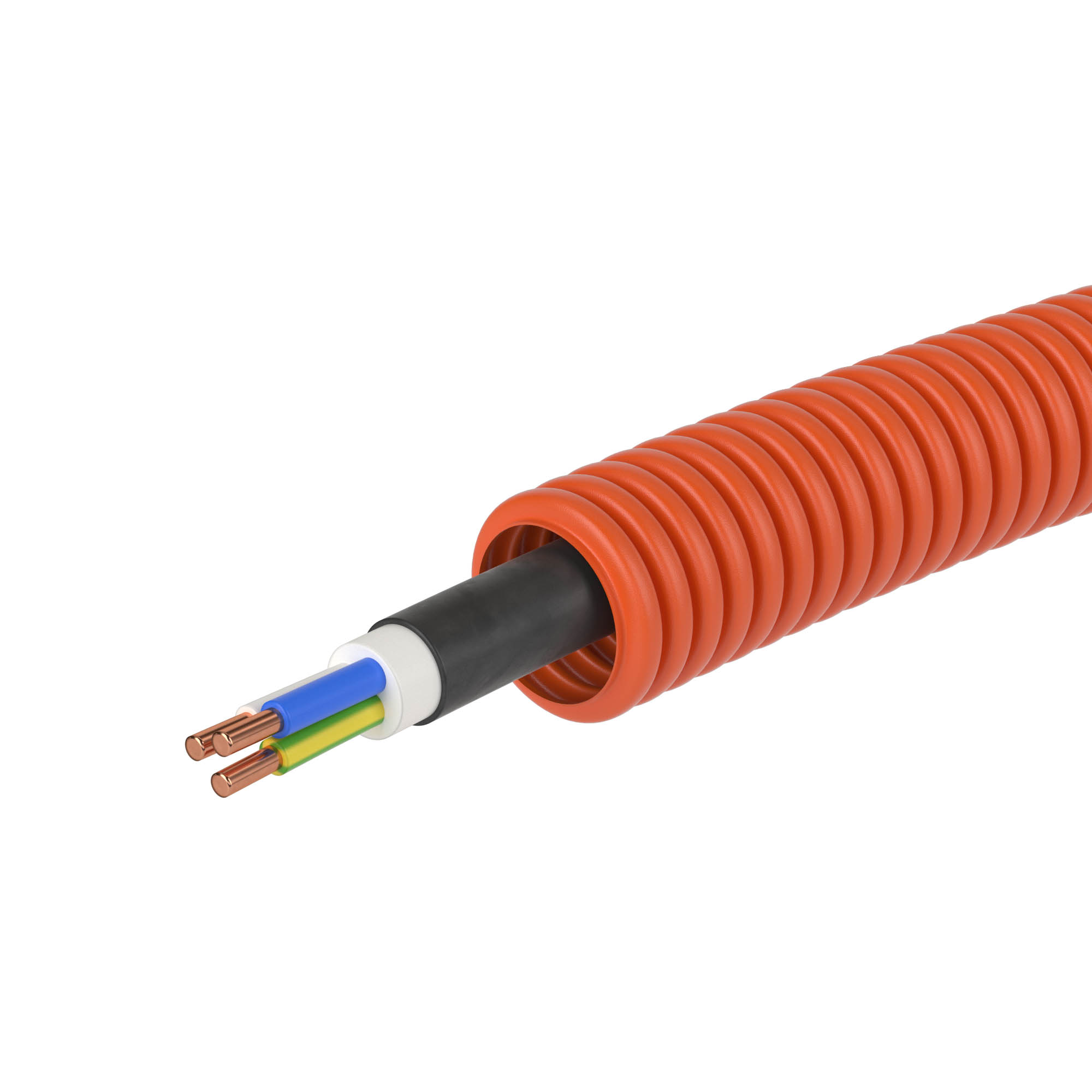

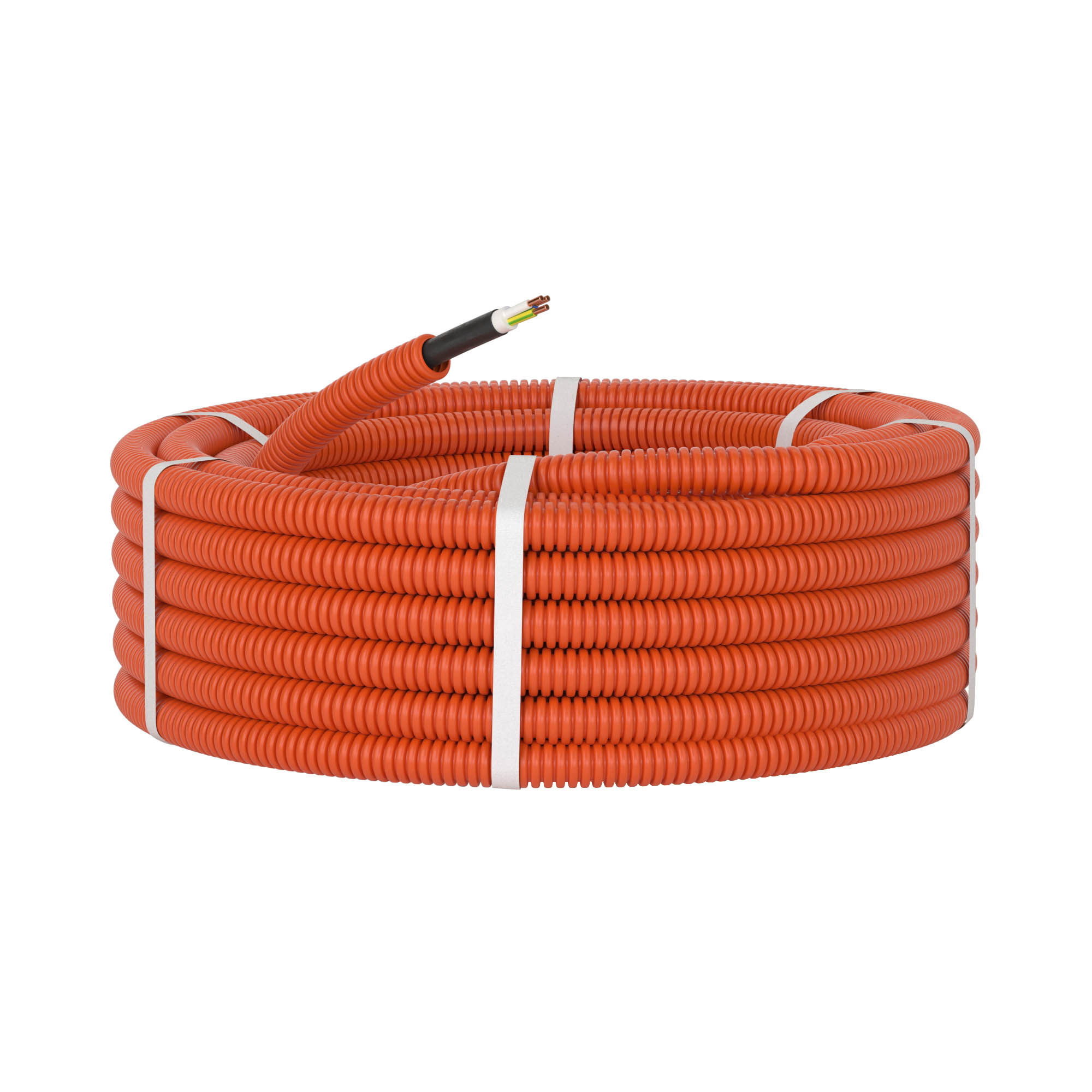

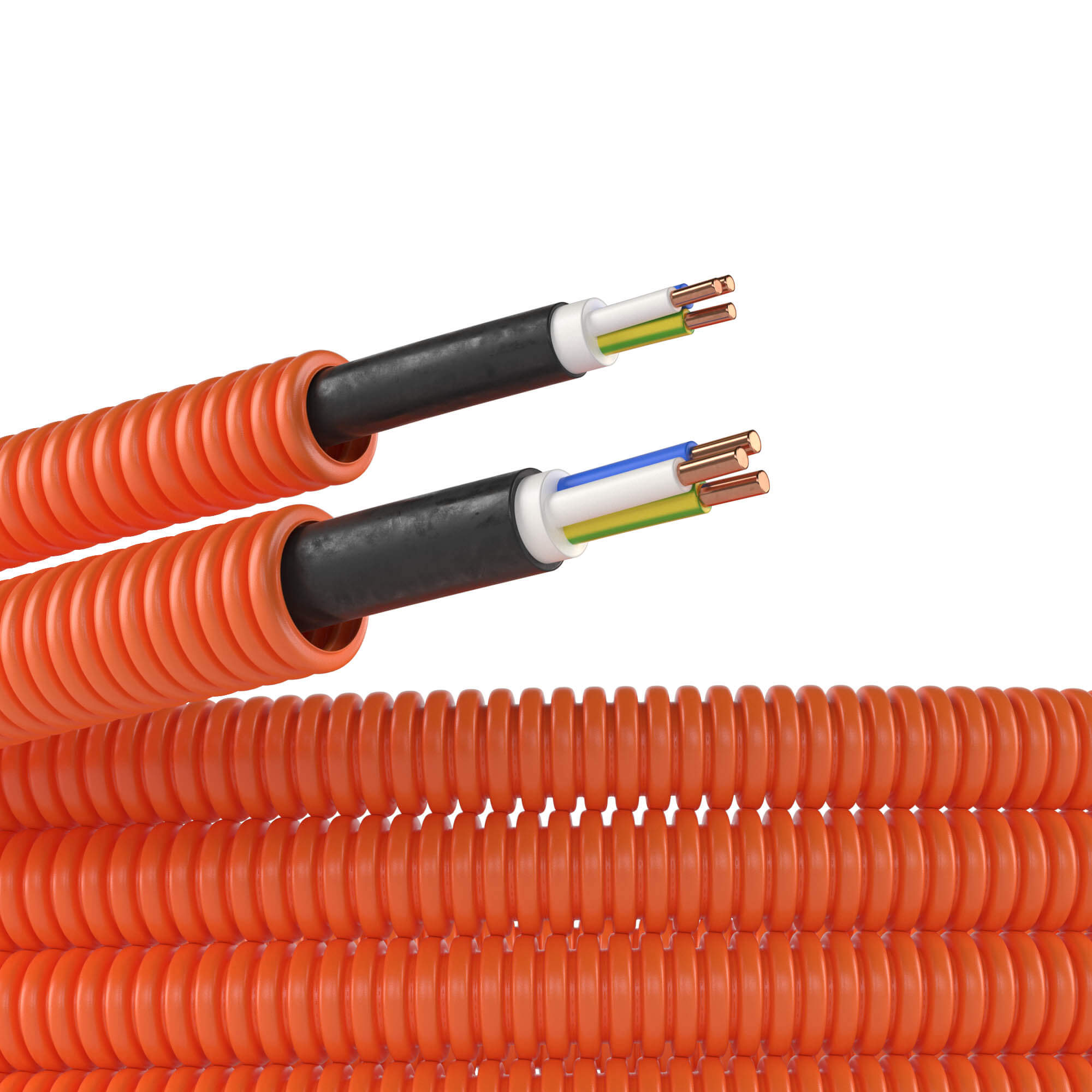

Pre-wired tube HDPE flexible corrugated, Ø 16 mm, orange color, with cable Prysmian LS PVC 2C+E 1,5 mm², 25 m

Code: 7L91625
Code: 7L91625
  • To ask a question
Halogen free No
Operating temperature, °C -45...90
Flush mounted (plaster) Yes
Surface mounted No
Suitable for concrete installation Yes
Suitable for subsurface installation (screed) Yes
Outdoor installation No
Suitable for installation on wood No
Suitable for underground installation No
Impact strength Light (Class 2)
High conducting inner coating No
With draw wire No
Colour Orange
Outer diameter, mm 15.7
Inner diameter, mm 11.3
Material Polyethylene
Bending strength Flexible
-5°С ... +60°С -40°С ... +90°С
Ingress Protection rating, IP IP55
от -25°С до +60°С from -40°С to +90°С
Shock resistance, J >2 at -40°С
Cord for wires No
ТУ 2248-012-47022248-2009 Technical specifications 3491-011-47022248-2003
3 года 3 years
15 лет 15 years
Length 25m
8 диаметров мм 48 mm
Product type Tube HDPE flexible corrugated with cable
