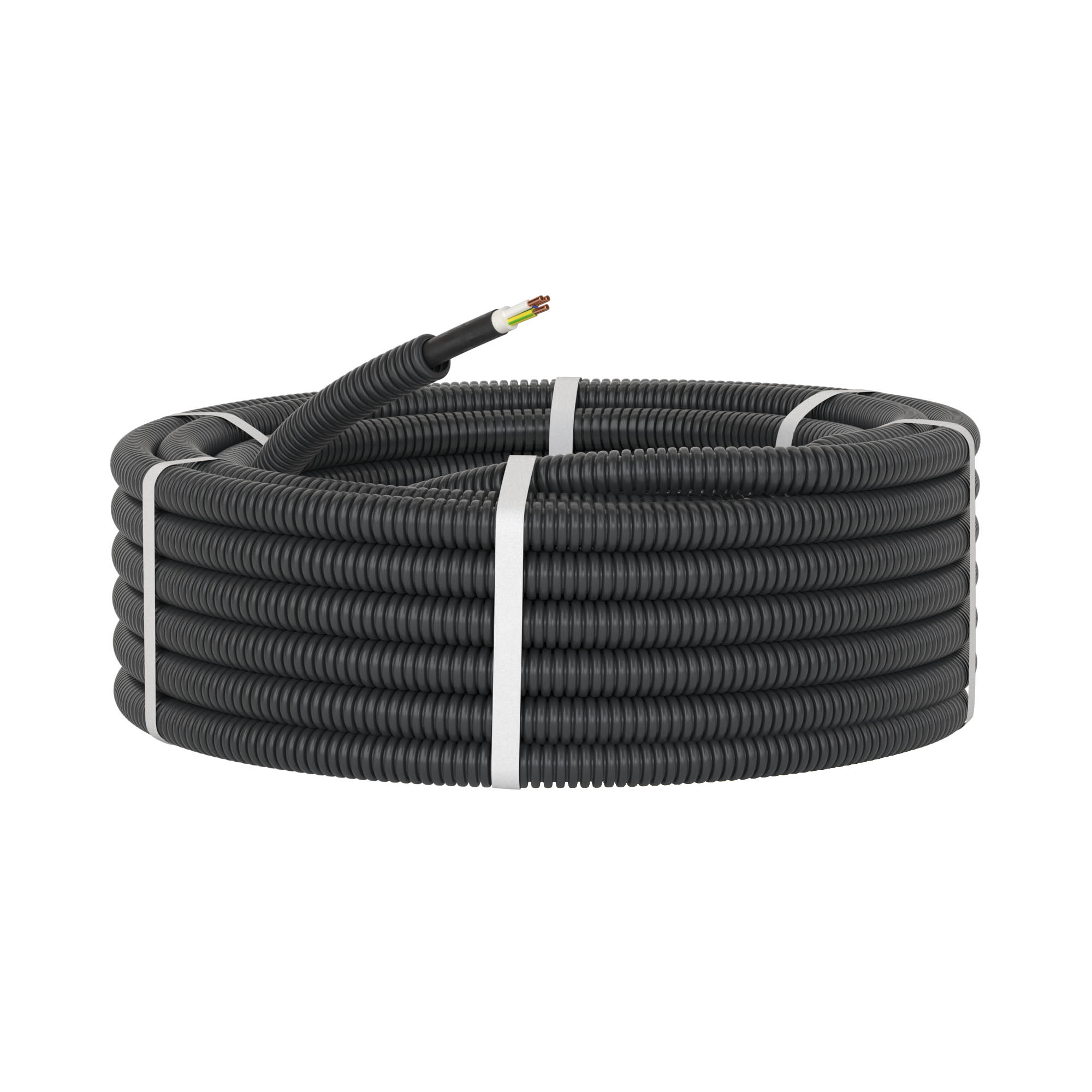

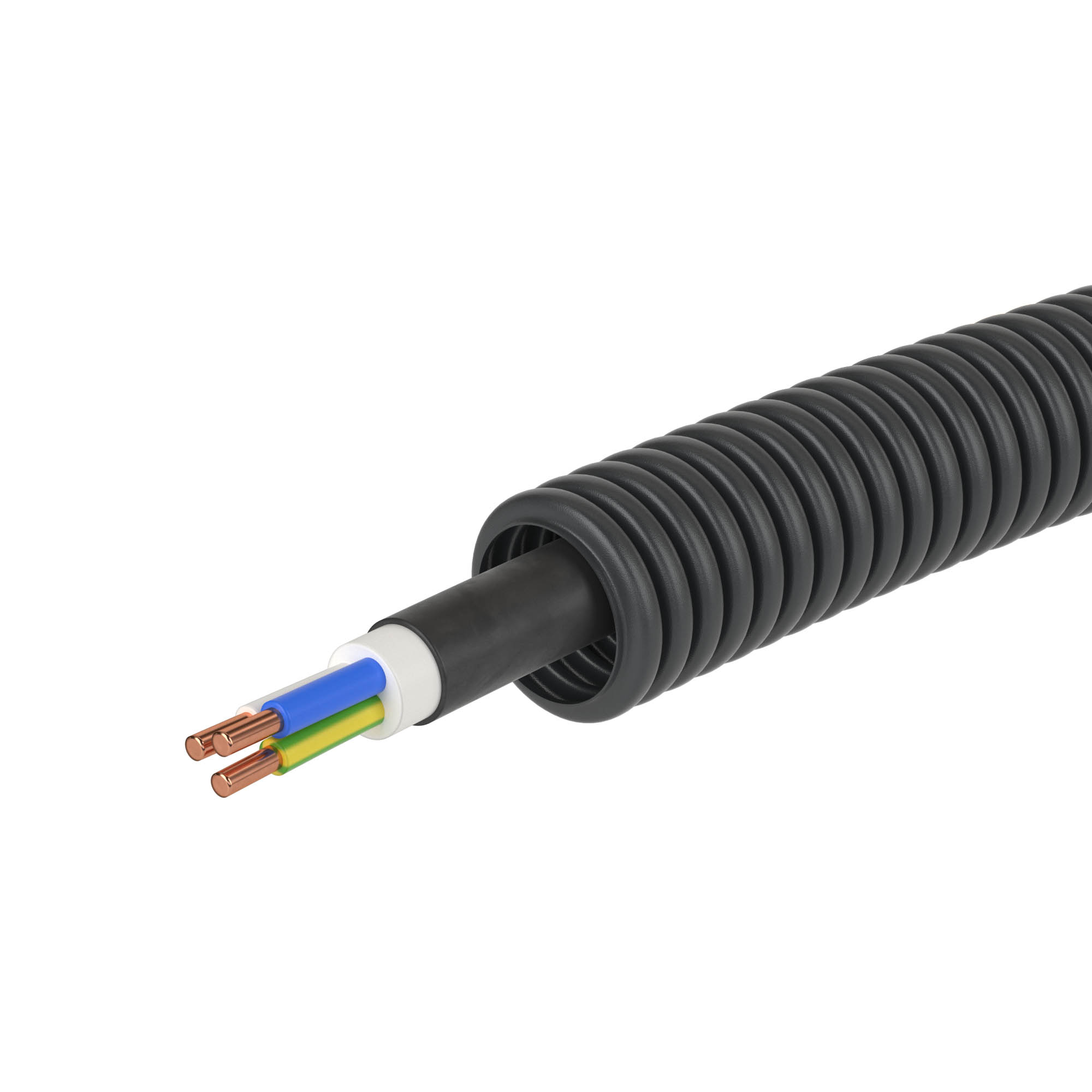

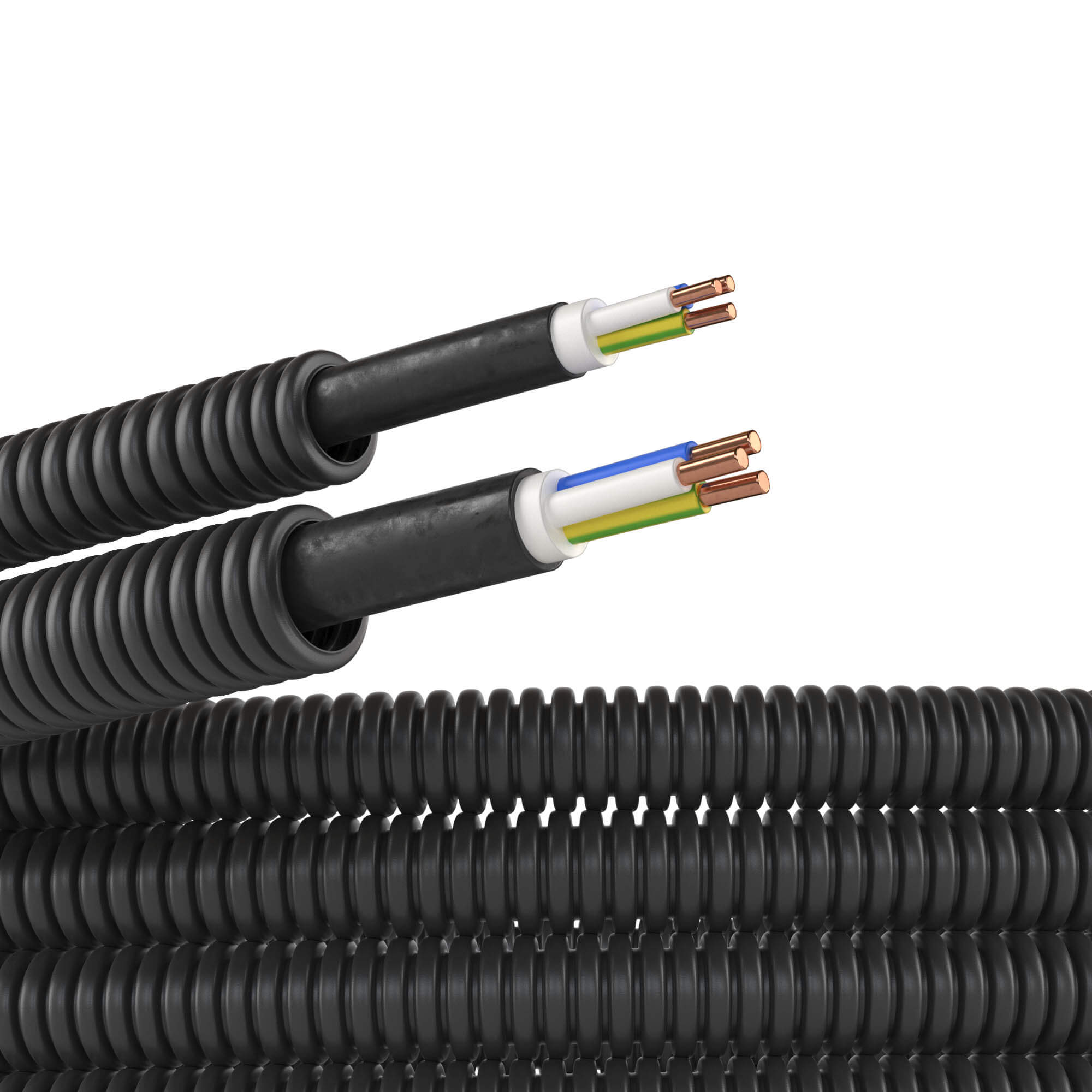

Pre-wired tube HDPE flexible corrugated, Ø 16 mm, black color, with cable Prysmian LS PVC 2C+E 1,5 mm², 25 m
Code:
7L71625
Code:
7L71625
| Halogen free | No |
| Operating temperature, °C | -45...90 |
| Flush mounted (plaster) | Yes |
| Surface mounted | No |
| Suitable for concrete installation | Yes |
| Suitable for subsurface installation (screed) | Yes |
| Outdoor installation | No |
| Suitable for installation on wood | No |
| Suitable for underground installation | No |
| Impact strength | Light (Class 2) |
| High conducting inner coating | No |
| With draw wire | No |
| Colour | Black |
| Outer diameter, mm | 15.7 |
| Inner diameter, mm | 11.3 |
| Material | Polyethylene |
| Bending strength | Flexible |
| -5°С ... +60°С | -40°С ... +90°С |
| Ingress Protection rating, IP | IP55 |
| от -25°С до +60°С | from -40°С to +90°С |
| Shock resistance, J | >2 at -40°С |
| Cord for wires | No |
| ТУ 2248-012-47022248-2009 | Technical specifications 3491-011-47022248-2003 |
| 3 года | 3 years |
| 15 лет | 15 years |
| Length | 25m |
| 8 диаметров мм | 48 mm |
| Product type | Tube HDPE flexible corrugated with cable |
