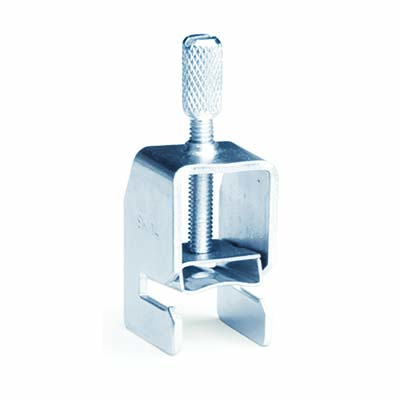

Shield connection clamp,diameter of connected cable 8mm

Code: ZCC8
Shield connection clamp,diameter of connected cable 8mm
Shield connection clamp,diameter of connected cable 8mm
Mounting method Busbar
Width, mm 9
Height, mm 48.7
Flexible No
Length, mm 19.5
Operation temperature, °C 40…80
Width/grid dimension, mm 9
Tinned No
Permitted cable diameter, mm 8
Type of electric connection Screw connection
Drawings
Seria Name Eplan STEP
Quadro - DIN- rail mounting terminal blocks
The System "Quadro"
RAR
27.23 MB
Quadro - DIN- rail mounting terminal blocks
The system "Quadro" - teminal
XLS
300.00 kB
Certificates
Name Document
Quadro_Terminal blocks - Exemption letter for clamps
PDF
4.63 MB
Quadro_Terminal blocks - Exemption letter for connectors brass
PDF
4.60 MB
Quadro - Exemption letter for terminal blocks
PDF
3.10 MB
Certificate of conformity to GOST R for terminal blocks Cabur
PDF
4.74 MB
Quadro_Terminal blocks - Declaration of conformity to GOST R for tools Cabur
PDF
365.92 kB
Certificate of conformity for terminal clamps
PDF
559.21 kB
Certificate of conformity for terminal clamps
PDF
5.25 MB
Certificate of conformity to TR TC 004/2011 for terminal blocks Cabur (series CBS, CBF, DBC)
PDF
1.12 MB
Exemption Letter for the Shield connection clamp and electrical connectors
PDF
233.38 kB
Decision on refusal to conduct mandatory certification for Shield connection clamps and racks for grounding bus
PDF
429.20 kB
Certificate of conformity for terminal blocks of Cabur
PDF
4.00 MB
Show all
