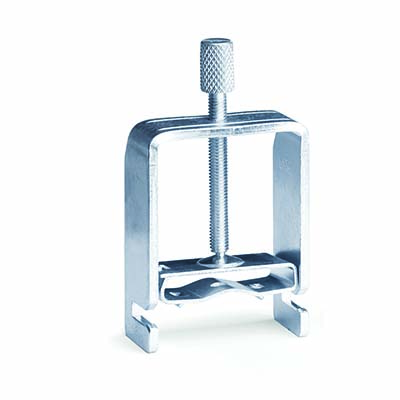

Shield connection clamp,diameter of connected cable 35mm

Code: ZCC35
Shield connection clamp,diameter of connected cable 35mm
Shield connection clamp,diameter of connected cable 35mm
Mounting method Busbar
Width, mm 36.2
Height, mm 110
Flexible No
Length, mm 19.5
Operation temperature, °C 40…80
Width/grid dimension, mm 36.2
Tinned No
Permitted cable diameter, mm 35
Type of electric connection Screw connection
