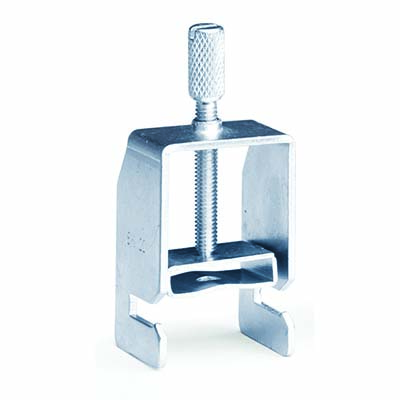

Shield connection clamp,diameter of connected cable 20mm

Code: ZCC20
Mounting method Busbar
Width, mm 21
Height, mm 75
Flexible No
Length, mm 19.5
Operation temperature, °C 40…80
Width/grid dimension, mm 21
Tinned No
Permitted cable diameter, mm 20
Type of electric connection Screw connection
Drawings
Seria Name Eplan STEP
