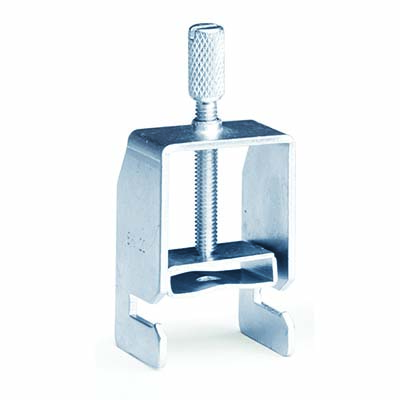

Shield connection clamp,diameter of connected cable 14mm

Code: ZCC14
Mounting method Busbar
Width, mm 14
Height, mm 59.3
Flexible No
Length, mm 19.5
Operation temperature, °C 40…80
Width/grid dimension, mm 14
Tinned No
Permitted cable diameter, mm 14
Type of electric connection Screw connection
