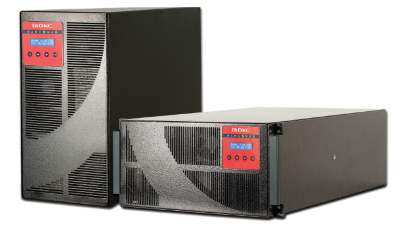

Online UPS (1/1), Tower/Rack, 6 kVA, 30 x 9 Ah
Code: SOLOMD6A30
Online UPS (1/1), Tower/Rack, 6 kVA, 30 x 9 Ah
Code: SOLOMD6A30
Removed from the product range
| Width, mm | 445 |
| Height, mm | 215 |
| Depth, mm | 700 |
| Weight, kg | 110 |
| Bridging time full load, min | 22 |
| Construction type | Free standing model |
| Input voltage, V | 180...276 |
| USV- technology | Online |
| Output effective power, W | 5400 |
| Output apparent power, VA | 6000 |
| Phase | Single-phase |
| Modifications of Output sockets | IEC / terminals |
| Cold start | Yes |
| Auto-restart | Yes |
| Interface | EPO, RS-232, AS400, SNMP |
| External Battery | Yes |
| Service Bypass | Yes |
Accessories
Drawings
| Seria | Name | DWG | STEP |
|---|---|---|---|
|
