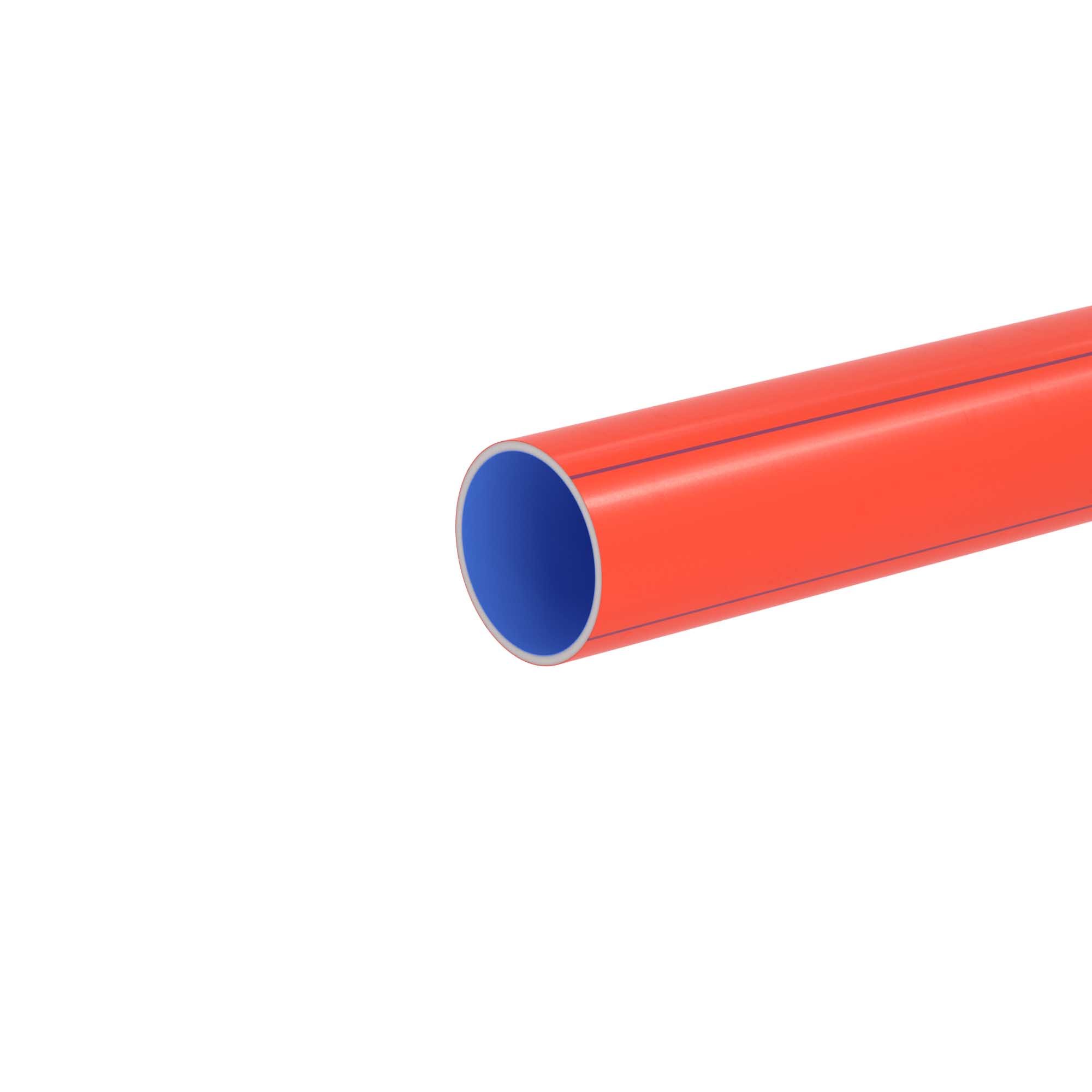

Smooth-walled three-layer polymer pipe d. 160mm SN24 segment 12m, color red
Code:
316010112SN24
Code:
316010112SN24
| Colour | Red |
| Model | Rigid |
| Outer diameter, mm | 160 |
| Shape | Outer - and inner side plain |
| Inner diameter, mm | 139.8 |
| Surface protection | Untreated |
| Material quality | Polyethylene (PE) |
| Material | Plastic |
| Transparent | No |
| Surface polished | No |
| With draw wire | No |
| 15 лет | 50 years |
| Tightness of connections, GOST 14254-94 | IP 68 |
| Number of layers | 3 - layer |
| Ring stiffness | 24 kPa |
| Material | Polymer composition |
| Outer diameter | 160 mm |
| ТУ 2248-012-47022248-2009 | TS 22.21.29-117-47022248-2022 |
| Packing standards | 12 m |
| Compression resistance | Minimum 1250 N |
| Temperature mode of operation | -60 +110 °C |
| Product type | Smooth-walled polymer heat-resistant pipes |
| Packing type | Segments |
| Wall thickness | 10,1 mm |
| Maximum gravity force Fmax | 100 kN |
| Russian Classification of Products by Economic Activities (OKPD 2) | 22.21.29.110 |
| Commodity Nomenclature of Foreign Economic Activity | 3917231009 |
