| Model | 45°-elbow |
| Type of connection | Other |

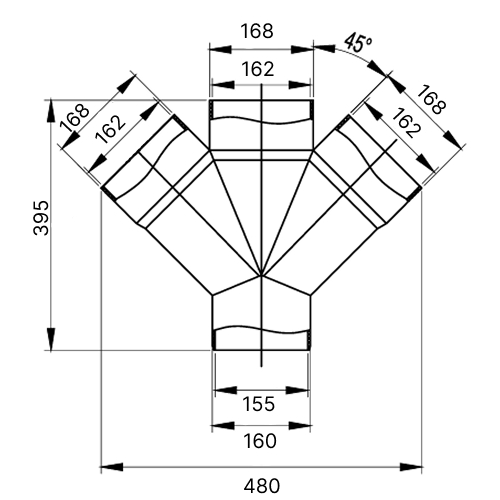

| Total length, mm | 480 |
| Construction type | Other |
| Revolving thread | No |
| Thread type | Other |
| Material sealing | No sealing |
| Lowest inner diameter hose, mm | 155 |
| Total height, mm | 395 |
| Approved in combination with protective conduit UR | No |
| Approved in combination with protective conduit VD TV/GGVS | No |
| Approved in combination with protective conduit CSA | No |
| Approved in combination with protective conduit Lloyd's Register | No |
| Material | Polypropylene (PP) |
| Max. outer diameter hose, mm | 168 |
| Thread material | Other |
| Nominal diameter, mm | 160 |
| Nominal size in inch | Other |
| Degree of protection (IP) | IP40 |
| Approved in combination with protective conduit DIN EN 61386-23 | No |
| Diameter (nominal) | 160 mm |
| Color | Black |
| Material | PVC |
| Ingress Protection rating, IP | IP44 / 55 (with optional seals) |

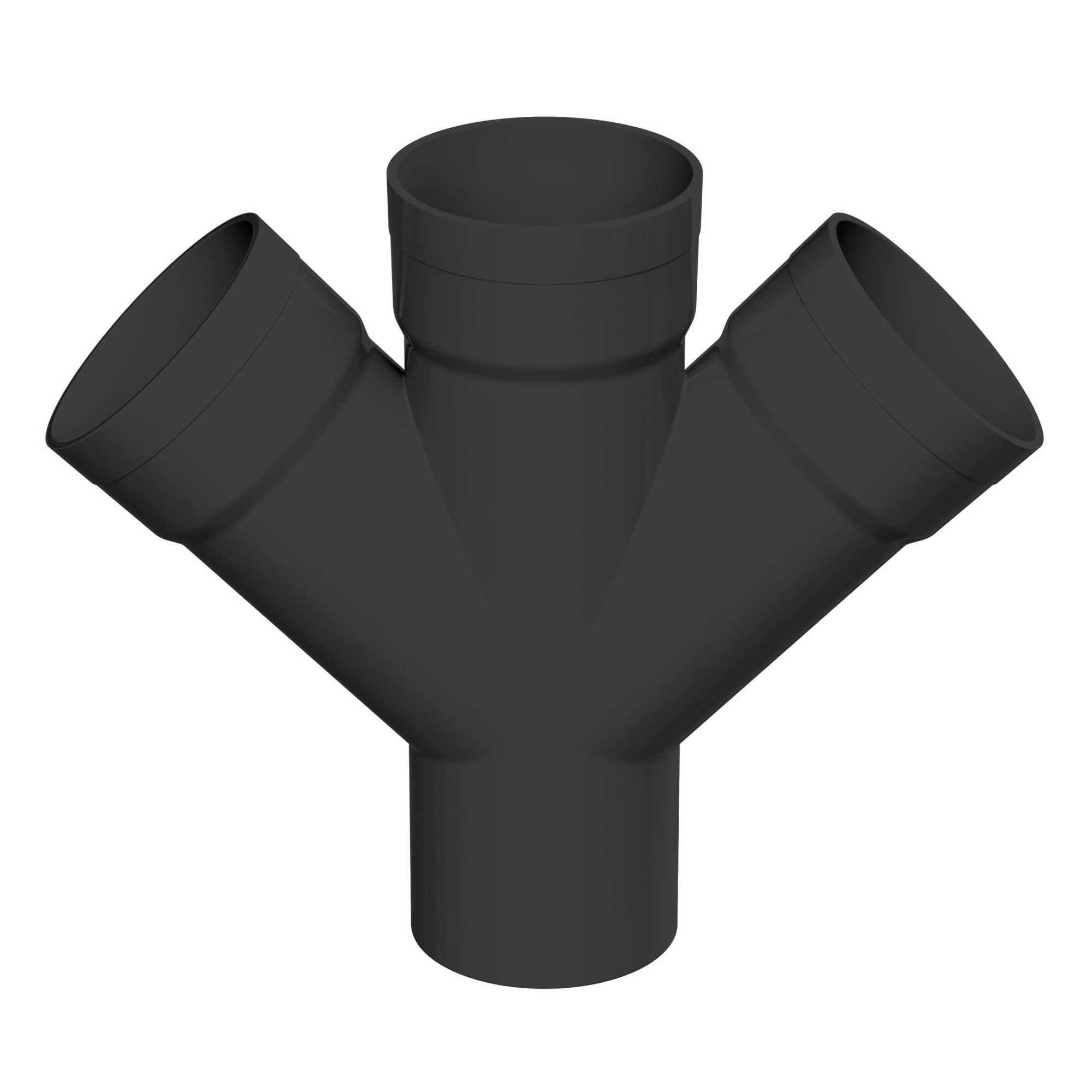

| Product type | Connection for four double-wall tubes 45° |
| ТУ 2248-012-47022248-2009 | Technical specifications 2248-015-47022248-2006 |
| 3 года | 2 years |
| 15 лет | 50 years |
| Russian Classification of Products by Economic Activities (OKPD 2) | 22.21.21.129 |
| Commodity Nomenclature of Foreign Economic Activity | 3917400009 |
