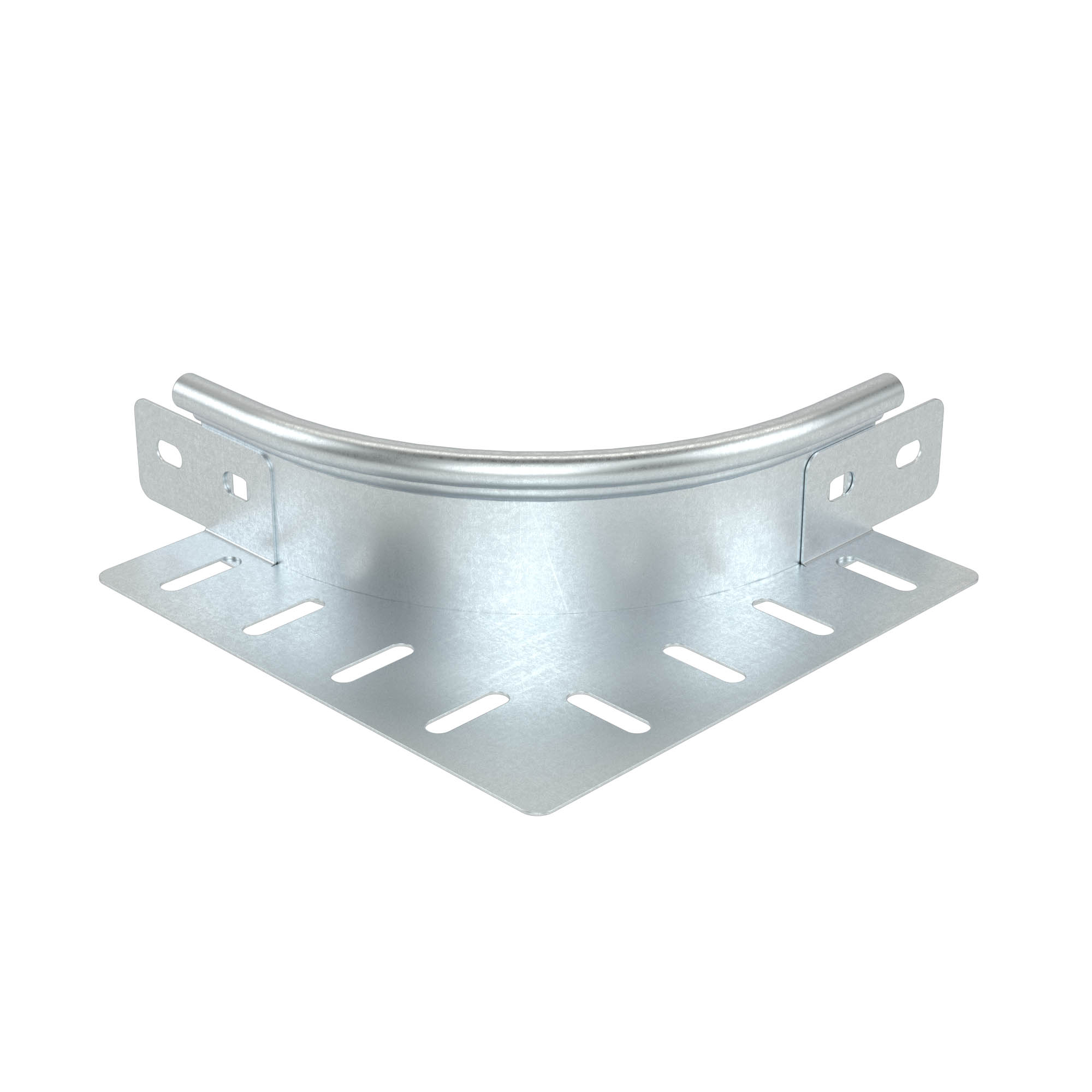

Universal Horizontal Elbow 90° H50

Code: SCG90500
Colour Light grey
Model Without connector
Surface protection Sendzimir galvanized
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation No
Material quality Other
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 100
Cable tray width, mm 600
Cable tray height, mm 50
Change of direction Horizontal
NATO-mounting holes No
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No
