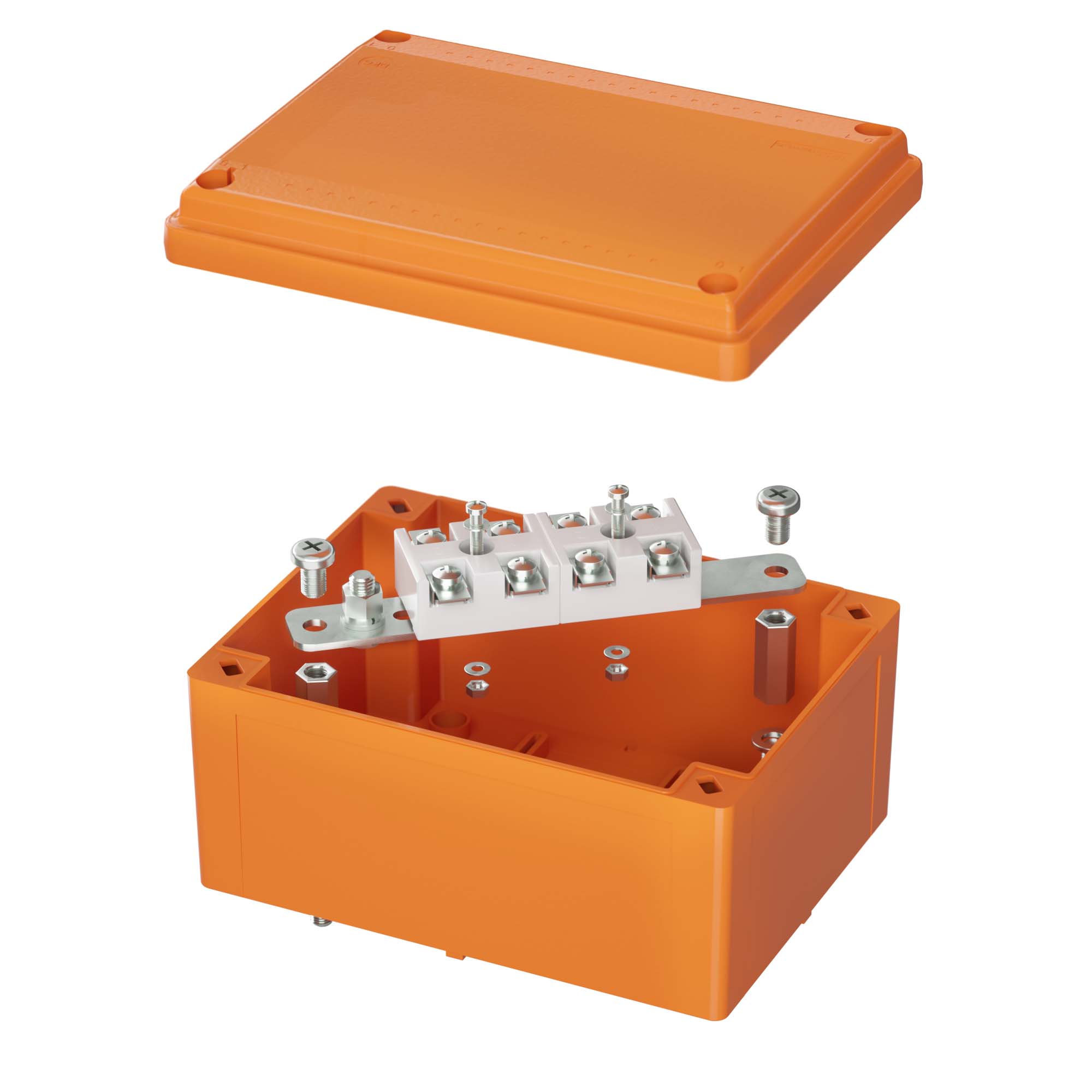

FS FireBox 150х110х70 mm, IP56,smooth walls, made of plastic with 4-pole terminal block, 450V,32A, 10  square millimeter with  stain

Code: FSK20410
Mounting method Universal
Colour Orange
Width, mm 150
Halogen free Yes
Depth, mm 70
Surface protection Other
Rated insulation voltage Ui, V 450
Length, mm 150
Sealable No
Circuit integrity Other
Material Plastic
Operating temperature, °C -25…60
Explosion-tested version No
Cover attachment Screwed
Max. conductor cross section, mm² 10
With screening No
Weatherproof Yes
Degree of protection (IP) IP55
Inlet from the rear No
For Ex-zone gas None
Tackable No
For Ex-Zone dust None
Shape Rectangular
For tubediameter Other
Type of housing feed-through Thread
Cover Not transparent
Equipped with Mounting plate
Number of inlets 8
Certificates
Name Document
