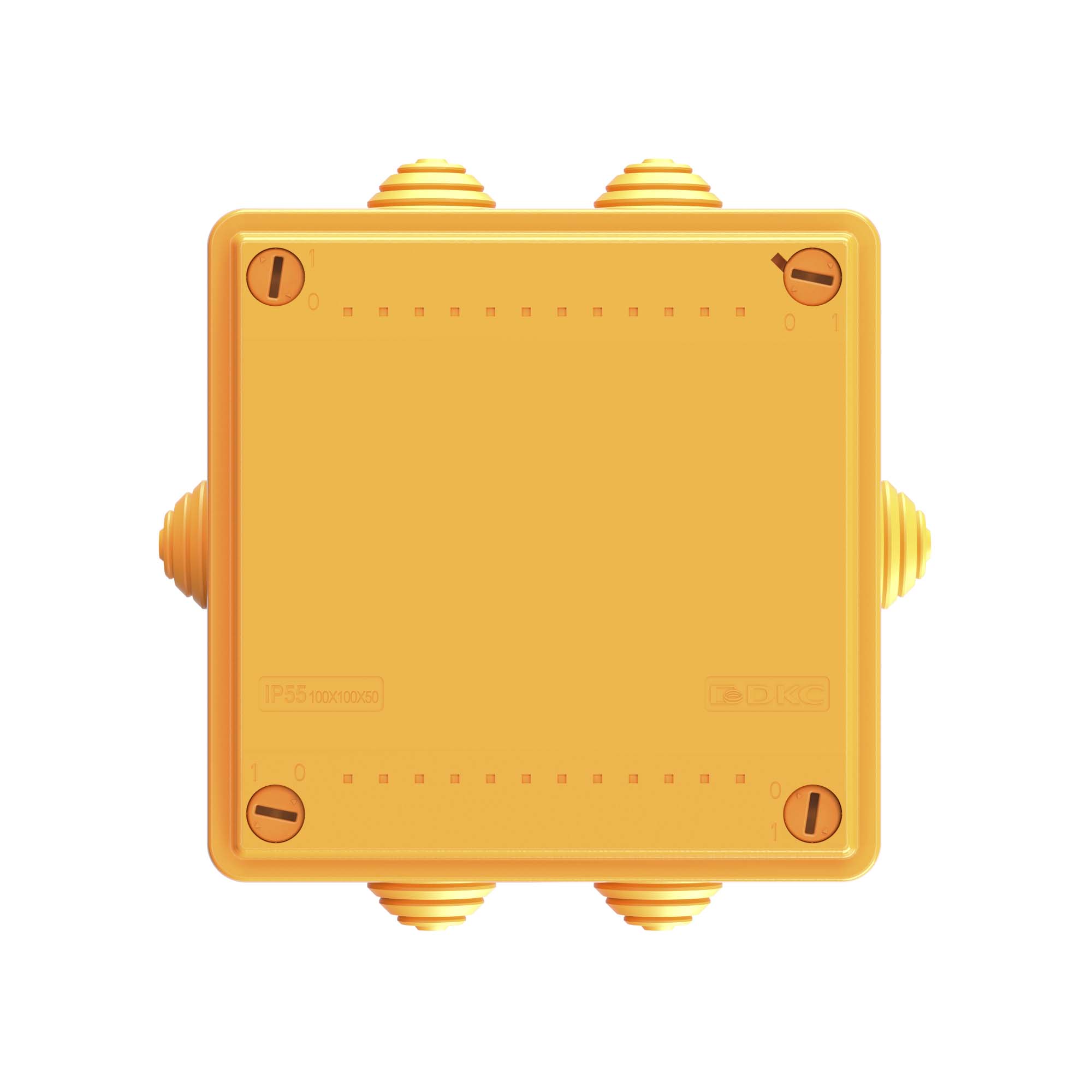

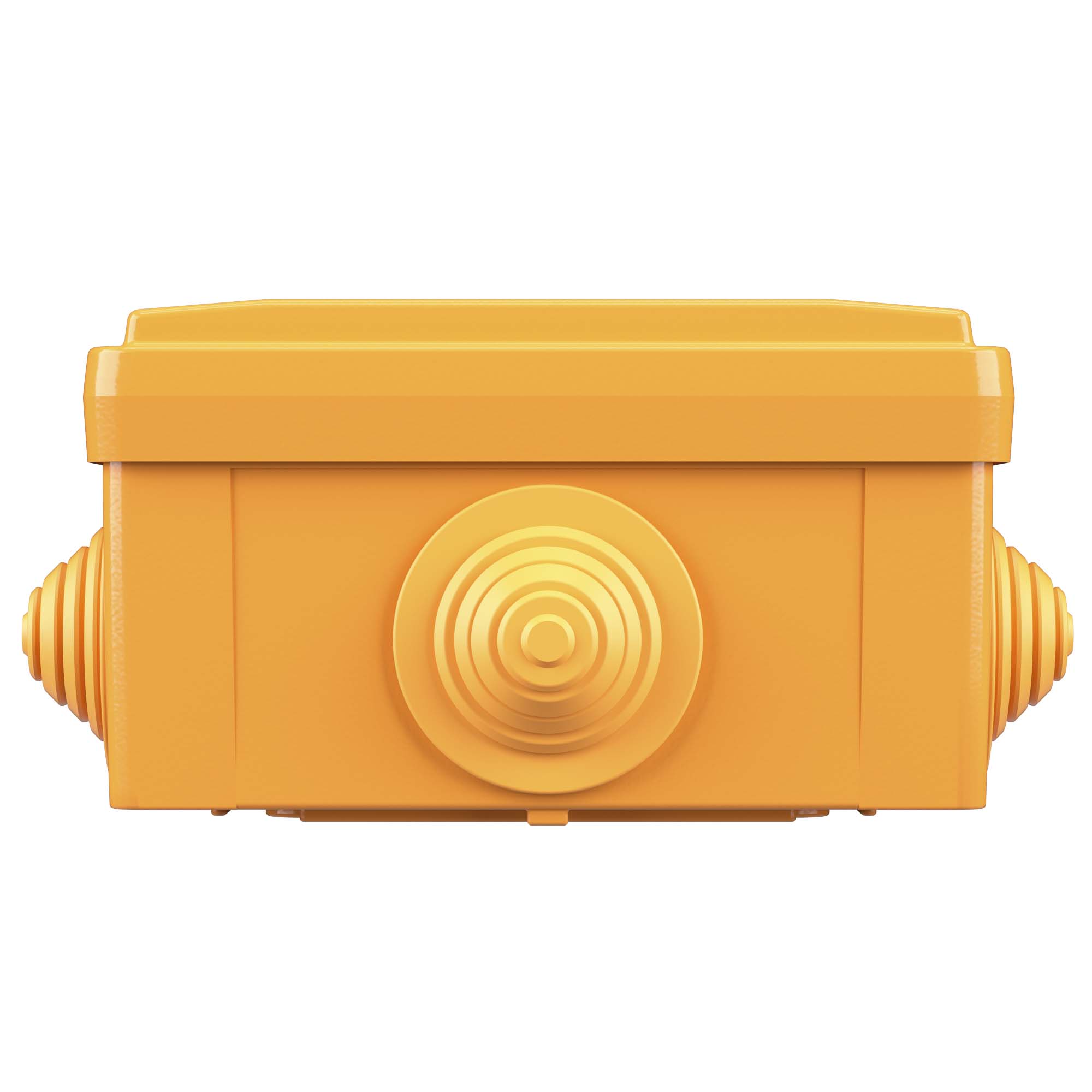

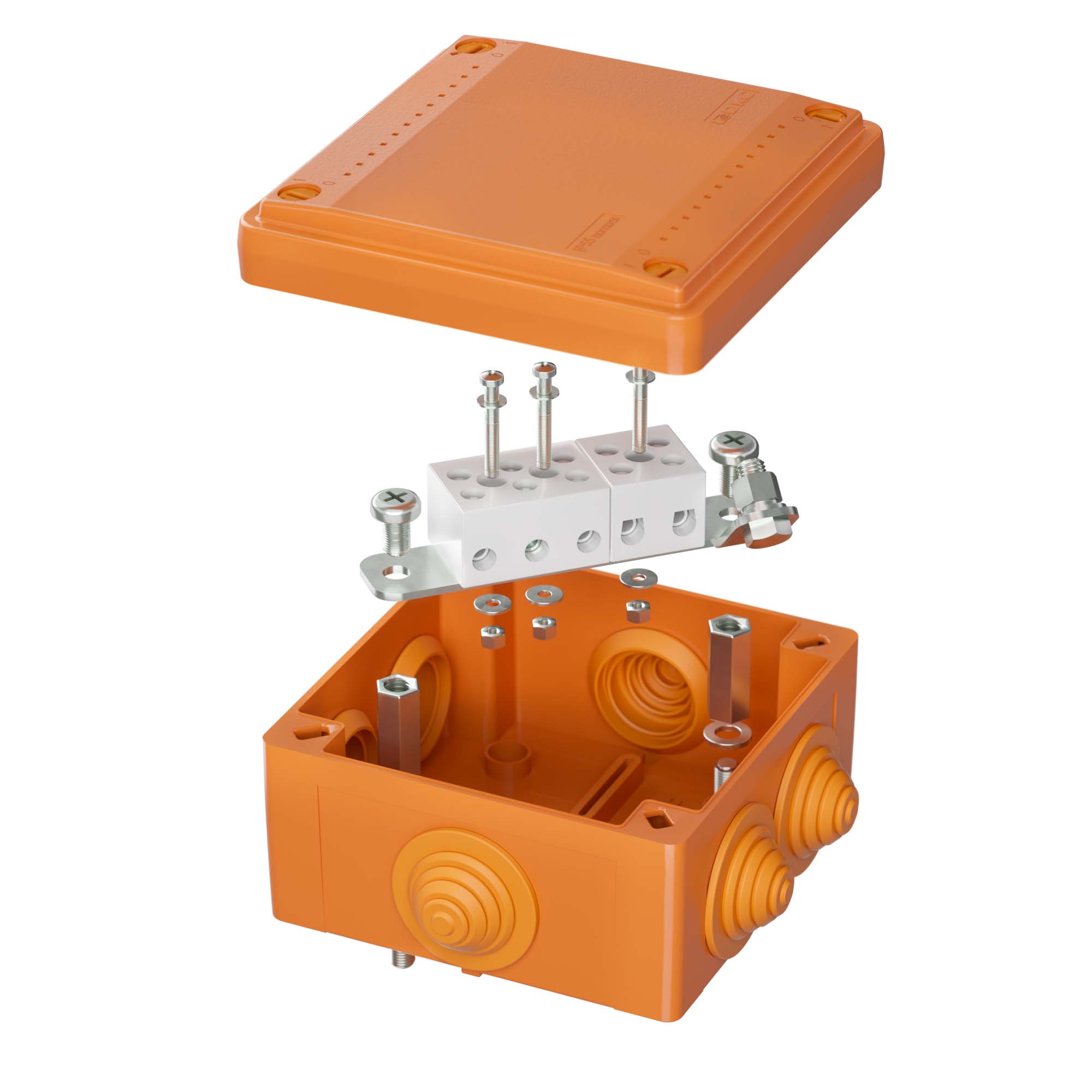

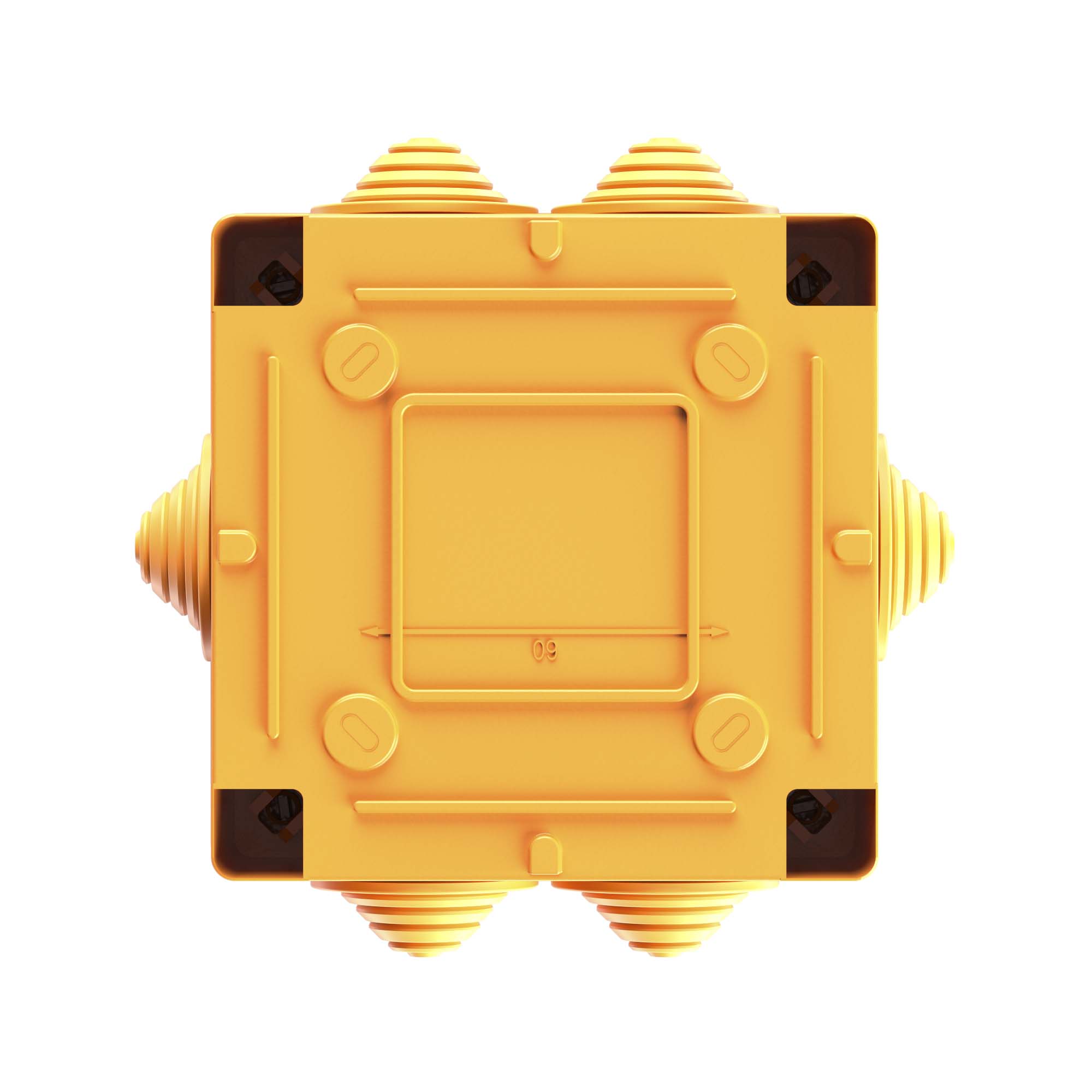

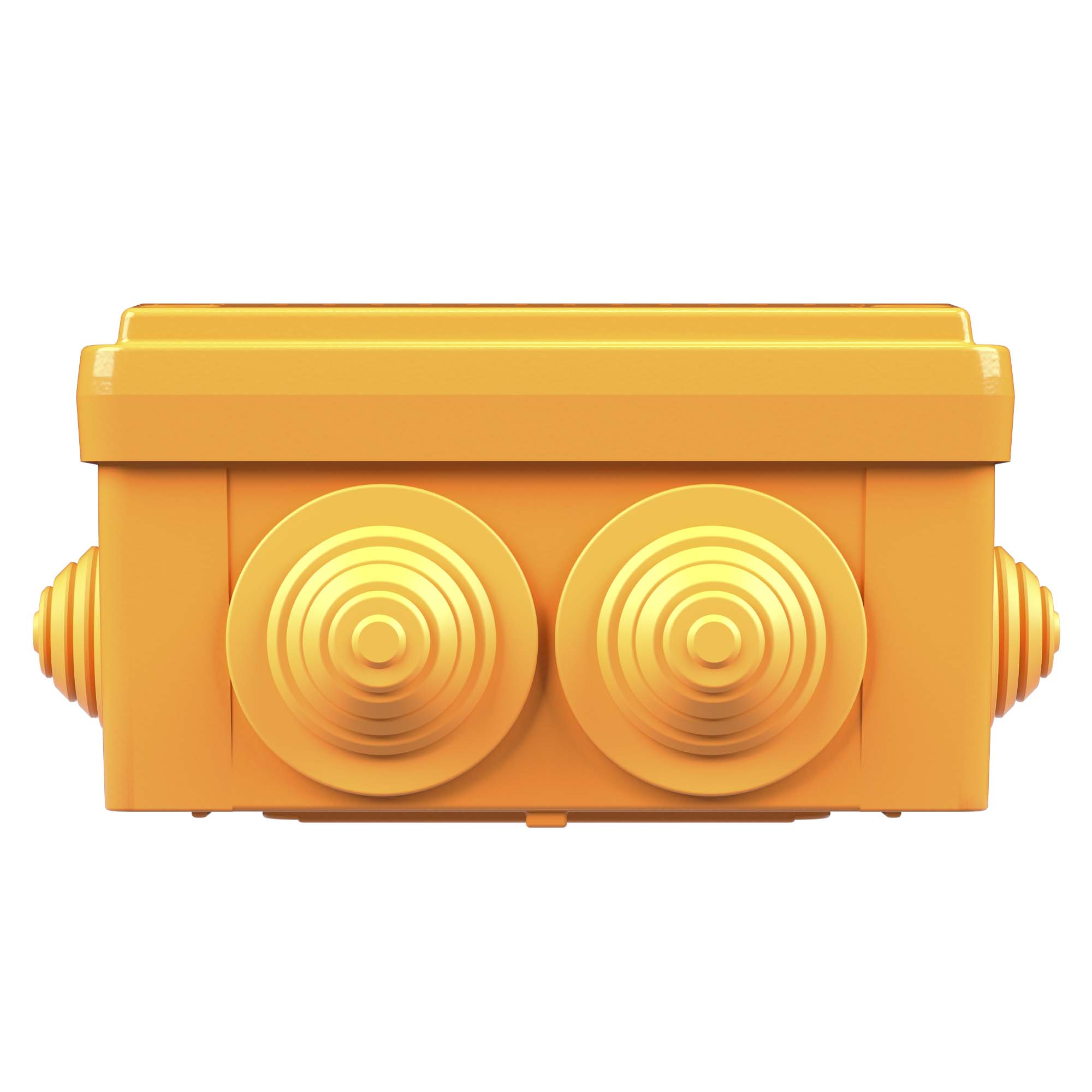

FS FireBox 100х100х50 mm, IP55, with cable glands, plastic, 5p, 450V, 20A, 10 mm2

Code: FSB11510

FS FireBox 100х100х50 mm, IP55, with cable glands, plastic, 5p, 450V, 20A, 10 mm2

Code: FSB11510
Depth, mm 50
Surface protection Untreated
Rated insulation voltage Ui, V 450
Length, mm 100
Sealable Yes
Material Plastic
Number of inlets 8
Explosion-tested version Yes
Cover attachment Screwed
Max. conductor cross section, mm² 10
With screening Yes
Weatherproof Yes
Degree of protection (IP) IP55
Inlet from the rear Yes
For Ex-zone gas None
Tackable Yes
For Ex-Zone dust None
Shape Rectangular
Type of housing feed-through Trimmable step membrane
Equipped with Mounting plate
Colour Orange
Width, mm 100
Circuit integrity None
Operational temperature, °C -25...60
Material Special thermoplastic
Q'ty of poles 5p
Wire cross section 0,5–10,0 sq. mm
Availability of cable entries Yes
Diameter of the inputs 25 mm
Q'ty of inners 6 pcs
Current 20А
от -25°С до +60°С From - 25 to +60
Degree of protection IP55
Functionality 45 min
