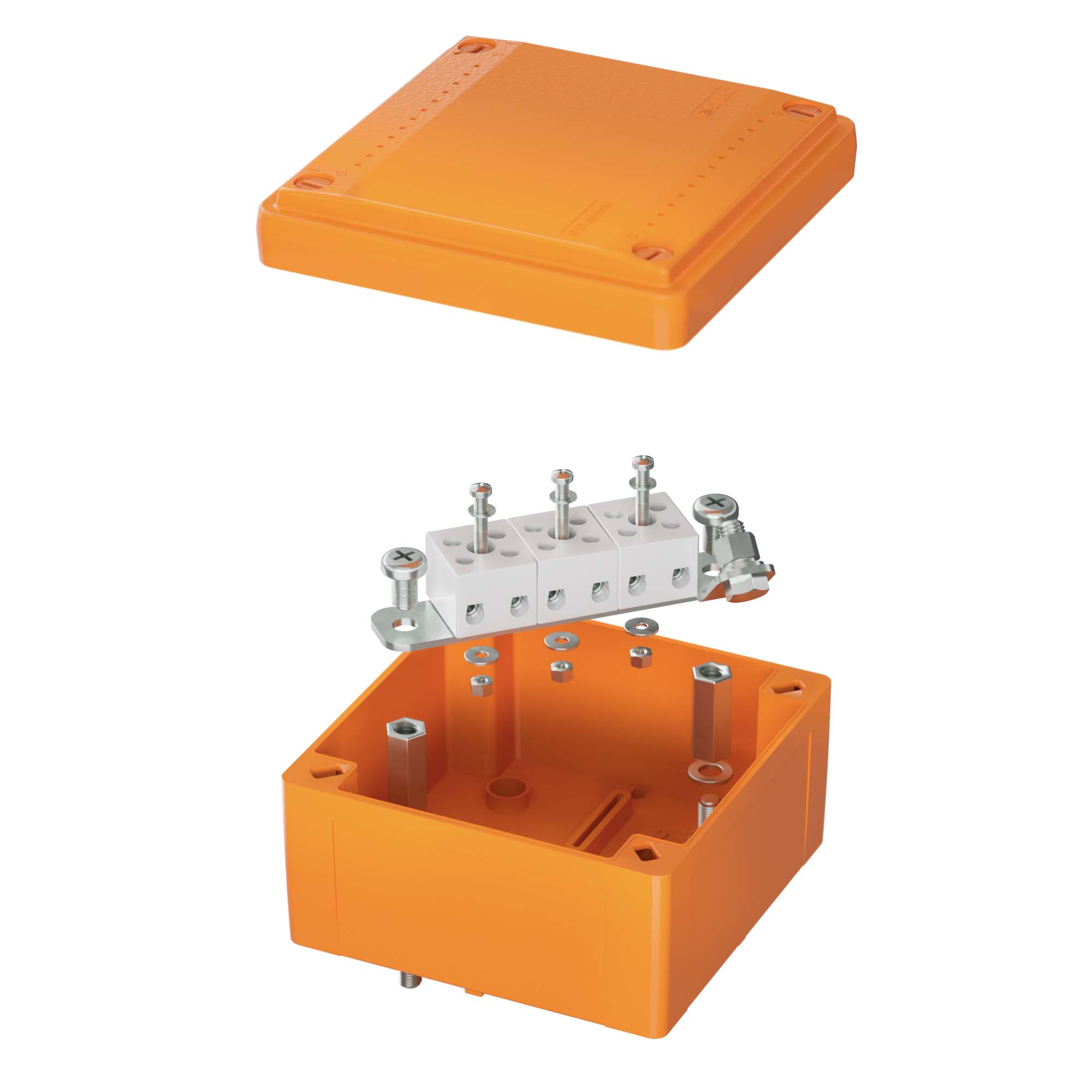

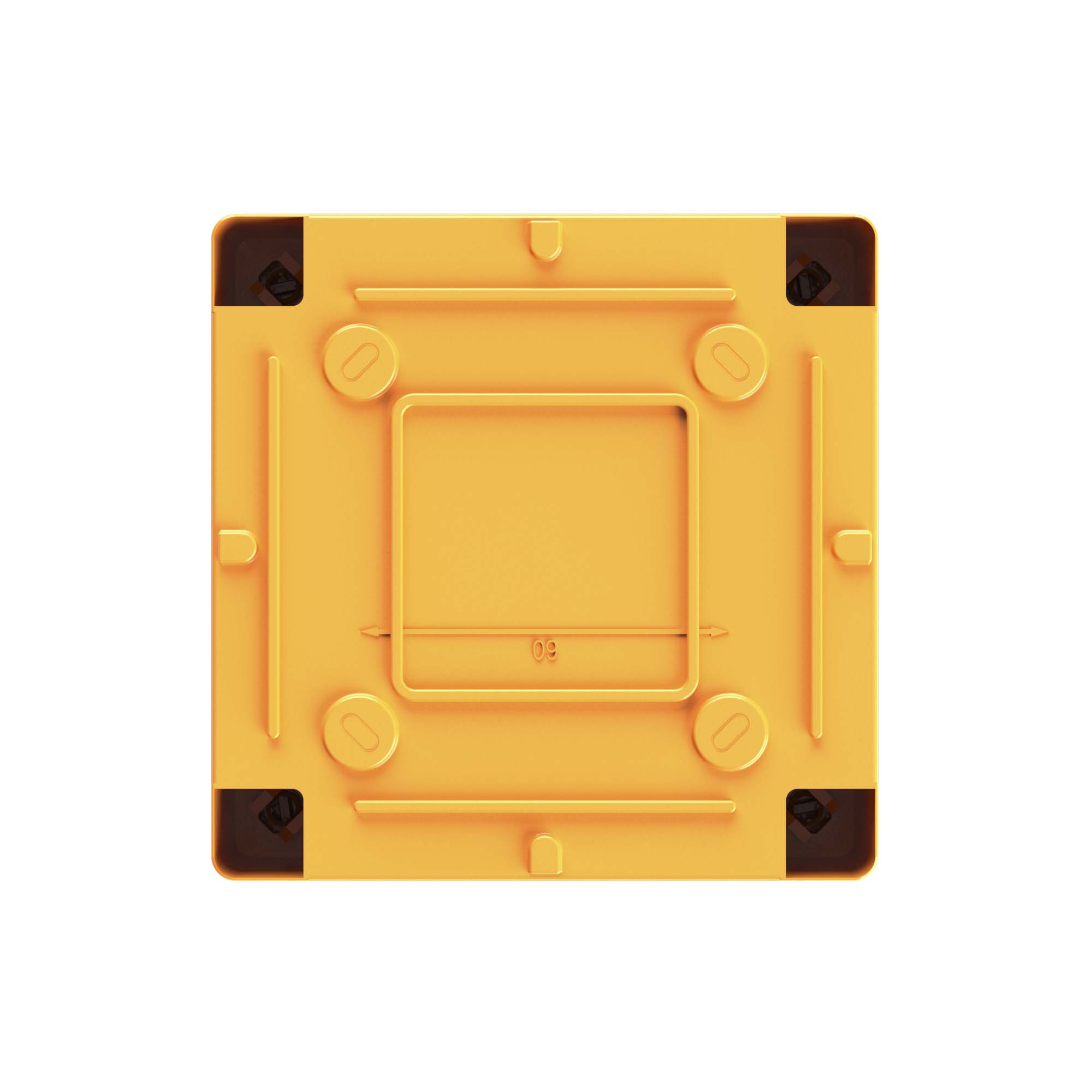

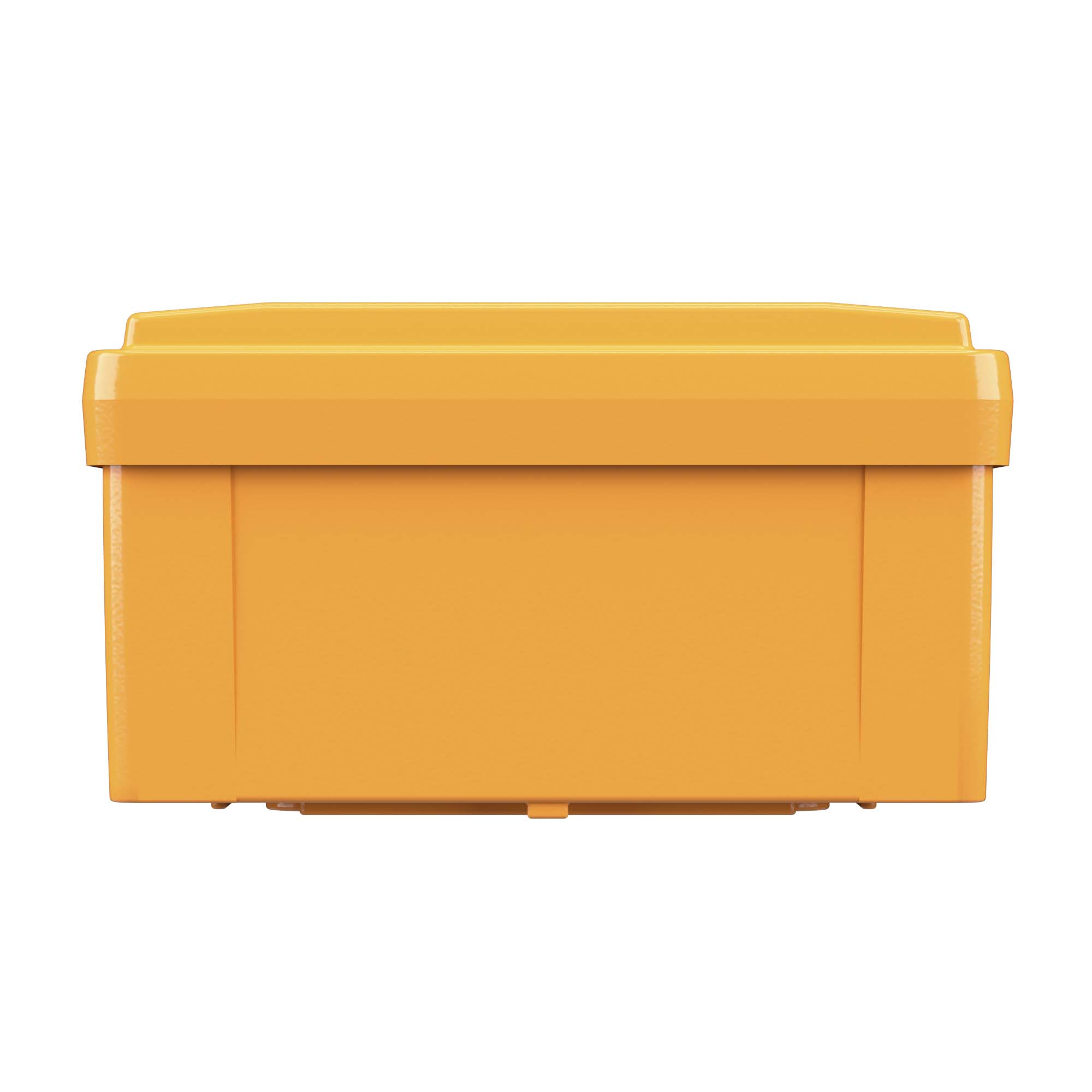

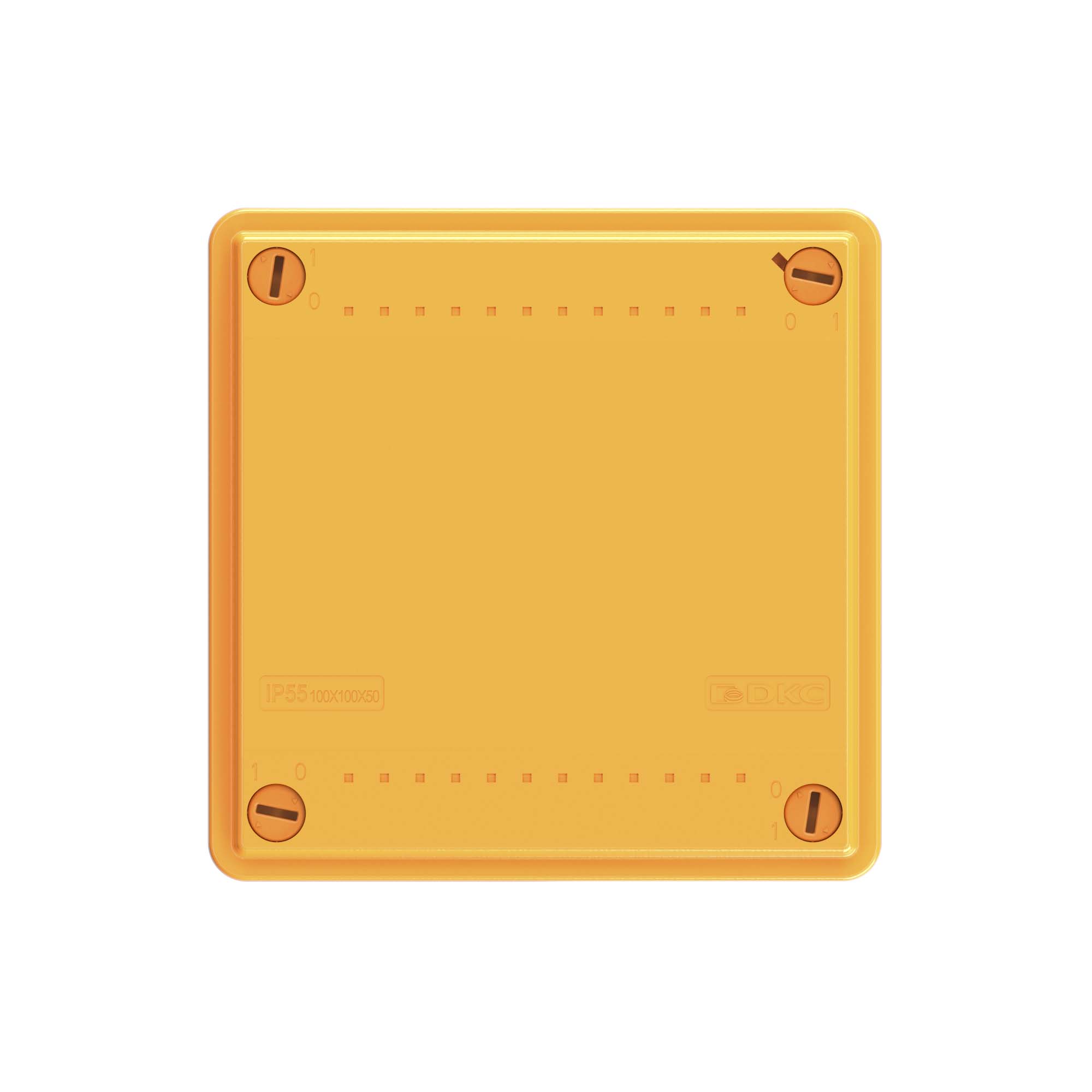

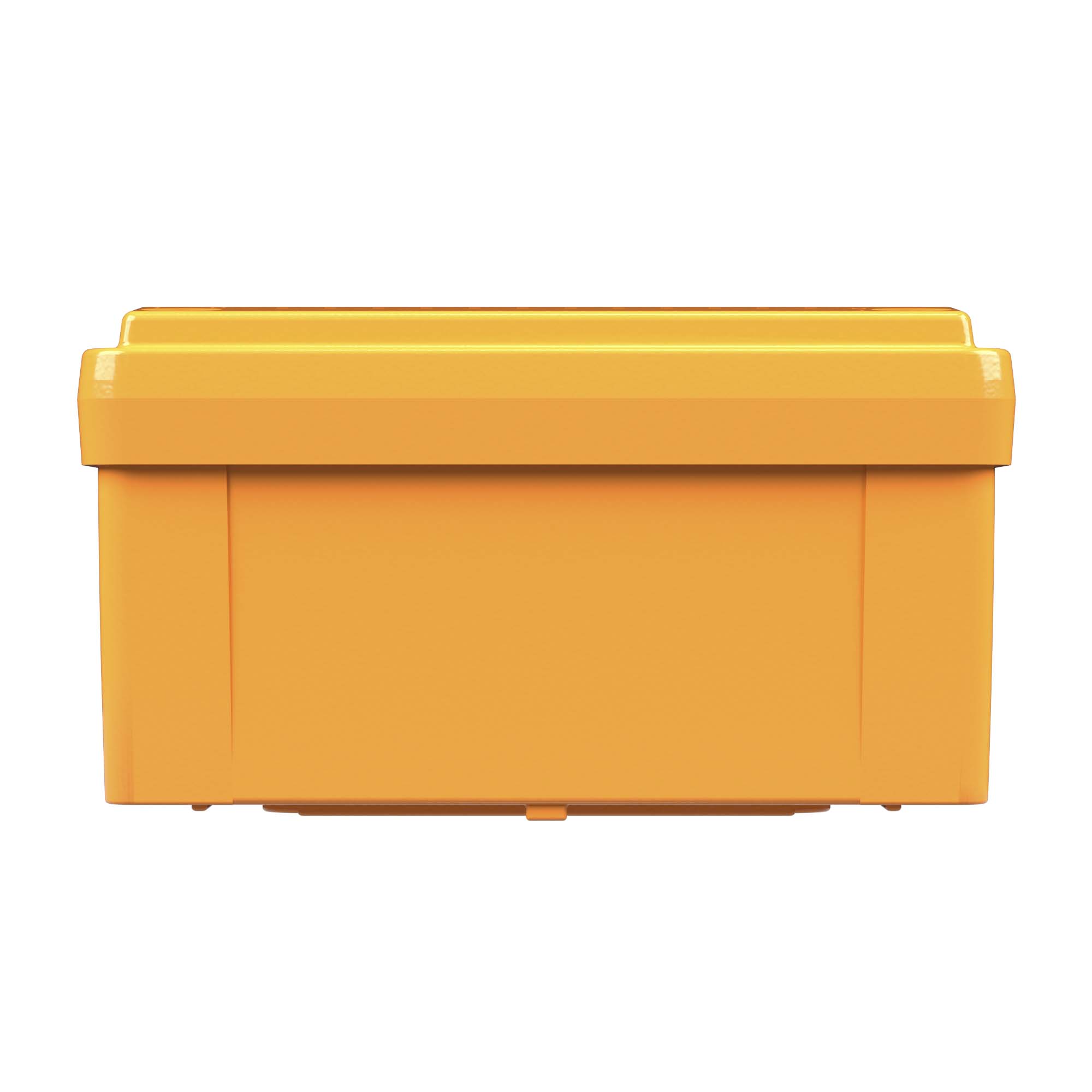

FS FireBox 100х100х50 mm, IP56, smooth walls, plastic, 5p, 450V, 10A, 6 mm2

Code: FSB10506

FS FireBox 100х100х50 mm, IP56, smooth walls, plastic, 5p, 450V, 10A, 6 mm2

Code: FSB10506
Mounting method Universal
Colour Orange
Width, mm 100
Depth, mm 50
Surface protection Untreated
Rated insulation voltage Ui, V 450
Length, mm 100
Sealable Yes
Material Plastic
Explosion-tested version Yes
Cover attachment Screwed
Max. conductor cross section, mm² 6
With screening Yes
Weatherproof Yes
Degree of protection (IP) IP56
Inlet from the rear Yes
For Ex-zone gas None
Tackable Yes
For Ex-Zone dust None
Shape Rectangular
Type of housing feed-through Thread
Equipped with Mounting plate
Number of inlets 8
Circuit integrity None
Operational temperature, °C -25...60
Material Special thermoplastic
Q'ty of poles 5p
Wire cross section 0,5–6,0 sq. mm
Availability of cable entries No
Diameter of the inputs 25 mm
Q'ty of inners 6 pcs
Current 10А
от -25°С до +60°С From - 25 to +60
Degree of protection IP56
Functionality 45 min
