| Mounting method | Защелки + винтовое крепление |
| Colour | Grey |
| Width, mm | 204 |
| Height, mm | 85.5 |
| Depth, mm | 204 |
| RAL-number | 7035 |
| Voltage type | AC |
| Suitable for 19 inch rack mounting | No |
| Number of fans | 1 |
| EMC-version | Yes |
| Degree of protection (IP) | IP54 |
| With protective cover | Yes |
| With filter | Yes |
| Rated power, W | 26 |
| Roof ventilator | No |
| Built as slide-in ventilator | No |
| Volume flow, freeblowing, m³/h | 200 |
| Air circulator | No |
| Wall build in | Yes |
| Noise emission, dB(A) | 62 |
| Operating voltage at AC 50 Hz, V | 380...380 |
| Operating voltage at AC 60 Hz, V | 380...380 |
| Product type | Fan |
| Mounting type | Wall-mounted |
| Rated voltage | 380 VAC, 3 p, 50/60 Hz |
| EMC-version | Yes |
| Code of ventilation grille | R5MCF20 |

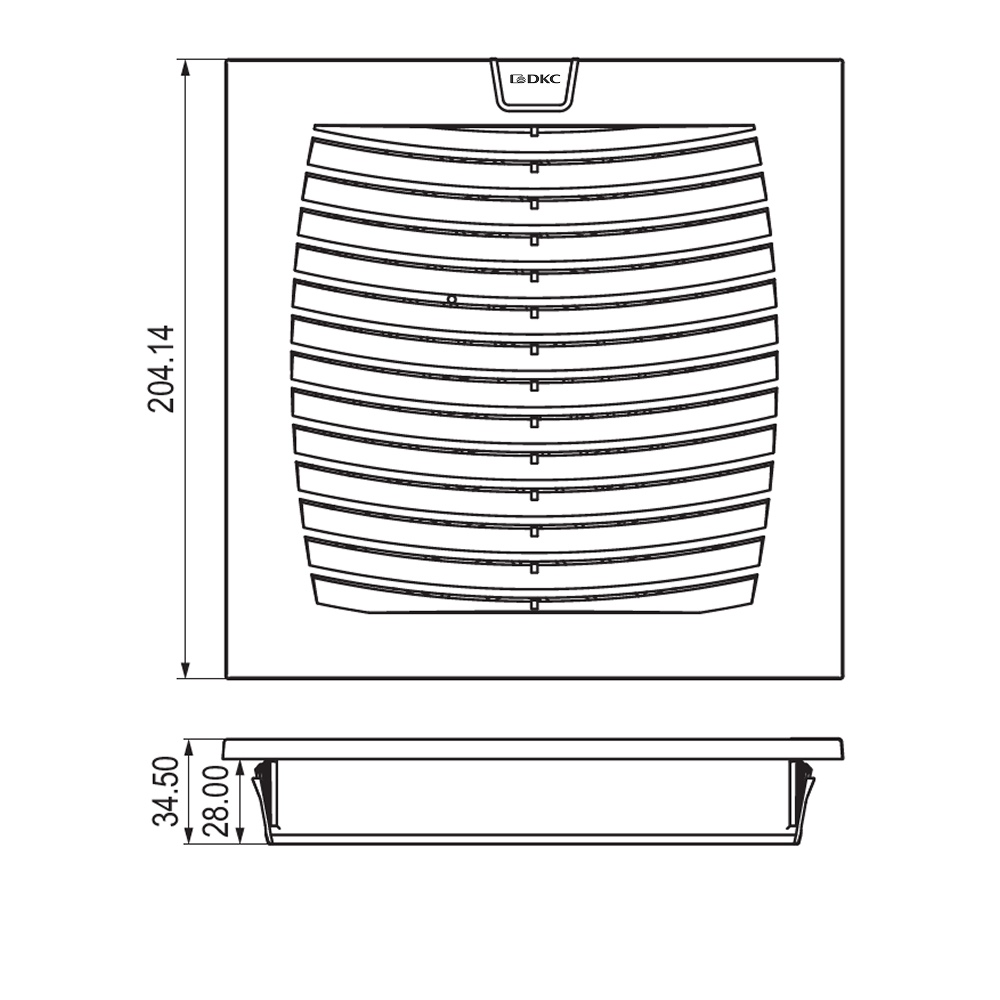

| External dimensions (W x H x D) | 204 x 204 x 85,5 mm |

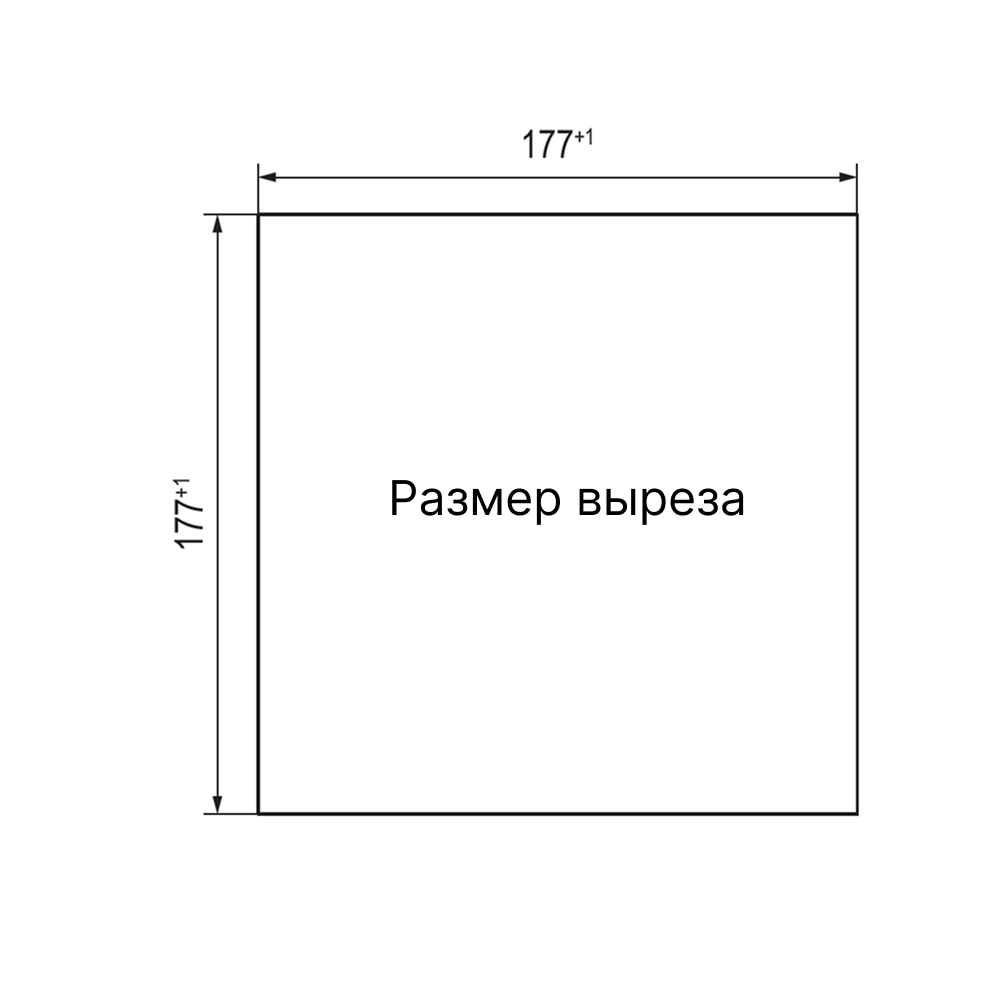

| Required mounting cut-out (W x H) | 177 x 177 mm |
| Degree of protection | IP54 |
| Material | ABS plastic |
| Operating temperature range | –25...+65 ˚C |
| Storage temperature range | –40...+70 ˚C |
| Humidity range | Not more than 90 % (without condensation) |
| Noise level | 62 dB(A) |
| Operating current | 0,13 А |
| 3 кВА (максимальный входной ток 13,6 А) | 26 W |
| air flow without filter | 272 m3/h |
| air flow with filter | 200 m3/h |
| Fan speed | 2730 rpm./min. |
| Service life (MTBF) | 50000 h |
| Filter class | G4 |
| Color | RAL 7035, light grey |
| Type of contactors | 204 x 204 mm |
