| Mounting method | Защелки + винтовое крепление |
| Colour | Grey |
| Width, mm | 152 |
| Height, mm | 72.5 |
| Depth, mm | 152 |
| RAL-number | 7035 |
| Voltage type | AC |
| Suitable for 19 inch rack mounting | No |
| Number of fans | 1 |
| EMC-version | Yes |
| Degree of protection (IP) | IP54 |
| With protective cover | Yes |
| With filter | Yes |
| Rated power, W | 19 |
| Roof ventilator | No |
| Built as slide-in ventilator | No |
| Volume flow, freeblowing, m³/h | 100 |
| Air circulator | No |
| Wall build in | Yes |
| Noise emission, dB(A) | 48 |
| Operating voltage at AC 50 Hz, V | 115...230 |
| Operating voltage at AC 60 Hz, V | 115...230 |
| Product type | Fan |
| Mounting type | Wall-mounted |
| Rated voltage | 115&230 VAC, 1 p, 50/60 Hz |
| EMC-version | Yes |
| Code of ventilation grille | R5MCF15 |

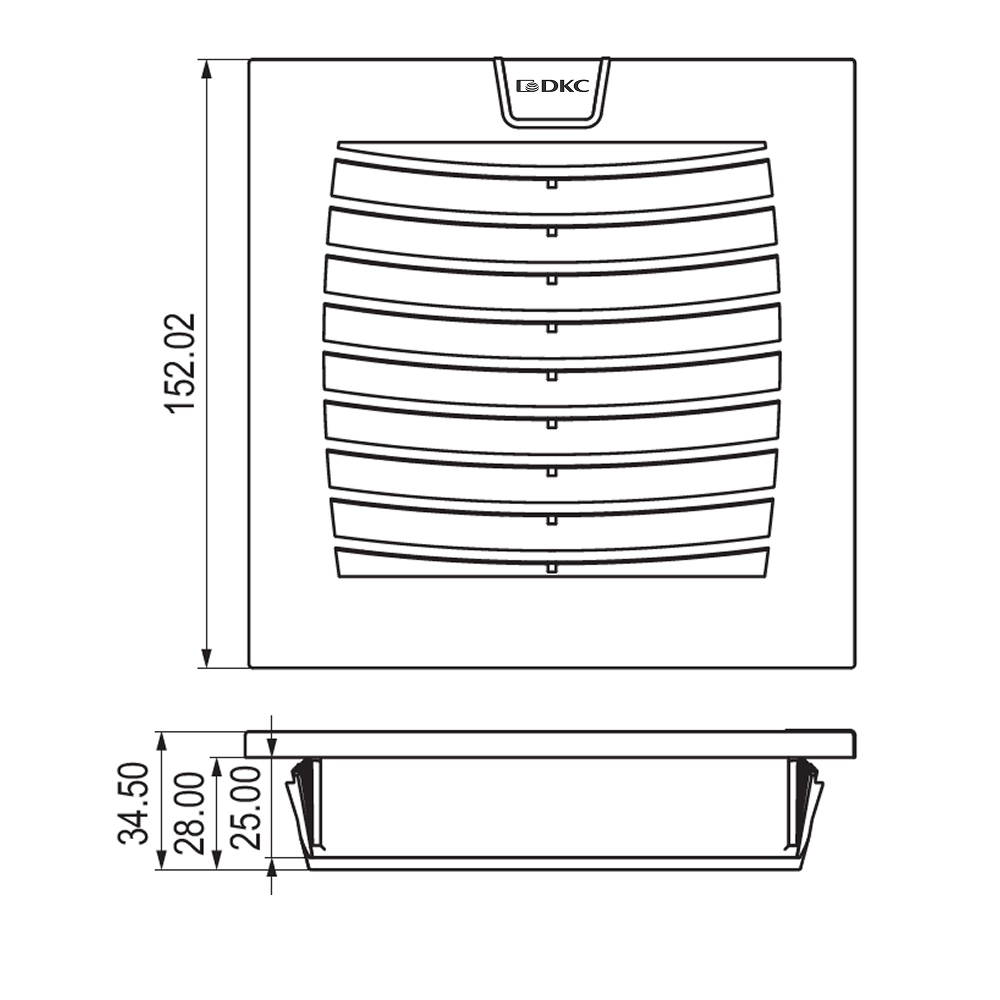

| External dimensions (W x H x D) | 152 x 152 x 72,5 mm |

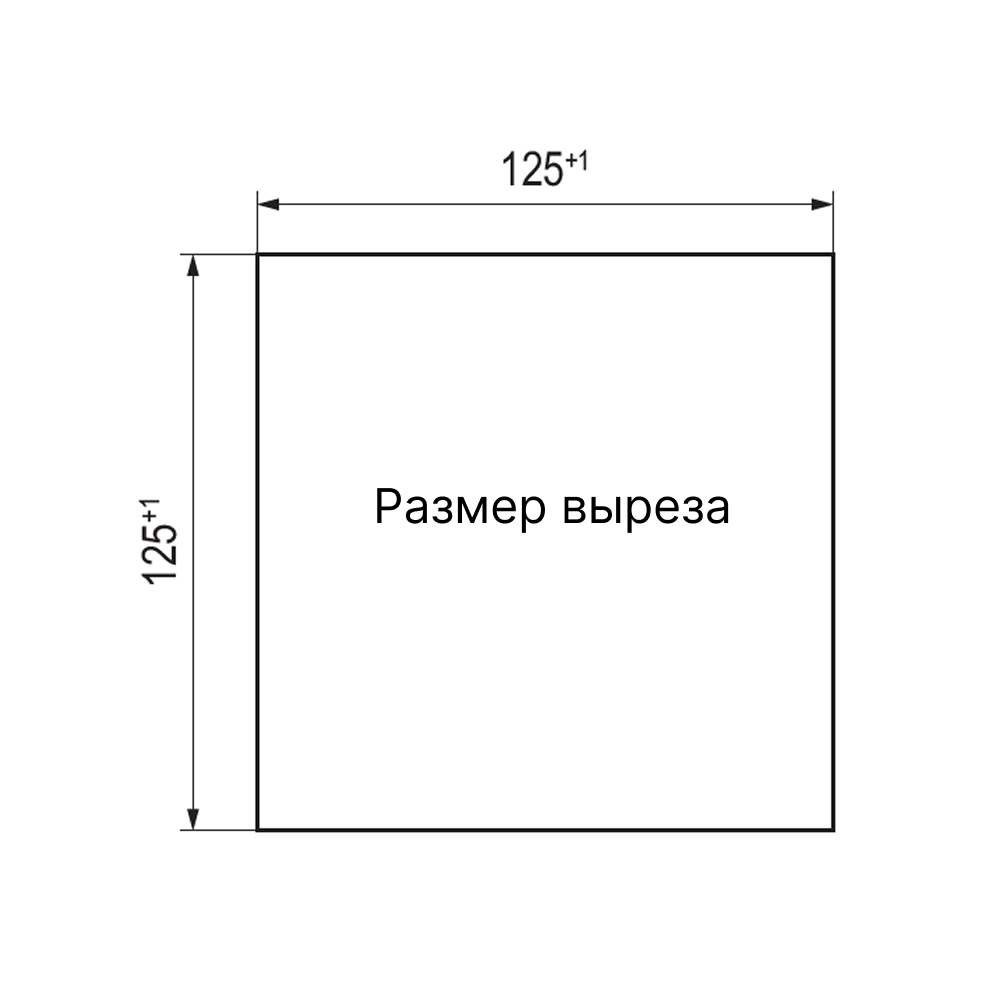

| Required mounting cut-out (W x H) | 125 x 125 mm |
| Degree of protection | IP54 |
| Material | ABS plastic |
| Operating temperature range | –25...+65 ˚C |
| Storage temperature range | –40...+70 ˚C |
| Humidity range | Not more than 90 % (without condensation) |
| Noise level | 48 dB(A) |
| Operating current | 0,18/0,12 А |
| 3 кВА (максимальный входной ток 13,6 А) | 19 W |
| air flow without filter | 138 m3/h |
| air flow with filter | 100 m3/h |
| Fan speed | 2700 rpm./min. |
| Service life (MTBF) | 50000 h |
| Filter class | G4 |
| Color | RAL 7035, light grey |
| Type of contactors | 152 x 152 mm |
