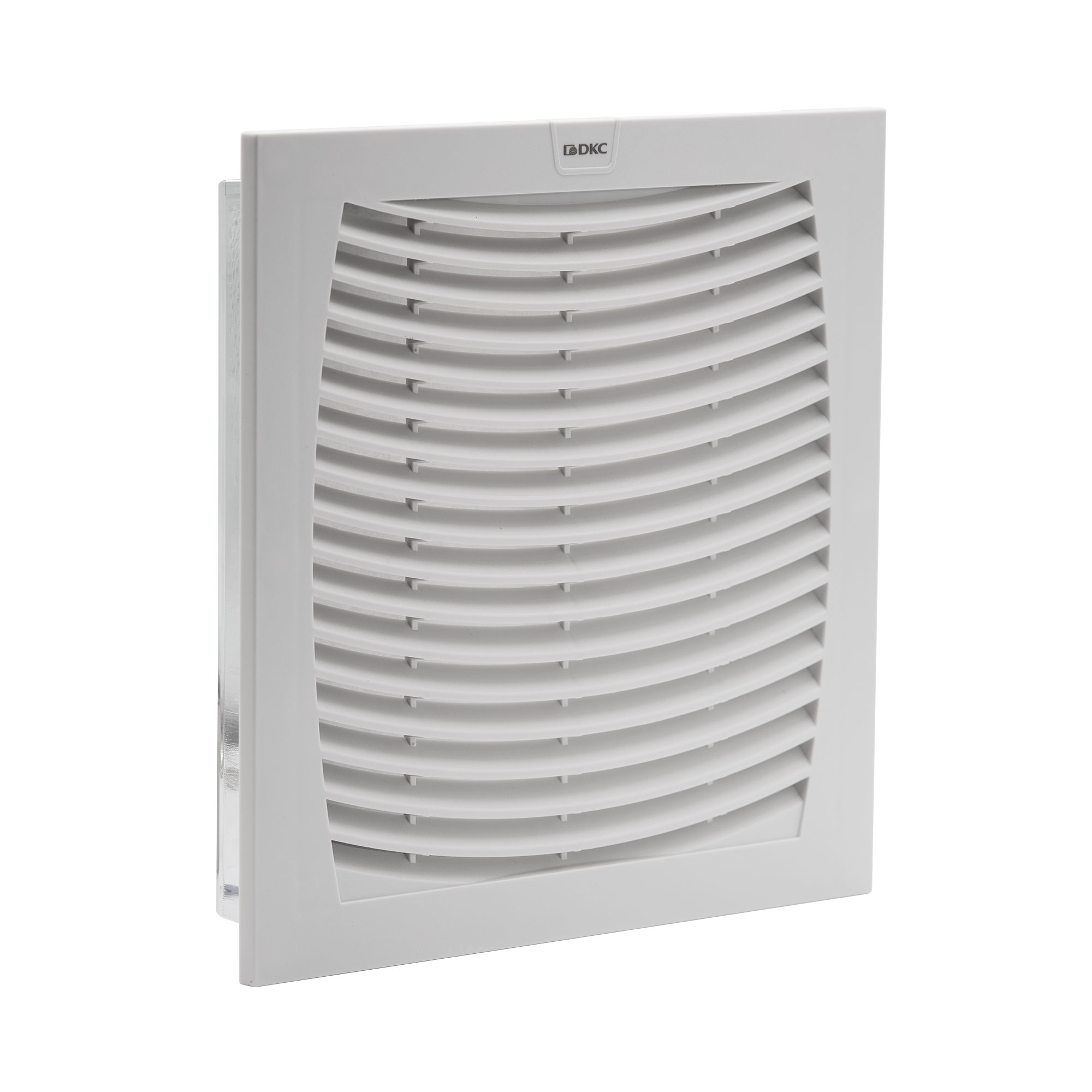

Ventilation grille with filter EMC 255х255 mm, IP54

Code: R5MCF25
Code: R5MCF25
  • To ask a question
Mounting method Snap mounting
Width, mm 255
Height, mm 255
Suitable for enclosure building width, mm 230
Suitable for enclosure building depth, mm 28
Suitable for 19 inch rack mounting No
For max. number of fans 1
With built-in filter Yes
Material Plastic
Degree of protection (IP) IP54
Surface finishing Brushed/grinded
Suitable for 10 inch mounting No
Product type Ventilation grille
Mounting type Wall-mounted
EMC-version Yes

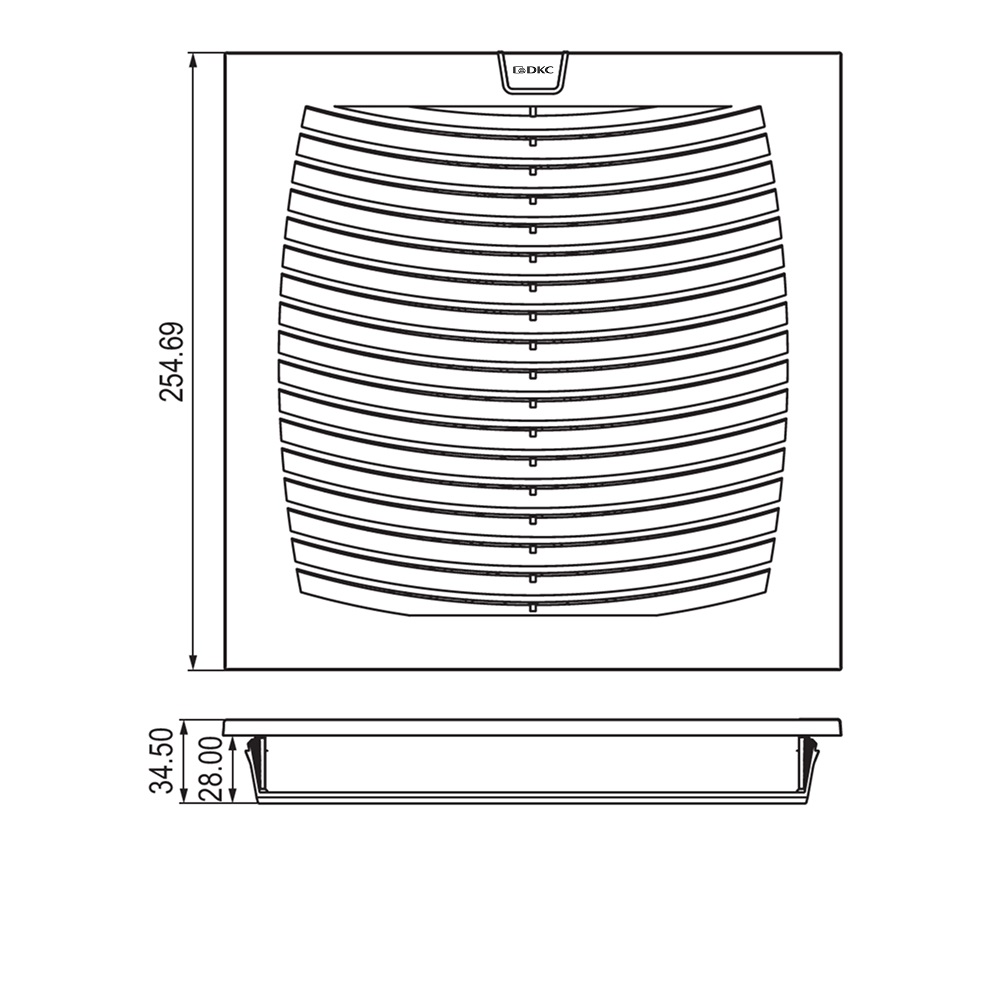

External dimensions (W x H x D) 255 x 255 x 28 mm

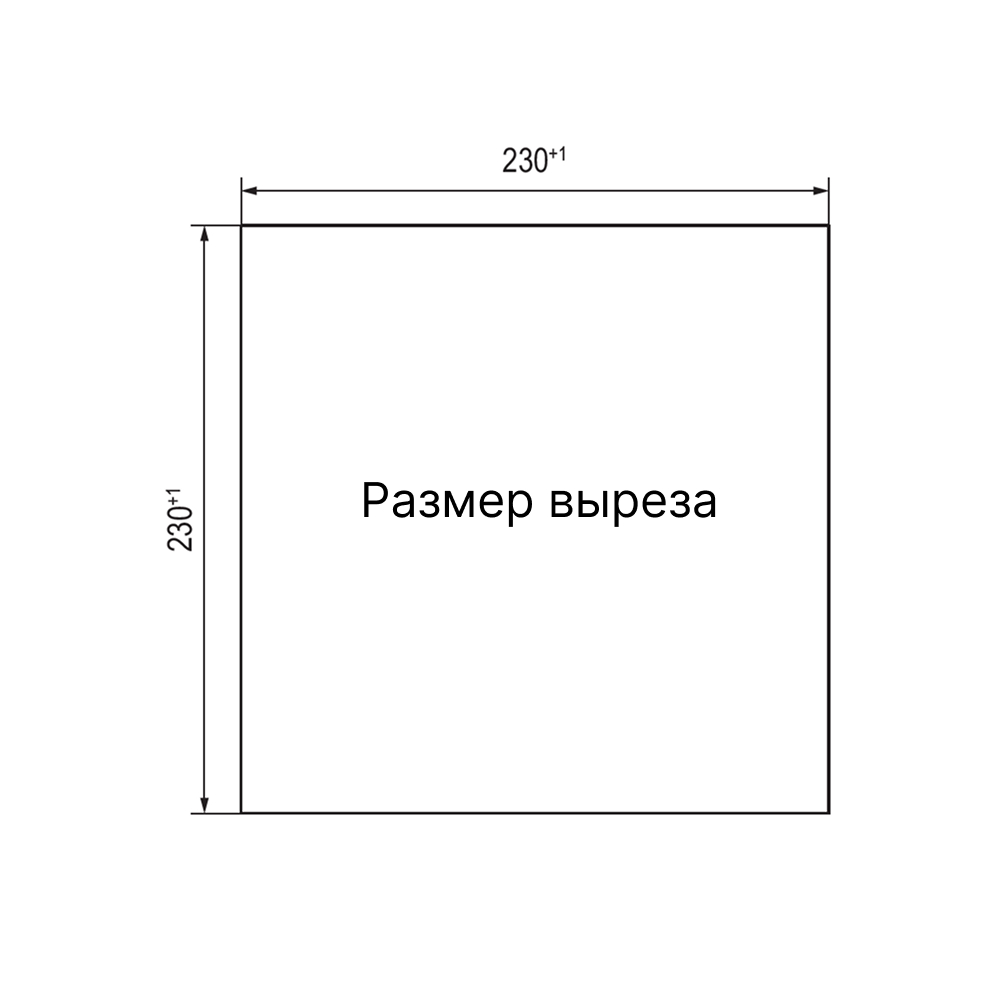

Required mounting cut-out (W x H) 230 x 230 mm
Degree of protection IP54
Material ABS plastic
Operating temperature range –25...+65 ˚C
Storage temperature range –40...+70 ˚C
Humidity range Not more than 90 % (without condensation)
Service life (MTBF) 50000 h
Filter class G4
Color RAL 7035, light grey
