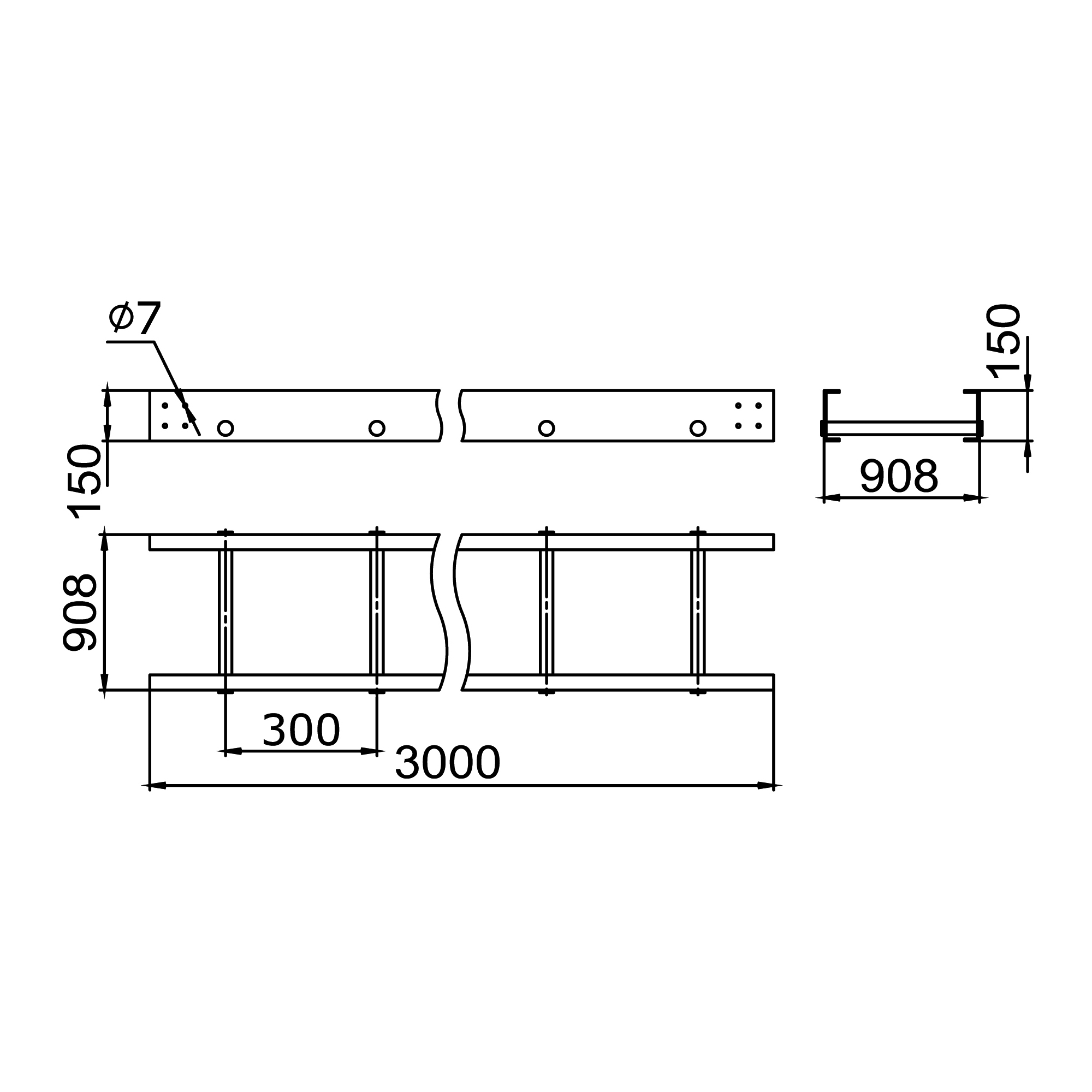

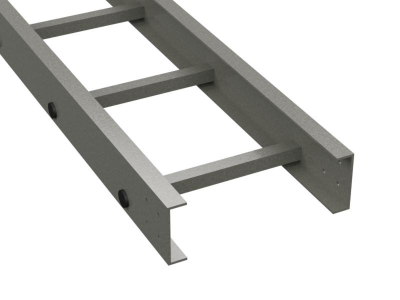

St. cable ladder 150x900, Thick. 4mm, GRP

Code: GLL31590R
St. cable ladder 150x900, Thick. 4mm, GRP
St. cable ladder 150x900, Thick. 4mm, GRP
Colour Light grey
Width, mm 900
Height, mm 150
Surface protection Other
Type of rung Perforated profile
Side wall perforation Yes
Material quality GRP
Material Other
Useful cross section, mm² 117000
Stainless steel, pickled No
Wide span model No
Type of side joist Profile (open)
Rung dual spacing, mm 300
Fixation rung Fully revited
Material Fiberglass
Drawings
Seria Name Autodesk Revit DWG (dynamic blocks)
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
11.67 MB
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
19.21 MB
Certificates
Name Document
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"
PDF
907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)
PDF
730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"
PDF
506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system
PDF
331.97 kB
