St. cable ladder 150x500, Thick. 4mm, GRP

Code: GLL31550R
Colour Light grey
Width, mm 500
Height, mm 150
Surface protection Other
Type of rung Perforated profile
Side wall perforation Yes
Material quality GRP
Material Other
Useful cross section, mm² 65000
Stainless steel, pickled No
Wide span model No
Type of side joist Profile (open)
Rung dual spacing, mm 300
Fixation rung Fully revited
Material Fiberglass

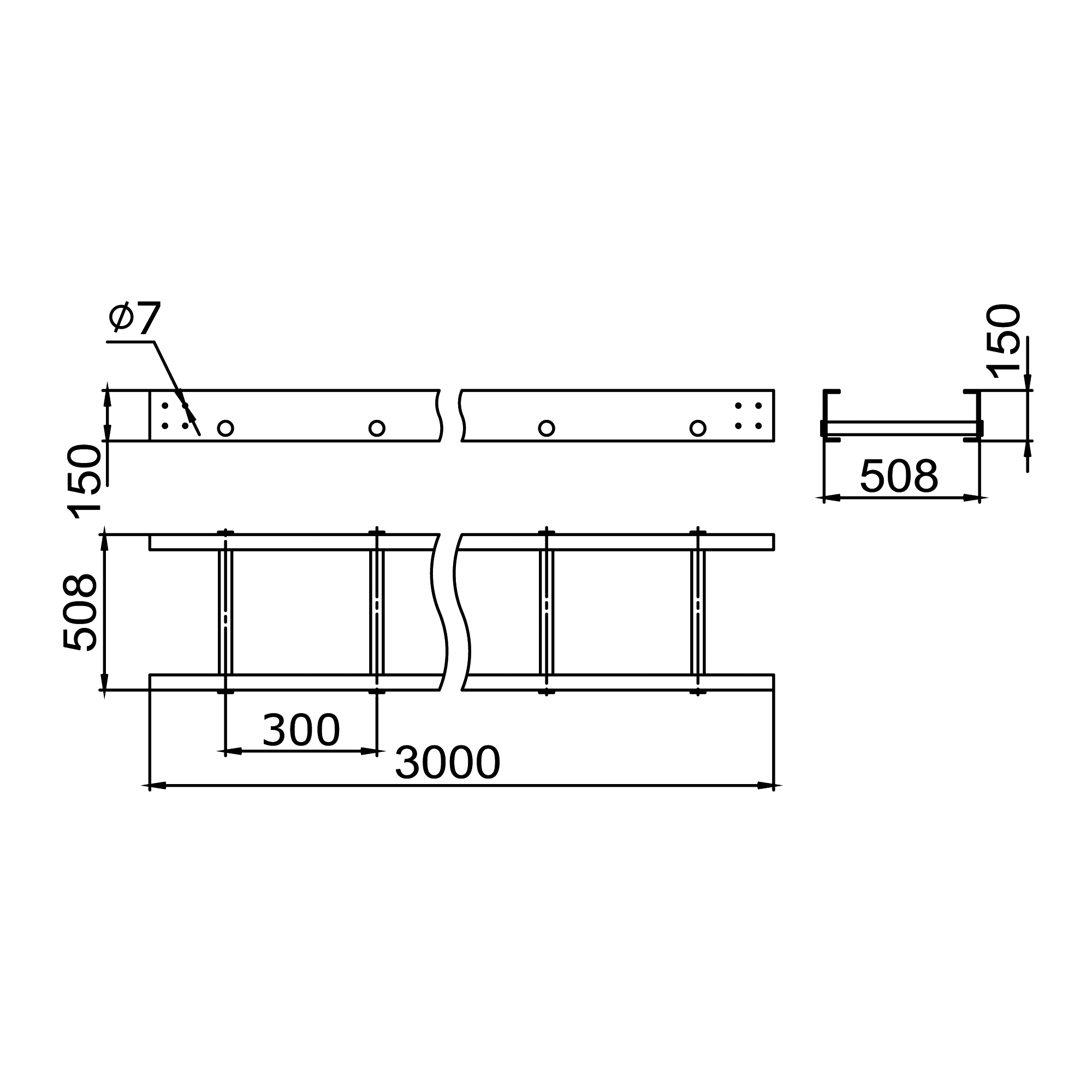

Drawings
Seria Name Autodesk Revit DWG (dynamic blocks)
G5 Combitech - fiberglass trays
G5 Combitech - fiberglass trays
