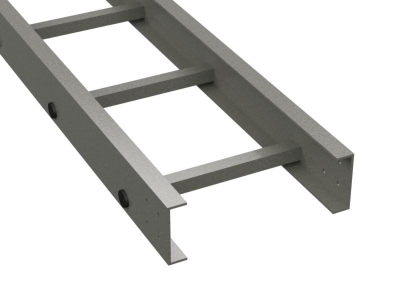

GRP St. cable ladder 900x100, Thick. 4mm

Code: GLL31090
Colour Light grey
Width, mm 900
Height, mm 100
Surface protection Other
Type of rung Perforated profile
Side wall perforation Yes
Material quality GRP
Material Other
Useful cross section, mm2 72000
Stainless steel, pickled No
Wide span model No
Type of side joist Profile (open)
Rung dual spacing, mm 300
Fixation rung Fully revited
Accessories
Divider 100
Code: GEP30010
Cover 900 L 3000, GRP
Code: GKS30090
Cover Cross 900x100, GRP
Code: GLX90090
Cover Tee 900x100, GRP
Code: GLT90090
Cover fixing clamp H=100
Code: GCC10000

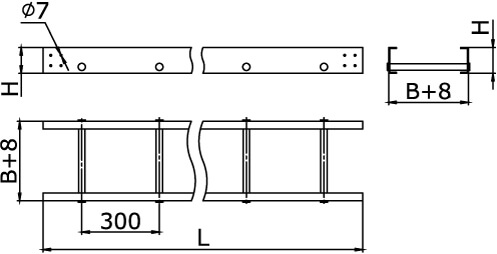

Drawings
Seria Name Autodesk Revit DWG (dynamic blocks)
G5 Combitech - fiberglass trays
G5 Combitech - fiberglass trays
