GRP St. cable ladder 200x100, Thick. 4mm

Code: GLL31020

GRP St. cable ladder 200x100, Thick. 4mm

Code: GLL31020
Removed from the product range . Proposed replacement: GLL31020R
Colour Light grey
Width, mm 200
Height, mm 100
Surface protection Bare
Type of rung Perforated profile
Side wall perforation Yes
Material quality GRP (Glass fiber reinforced plastic)
Material Other
Useful cross section, mm² 16000
Stainless steel, pickled Yes
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 300
Fixation rung Fully revited
Length, mm 3000
Material Fiberglass
Accessories

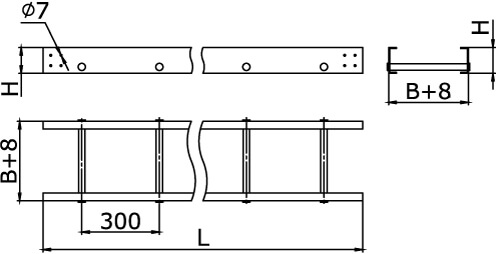

Drawings
Seria Name DWG (dynamic.) Autodesk Revit
Fiberglass trays - " G5 Combitech"
Fiberglass trays - " G5 Combitech"
