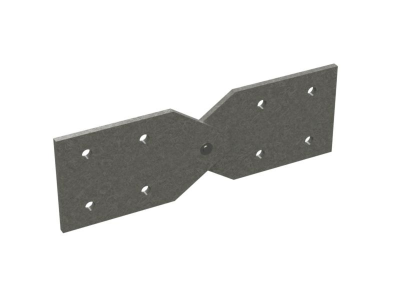

Hinge vertical for flexible riser H=150

Code: GPV01500

To ask a question

Model	Vertical
Material quality	GRP (Glass fiber reinforced plastic)
Material	Steel
Type of fastening	Screw mounting

Plate width, mm	115
Plate height, mm	150
Stainless steel, pickled	No
Surface protection	Bare

Product type	Mounting accessories
Height	150 mm

Material

Fiberglass

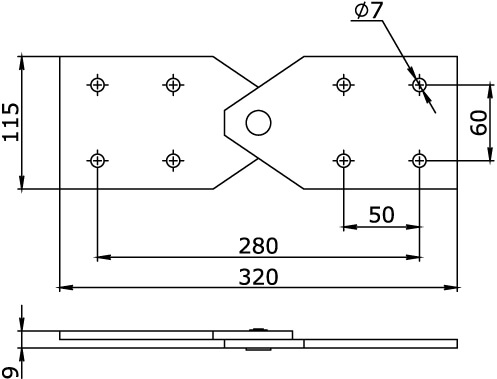

Drawings

Seria	Name	DWG (dynamic.)	Autodesk Revit
Polymer trays "G5/D5 Combitech"	The system of GRP cable trays "G5 Combitech"	ZIP 16.42 Mb
Polymer trays "G5/D5 Combitech"	The system of GRP cable trays "G5 Combitech"		ZIP 11.67 Mb

Certificates

Name	Document
The certificate of conformity for a system of fiberglass trays "G5 Combitech"	PDF 981.94 kB
Fire safety certificate for a system of fiberglass trays "G5 Combitech"	PDF 687.43 kB
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"	PDF 907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)	PDF 730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"	PDF 506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system	PDF 331.97 kB
