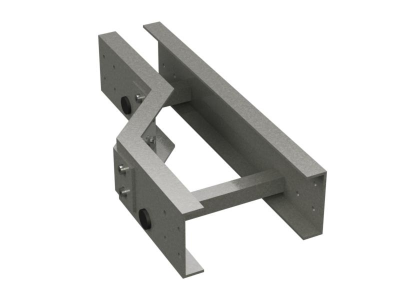

Right reducer H150, 750/500, GRP

Code: GLR15750R
Right reducer H150, 750/500, GRP
Right reducer H150, 750/500, GRP
Colour Light grey
Model Included connector
Surface protection Other
Construction type Reducing to the right
Material quality GRP
Width (big), mm 750
Width (small), mm 500
Material Other
Cable tray height, mm 150
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No

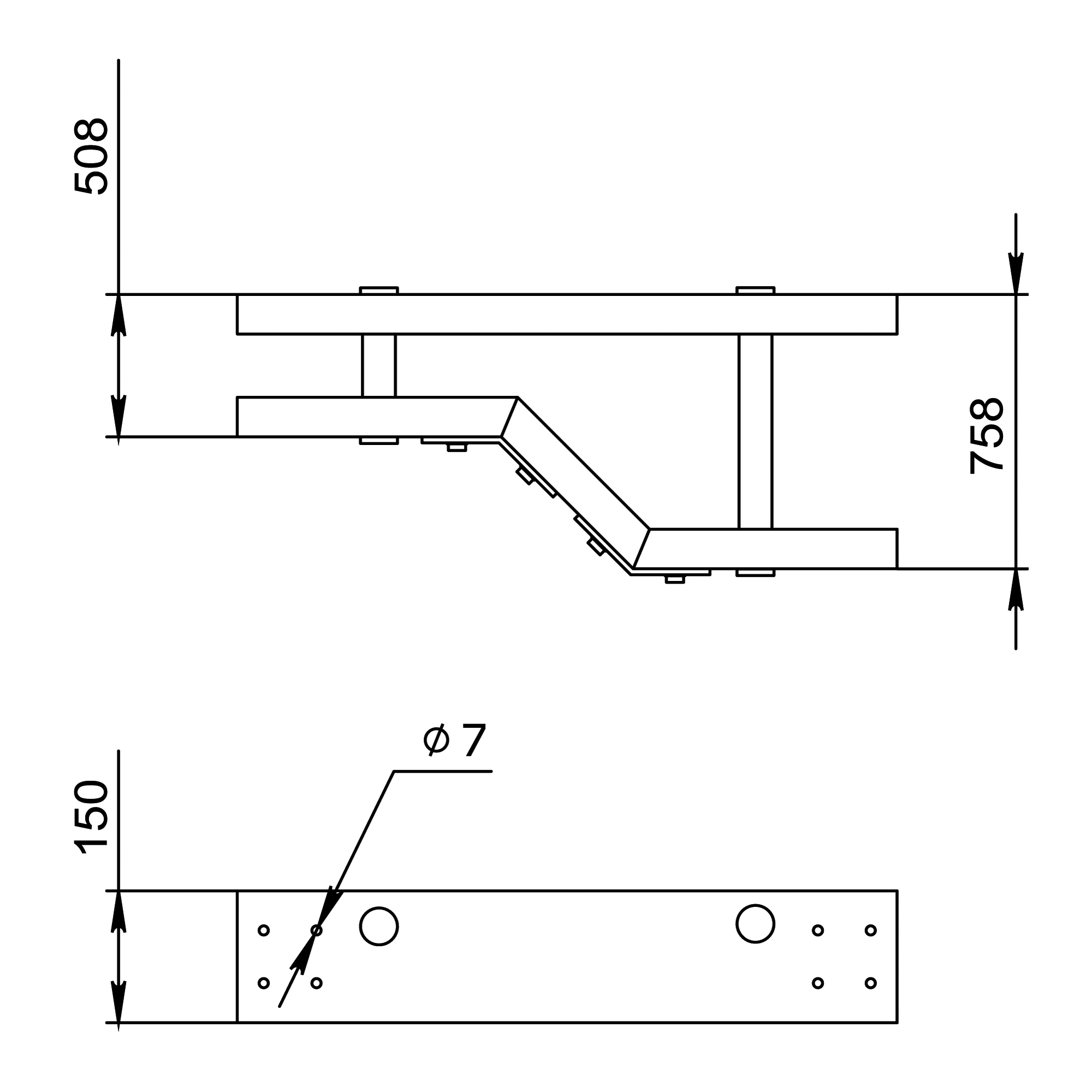

Drawings
Seria Name Autodesk Revit DWG (dynamic blocks)
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
11.67 MB
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
19.21 MB
Certificates
Name Document
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"
PDF
907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)
PDF
730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"
PDF
506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system
PDF
331.97 kB
