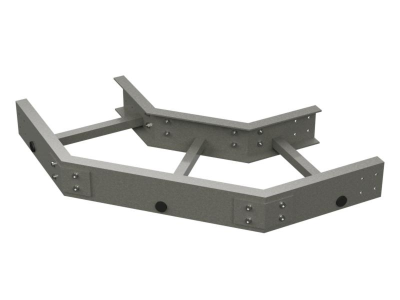

90° Horizontal bend 100х400, GRP

Code: GLG91040
90° Horizontal bend 100х400, GRP
90° Horizontal bend 100х400, GRP

90° Horizontal bend 100х400, GRP

Code: GLG91040
Removed from the product range . Proposed replacement: GLG91040R
Colour Light grey
Surface protection Other
Type of rung Perforated profile
Width branch, mm 400
Material quality GRP (Glass fiber reinforced plastic)
Material Other
Inner radius, mm 300
Stainless steel, pickled No
Wide span model No
Type of side joist Profile (open)
Suitable for circuit integrity No
Height side joist, mm 100

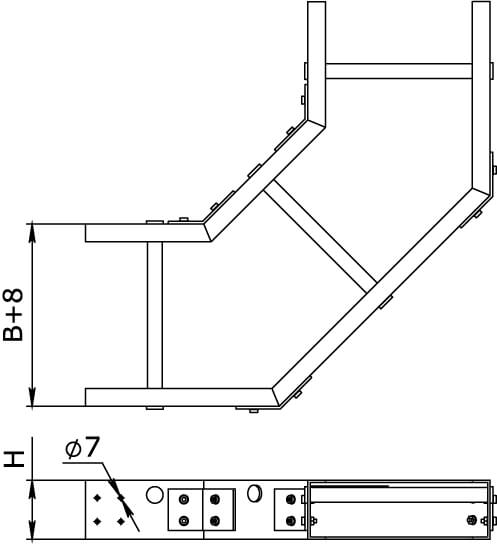

Drawings
Seria Name DWG (dynamic.) Autodesk Revit
Fiberglass trays - " G5 Combitech"
The system of GRP cable trays "G5 Combitech"
ZIP
16.42 Mb
Fiberglass trays - " G5 Combitech"
The system of GRP cable trays "G5 Combitech"
ZIP
11.67 Mb
Certificates
Name Document
The certificate of conformity for a system of fiberglass trays "G5 Combitech"
PDF
981.94 kB
Fire safety certificate for a system of fiberglass trays "G5 Combitech"
PDF
687.43 kB
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"
PDF
907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)
PDF
730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"
PDF
506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system
PDF
331.97 kB
