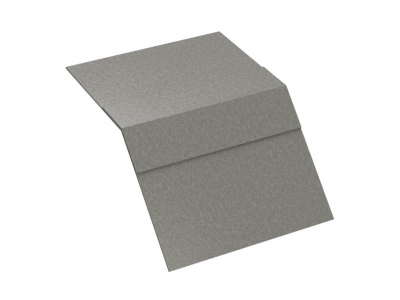

Cover 45°Vertical outside b.150, GRP

Code: GLD40015R
Cover 45°Vertical outside b.150, GRP
Cover 45°Vertical outside b.150, GRP
Colour Light grey
Width, mm 150
Surface protection Other
Deflection (angle) 90°
Hinging No
Material quality GRP
Length, mm 100
Material Other
Type of fastening Snapped on
Suitable for wire mesh tray No
Suitable for cable ladder No
Suitable for cable duct Yes
Stainless steel, pickled No
Suitable for circuit integrity No

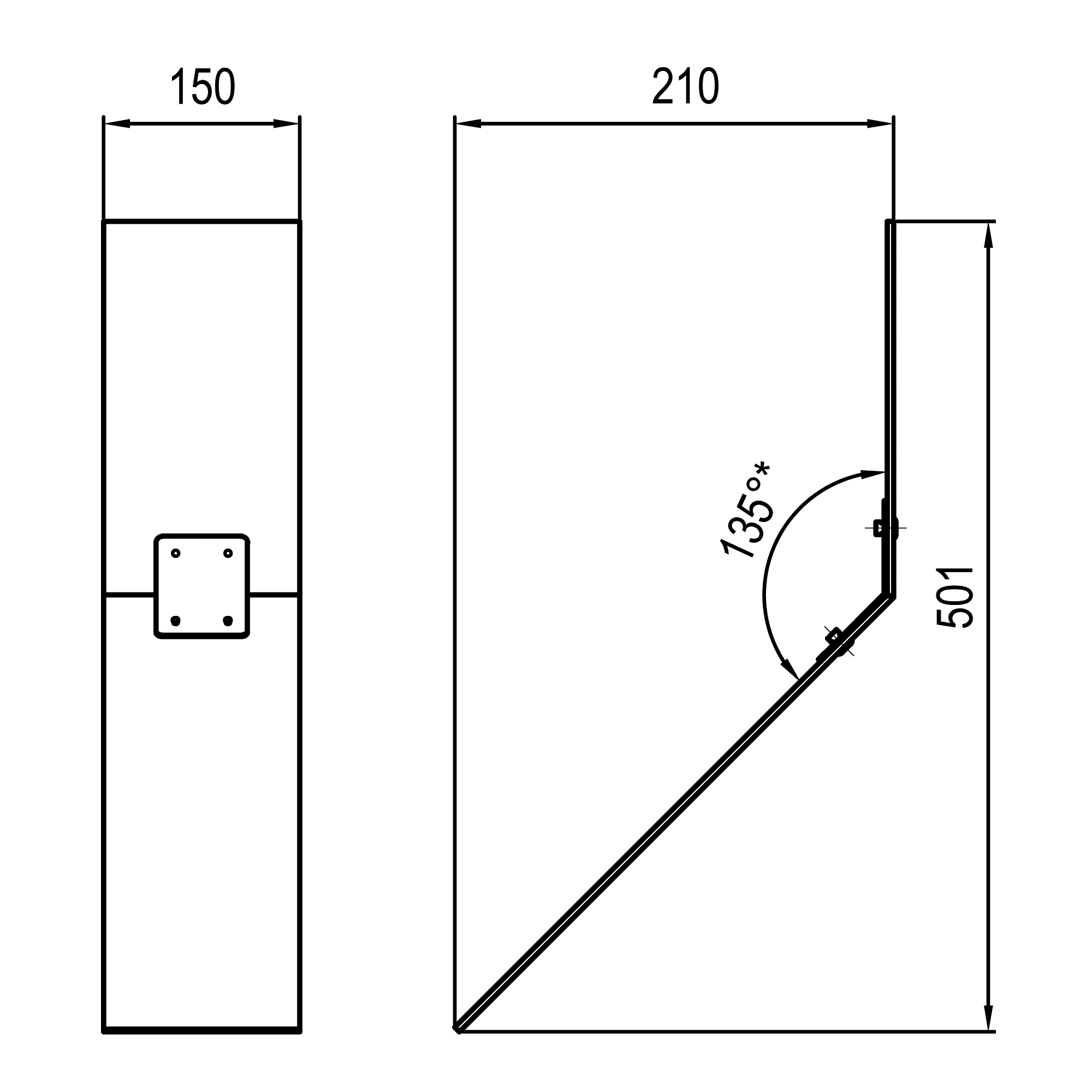

Drawings
Seria Name Autodesk Revit DWG (dynamic blocks)
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
11.67 MB
G5 Combitech - fiberglass trays
The system of GRP cable trays "G5 Combitech"
ZIP
19.21 MB
Certificates
Name Document
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"
PDF
907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)
PDF
730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"
PDF
506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system
PDF
331.97 kB
