| Colour | Light grey |
| Width, mm | 300 |
| Model | Included connector |
| Height, mm | 50 |
| Surface protection | Bare |
| Material thickness, mm | 3 |
| Side wall perforation | Yes |
| Material quality | GRP (Glass fiber reinforced plastic) |
| Length, mm | 3000 |
| Material | GRP (Glass fiber reinforced plastic) |
| Mounting perforation in bottom | Yes |
| Useful cross section, mm² | 15000 |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | Non perforated straight elements |
| Length | 3000 mm |
| Width | 300 mm |
| Height | 50 mm |
| Material | Fiberglass |
| Type | Fiberglass trays - " G5 Combitech" |

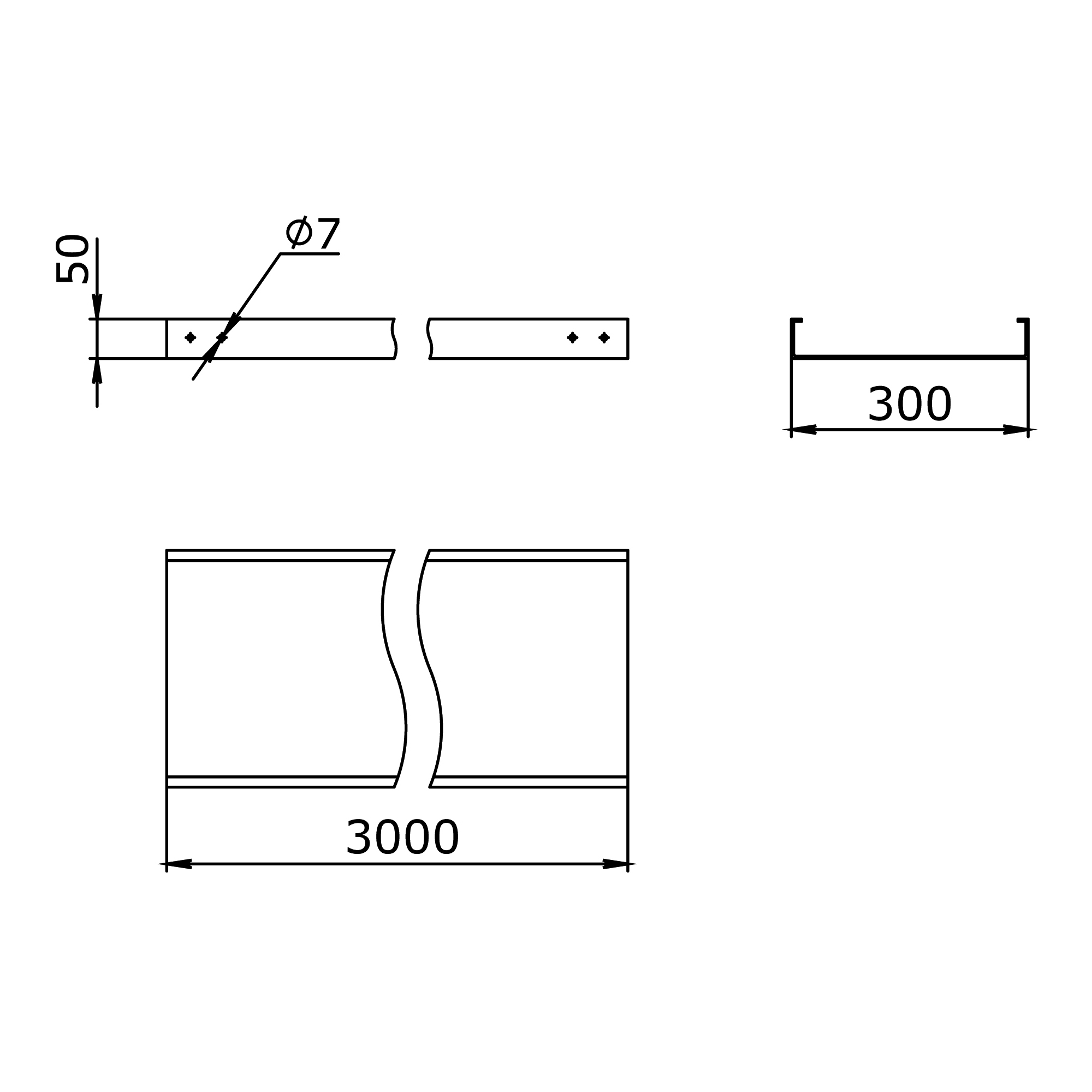

Drawings
| Seria | Name | Autodesk Revit | DWG (dynamic blocks) |
|---|---|---|---|
|
Polymer trays "G5/D5 Combitech"
|
|
||
|
Polymer trays "G5/D5 Combitech"
|
|
Certificates
| Name | Document |
|---|---|
