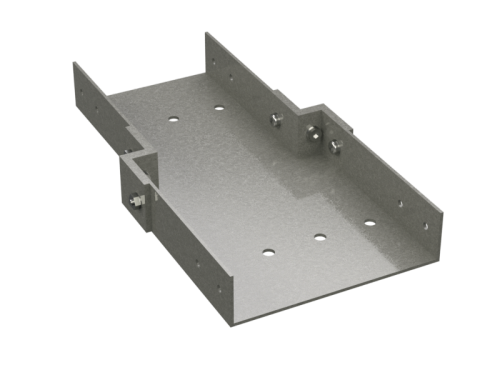

Central reducer 200/150 H=50, GRP

Code: GRC52015
Central reducer 200/150 H=50, GRP
Central reducer 200/150 H=50, GRP

Central reducer 200/150 H=50, GRP

Code: GRC52015
Removed from the product range . Proposed replacement: GRC52015R
Colour Light grey
Model Without connector
Construction type Reducing symmetrical
Material quality GRP (Glass fiber reinforced plastic)
Width (big), mm 200
Width (small), mm 150
Material Plastic
Cable tray height, mm 50
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes

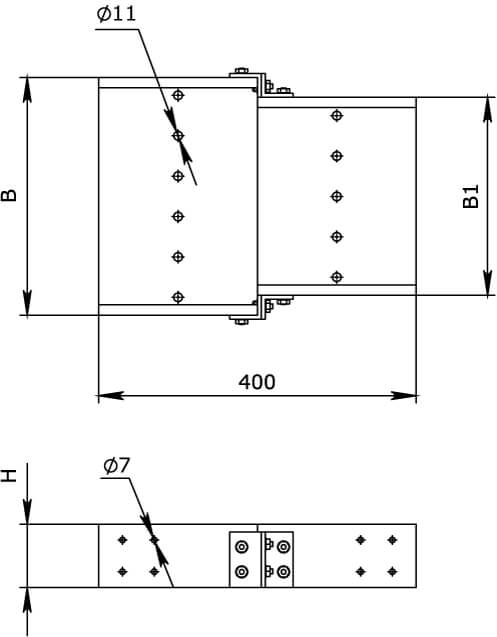

Drawings
Seria Name DWG (dynamic.) Autodesk Revit
Fiberglass trays - " G5 Combitech"
The system of GRP cable trays "G5 Combitech"
ZIP
16.42 Mb
Fiberglass trays - " G5 Combitech"
The system of GRP cable trays "G5 Combitech"
ZIP
11.67 Mb
Certificates
Name Document
The certificate of conformity for a system of fiberglass trays "G5 Combitech"
PDF
981.94 kB
Fire safety certificate for a system of fiberglass trays "G5 Combitech"
PDF
687.43 kB
Certificate of conformity to seismic impact resistance for system of cable trays "G5 Combitech" and fastening system "M5 Combitech"
PDF
907.21 kB
Certificate of conformity for fiberglass tray system "G5 Combitech" (TU 049)
PDF
730.70 kB
Certificate of conformity to seismic resistance for fiberglass tray system "G5 Combitech"
PDF
506.02 kB
Certificate of conformity to fire safety to GOST R 53313-2009 for the Fiberglass tray system
PDF
331.97 kB
