90° Horizontal bend 200х50, GRP
Code: GCG90520
90° Horizontal bend 200х50, GRP
Code: GCG90520
| Colour | Light grey |
| Model | Integrated connector |
| Surface protection | Bare |
| Material thickness, mm | 3 |
| Deflection (angle) | 90° |
| Side wall perforation | Yes |
| Material quality | GRP (Glass fiber reinforced plastic) |
| Material | Plastic |
| Mounting perforation in bottom | Yes |
| Inner radius, mm | 300 |
| Cable tray width, mm | 200 |
| Cable tray height, mm | 50 |
| Change of direction | Horizontal |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |

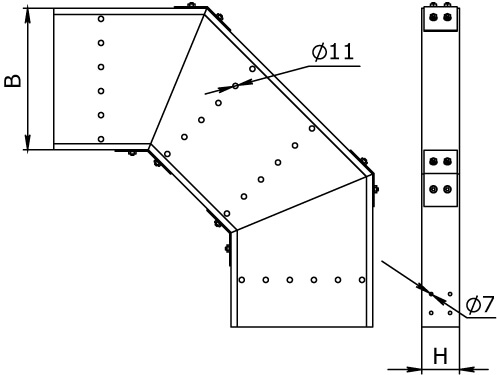

Drawings
| Seria | Name | DWG (dynamic.) | Autodesk Revit |
|---|---|---|---|
|
Fiberglass trays - " G5 Combitech"
|
|
||
|
Fiberglass trays - " G5 Combitech"
|
|
Certificates
| Name | Document |
|---|---|
