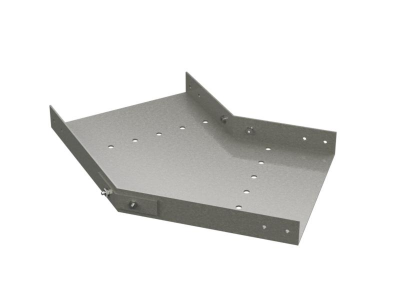

45° Horizontal bend 200х50, GRP

Code: GCG40520
45° Horizontal bend 200х50, GRP
45° Horizontal bend 200х50, GRP
Code: GCG40520
Removed from the product range . Proposed replacement: GCG40520N
  • To ask a question
  • Characteristics
  • Analogs

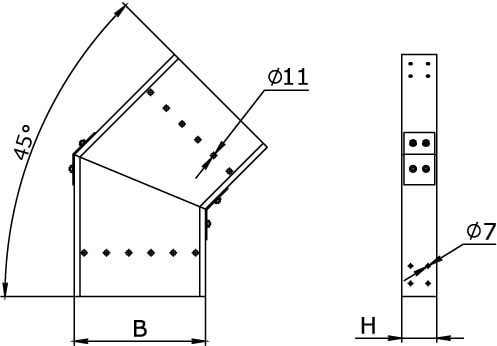

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Integrated connector
Material thickness, mm 3
Deflection (angle) 45°
Side wall perforation Yes
Material quality GRP (Glass fiber reinforced plastic)
Material Plastic
Mounting perforation in bottom Yes
Inner radius, mm 300
Cable tray width, mm 200
Cable tray height, mm 50
Change of direction Horizontal
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
